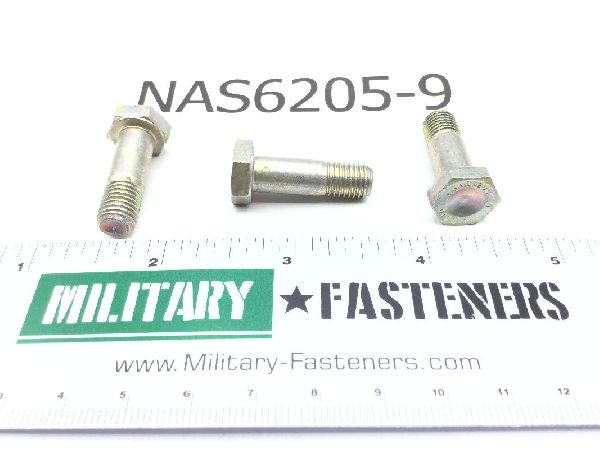

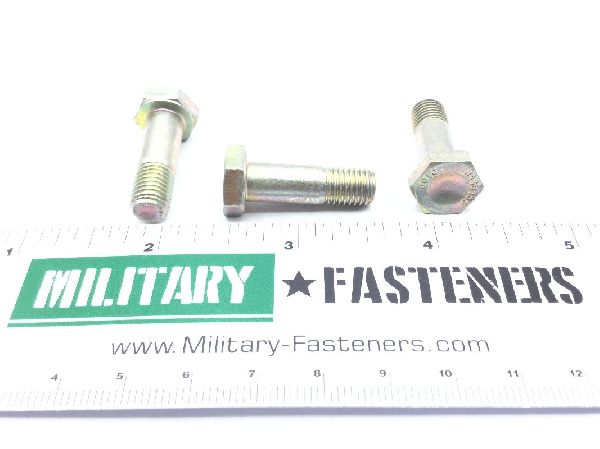

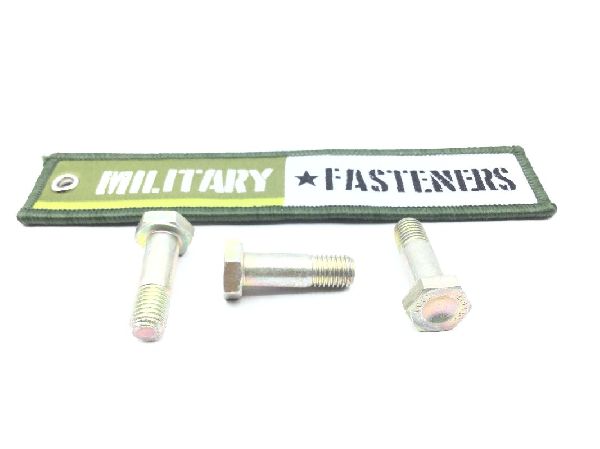

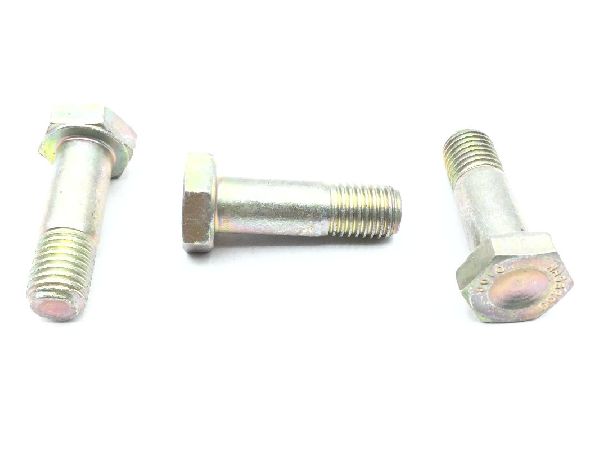

NAS6205-9 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.75

Units per Pack 20

Price per Pack $55.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $55.00

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4340 or steel comp 8740

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.985 inches and 1.015 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.552 inches and 0.572 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.156 inches and 0.171 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6205 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.413 inches and 0.463 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
