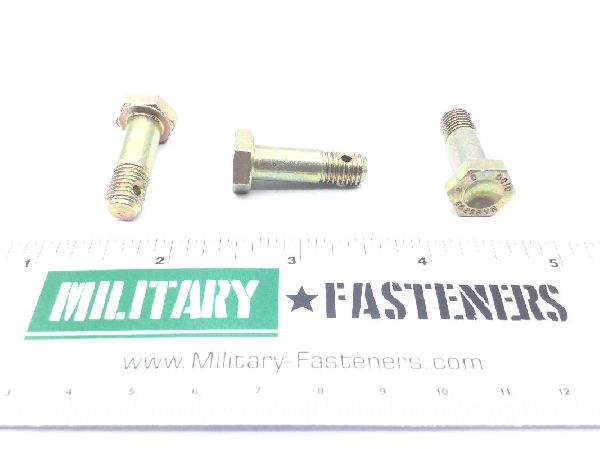

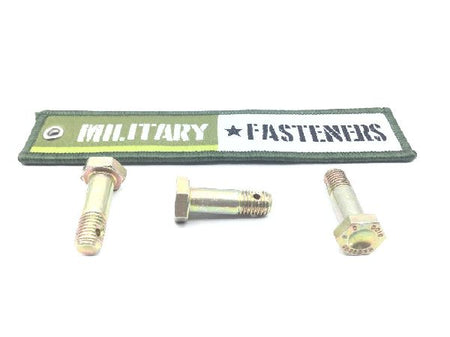

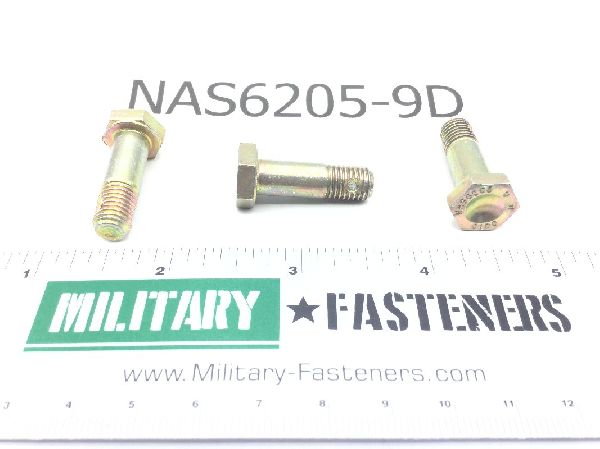

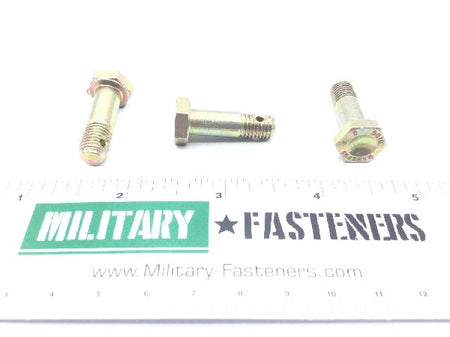

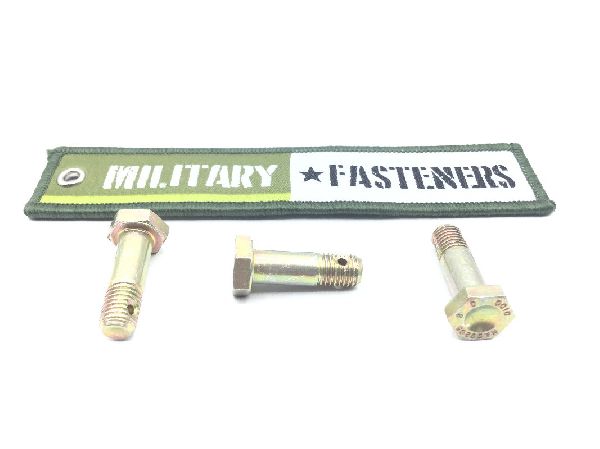

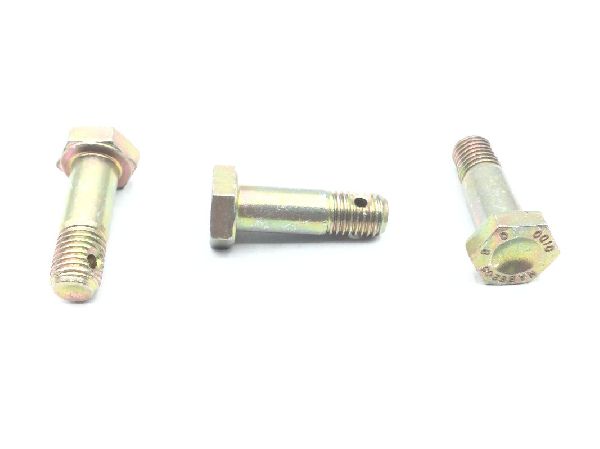

NAS6205-9D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.793 inches first hole and 0.843 inches first hole
Fastener Length: Between 0.985 inches and 1.015 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.552 inches and 0.572 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.156 inches and 0.171 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Specification Data: 80205-nas6205 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.413 inches and 0.463 inches
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
