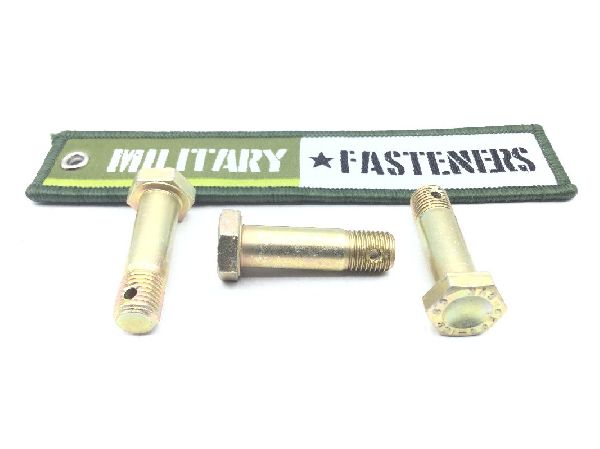

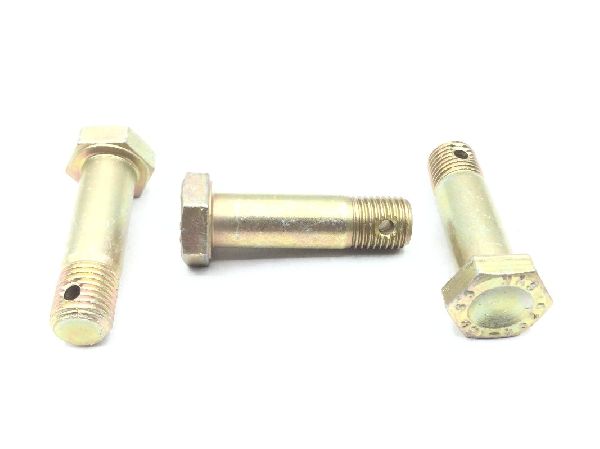

NAS6206-14D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp e4340 and steel comp 8740

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.121 inches first hole and 1.171 inches first hole
Fastener Length: Between 1.314 inches and 1.344 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 0.865 inches and 0.885 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole and 0.116 inches first hole
Specification Data: 80205-nas6207 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.454 inches
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
