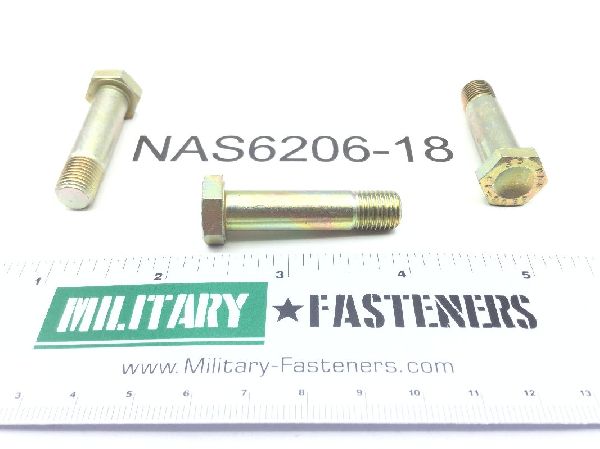

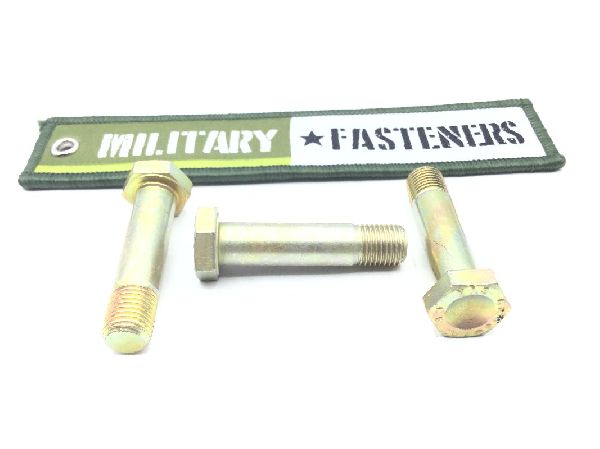

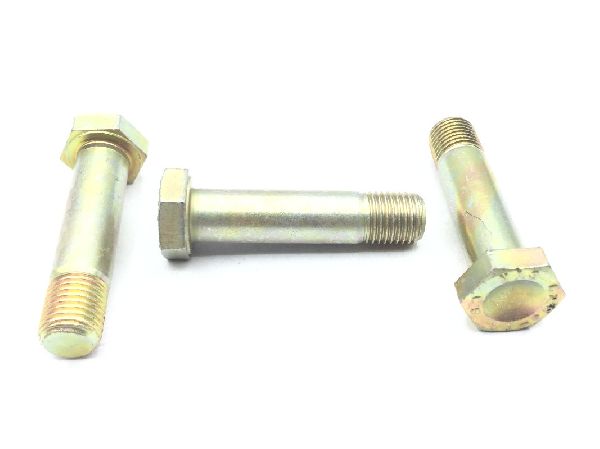

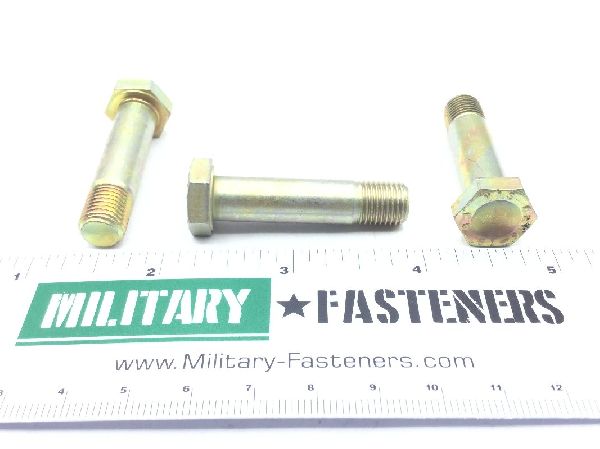

NAS6206-18 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $7.62

Units per Pack 5

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Class 2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 1.564 inches and 1.594 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 1.115 inches and 1.135 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6206 professional/industrial association specification
Surface Finish: 125.0 microinches top of head
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.454 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
