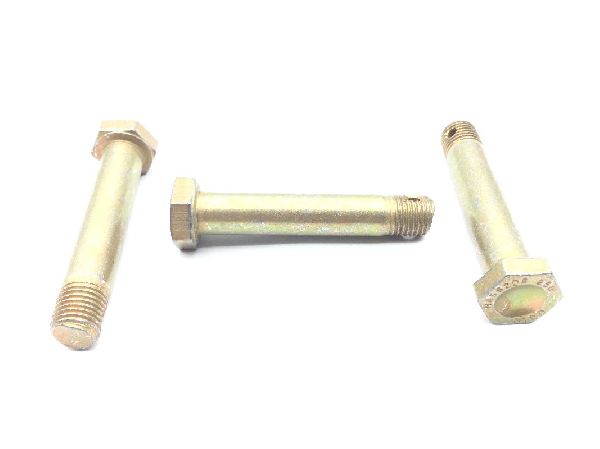

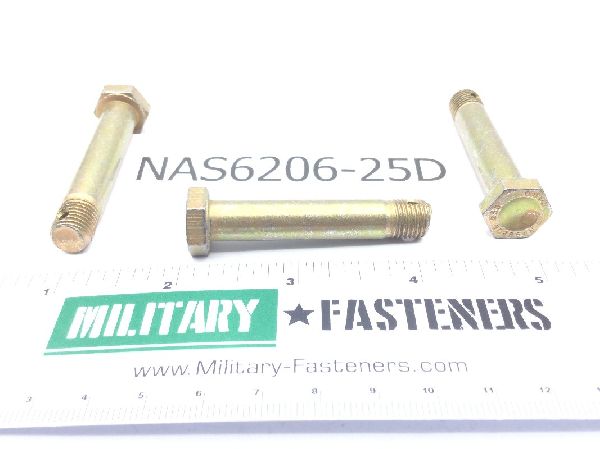

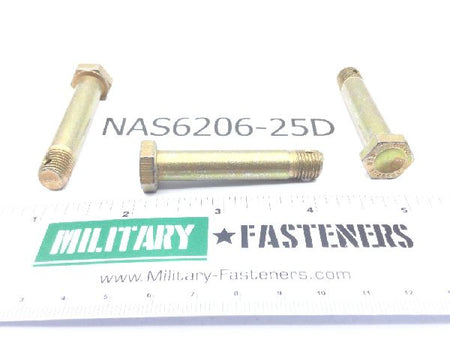

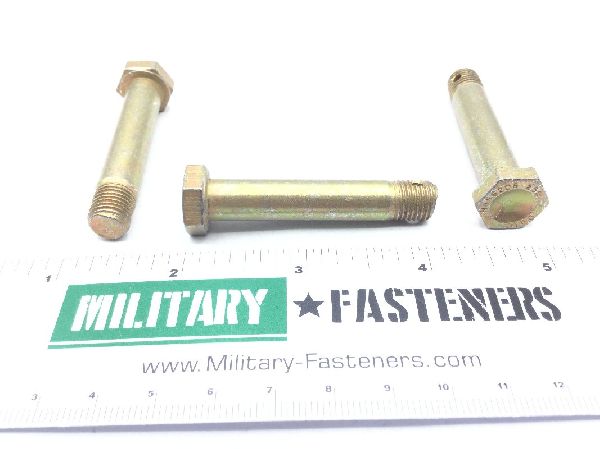

NAS6206-25D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $33.60

Units per Pack 2

Price per Pack $67.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $67.20

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.808 inches and 1.858 inches first hole
Fastener Length: Between 2.001 inches and 2.031 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 1.552 inches and 1.572 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches and 0.116 inches first hole
Specification Data: 80205-nas6206 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.429 inches and 0.479 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
