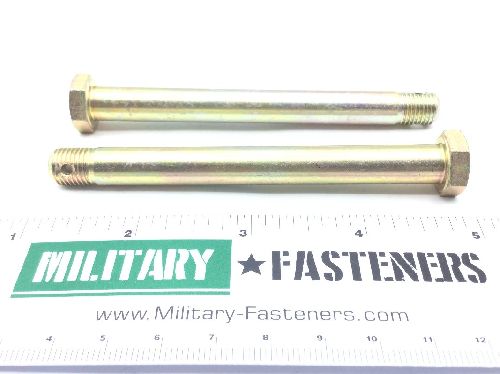

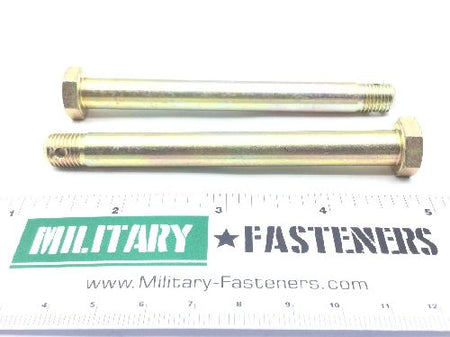

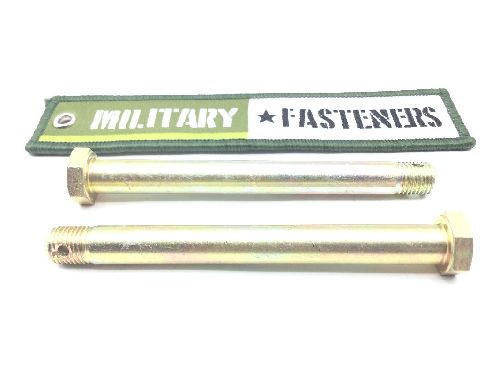

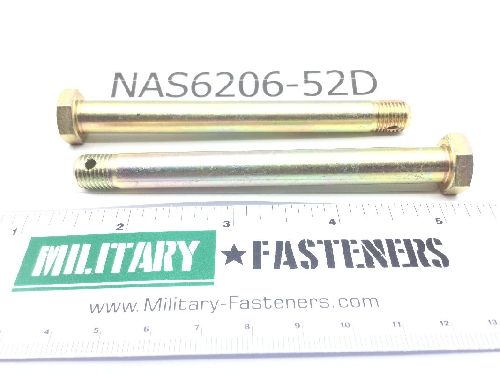

NAS6206-52D Shear Bolt

NSN: 5306-01-176-8335
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $39.90

Units per Pack 2

Price per Pack $79.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $79.80

Add item to quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Class 2 military specification single treatment response type 2 qq-p-416

Thread Class

Thread Quantity Per Inch (tpi)

Distance From Head Largest Bearing Surface To Shank Hole Center: 3.521 inches first hole
Fastener Length: Between 3.689 inches and 3.719 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 3.240 inches and 3.260 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: 4340 or e4340 military specification single material response mil-s-5000
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole and 0.116 inches first hole
Specification Data: 80205-nas6206 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.454 inches
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
