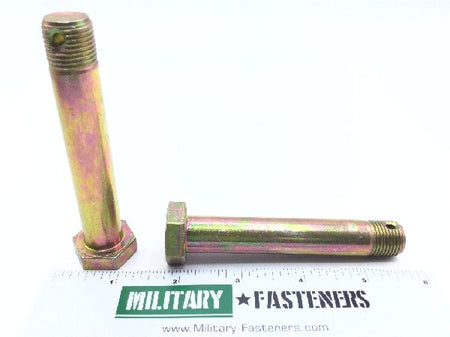

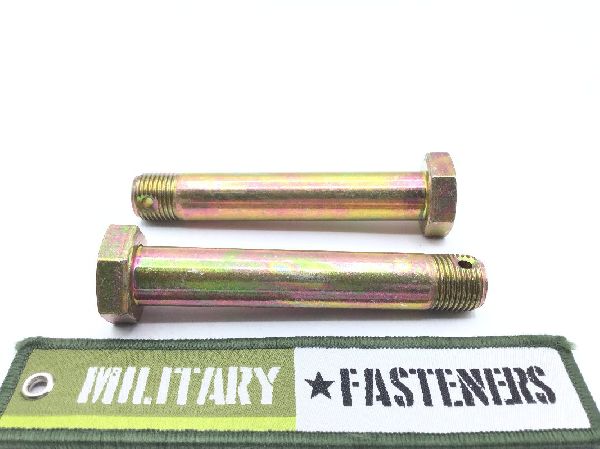

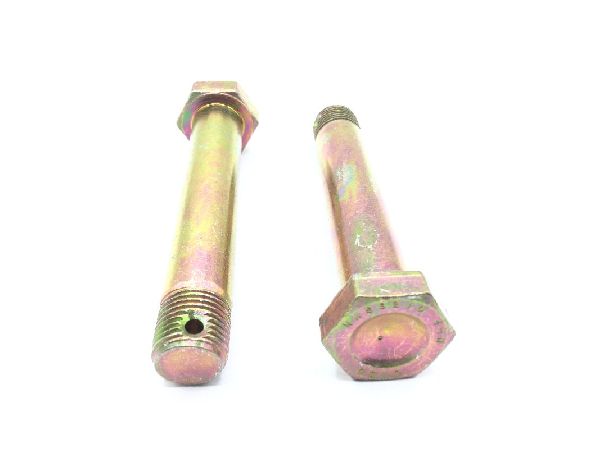

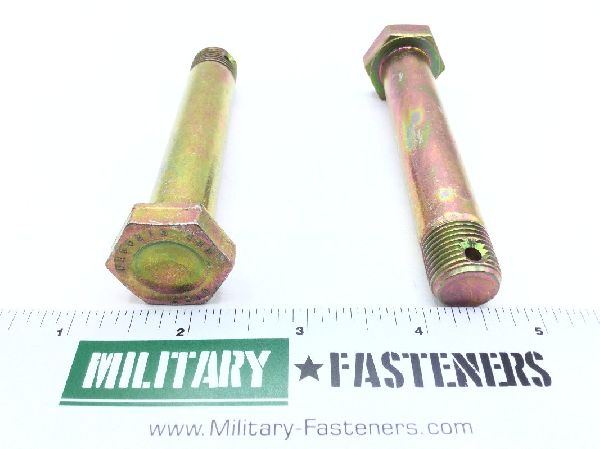

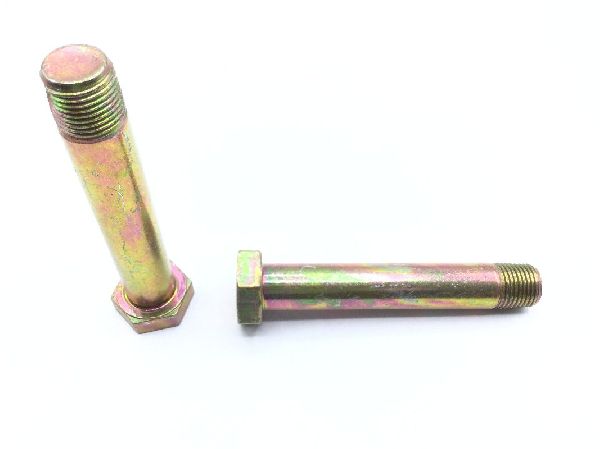

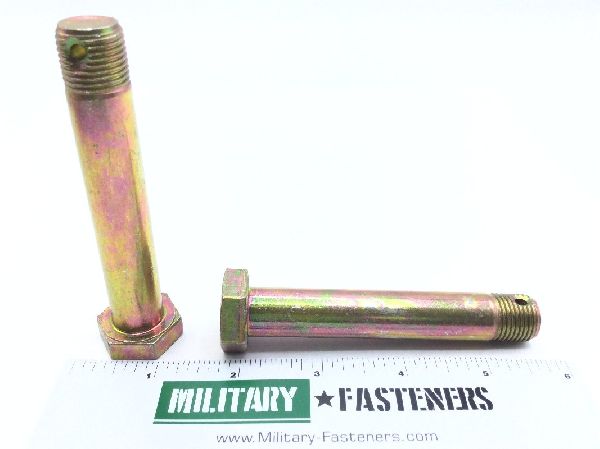

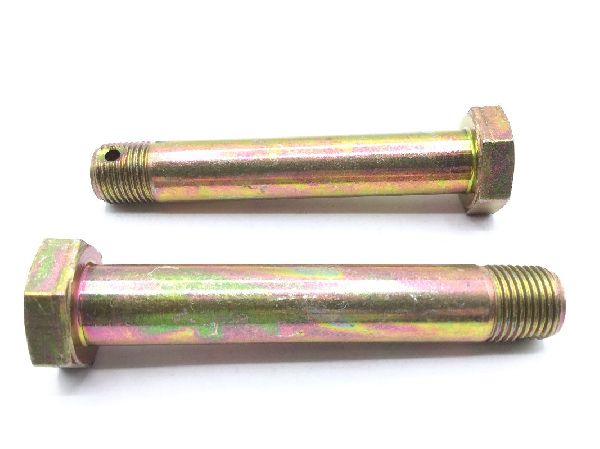

NAS6210-48D Close Tolerance Bolt

NSN: 5306-01-098-7209
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $25.20

Units per Pack 2

Price per Pack $50.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $50.40

Add item to quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 3.394 inches first hole and 3.444 inches first hole
Fastener Length: Between 3.611 inches and 3.641 inches
Grip Diameter: Between 0.6230 inches and 0.6240 inches
Grip Length: Between 2.990 inches and 3.010 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.312 inches and 0.327 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.141 inches first hole and 0.151 inches first hole
Specification Data: 80205-nas6210 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: Between 0.601 inches and 0.651 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.928 inches and 0.940 inches
