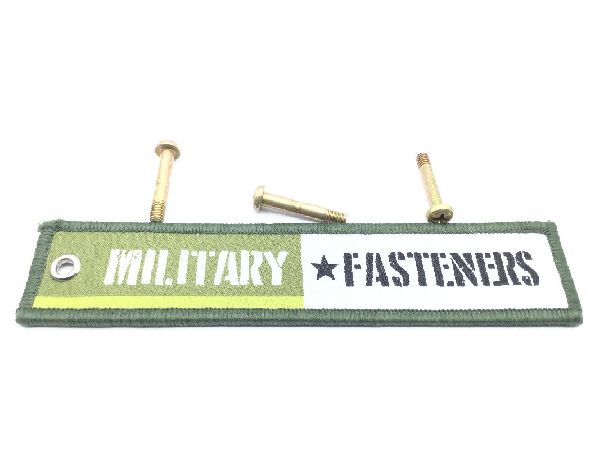

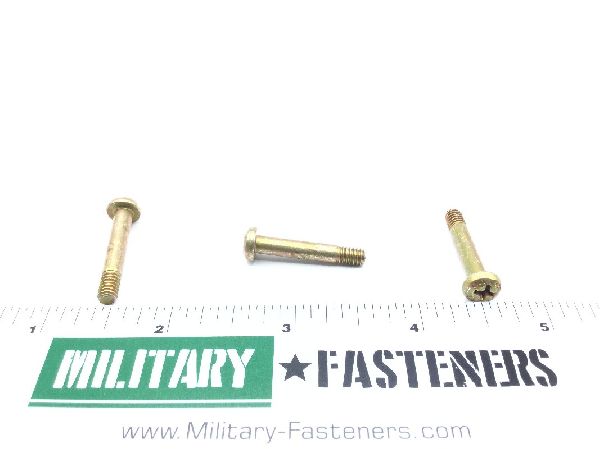

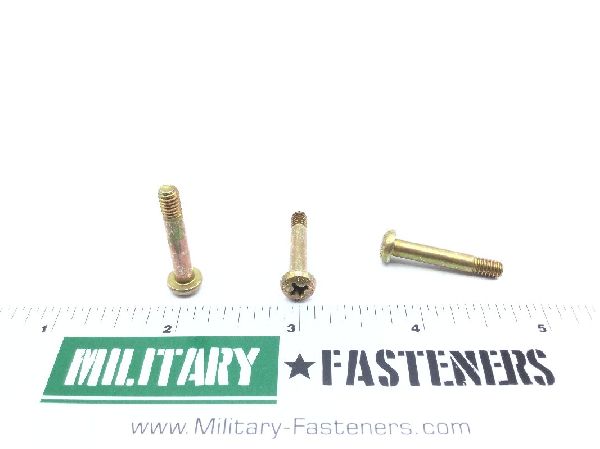

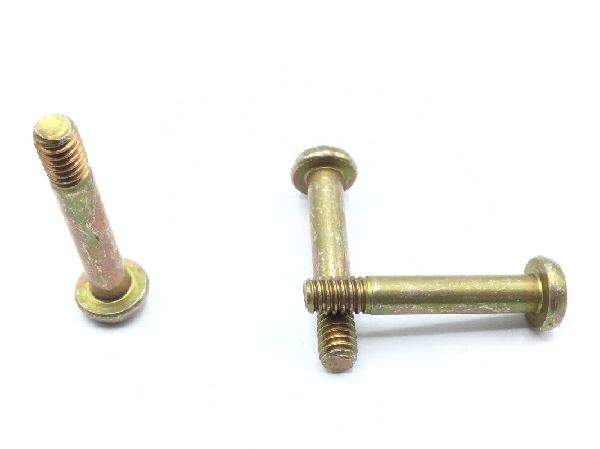

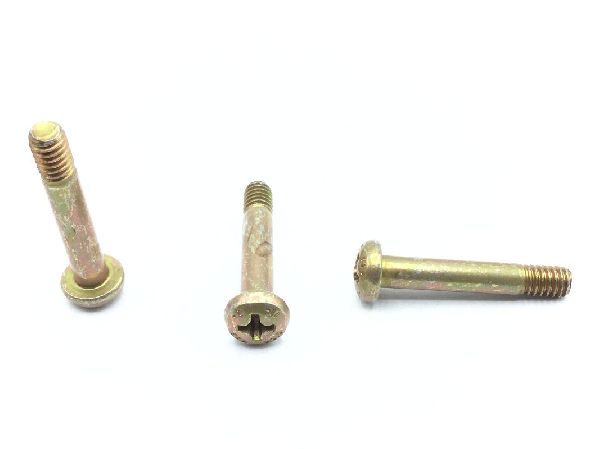

NAS623-2-11 Machine Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.9000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 0.949 inches and 0.979 inches
- Hardness Rating
- Between 36.0 rockwell c and 40.0 rockwell c
- Head Height
- Between 0.105 inches and 0.115 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Screw Material
- Steel comp 4140 or steel comp e4340 or steel comp 8740
- Screw Material Specification
- Mil-s-5626 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response
- Screw Surface Treatment
- Cadmium and chromate
- Screw Surface Treatment Specification
- Qq-p-416 type 2 cl 2 federal specification single treatment response
- Specification Data
- 80205-nas623 professional/industrial association standard
- Thread Diameter
- 0.164 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.251 inches and 0.301 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unjc
- Head Diameter
- Between 0.306 inches and 0.322 inches
