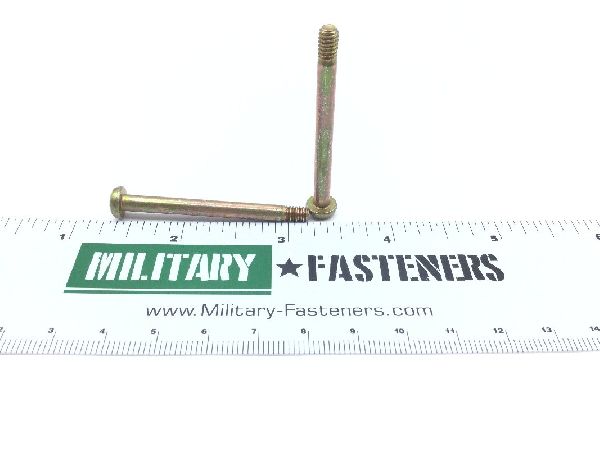

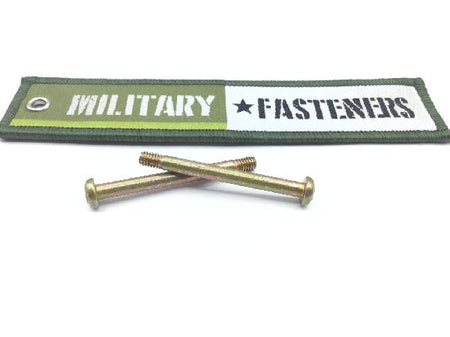

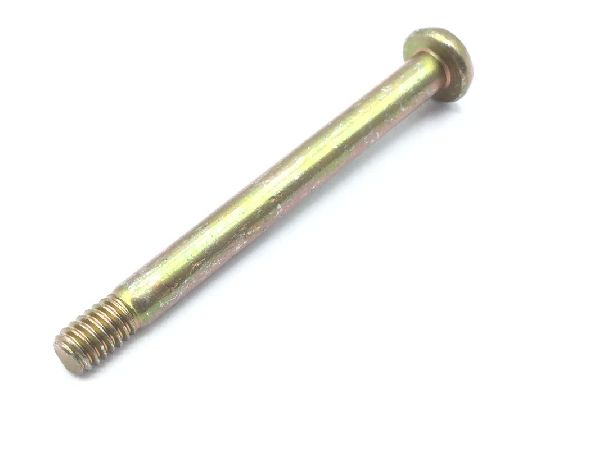

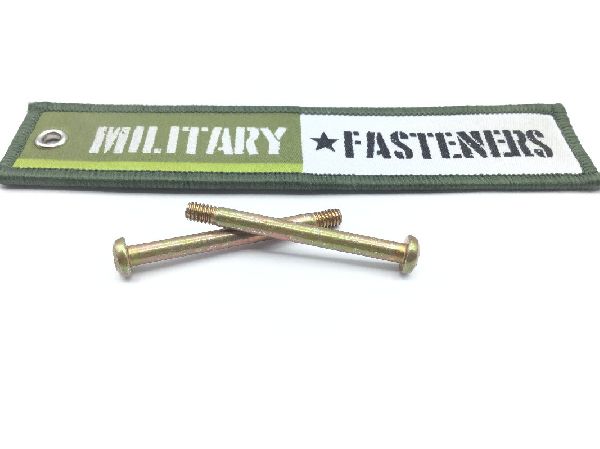

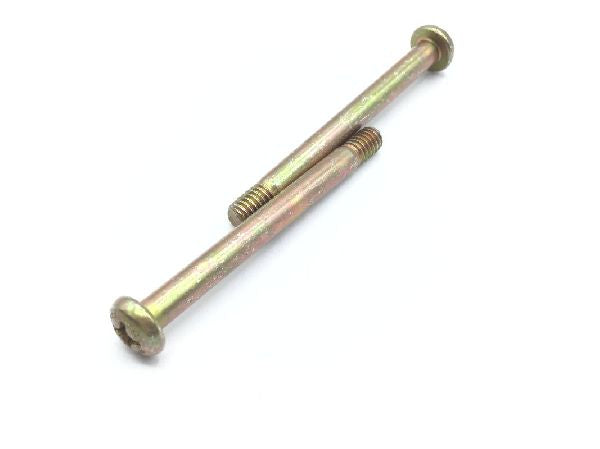

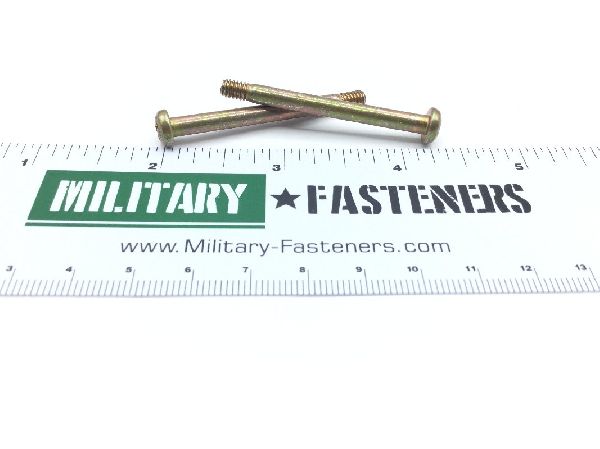

NAS623-2-24 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.69

Units per Pack 50

Price per Pack $34.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.50

Add item to quote

Head Style

Pan

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Fastener Length: Between 1.761 inches and 1.791 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.189 inches and 0.301 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.306 inches and 0.322 inches
