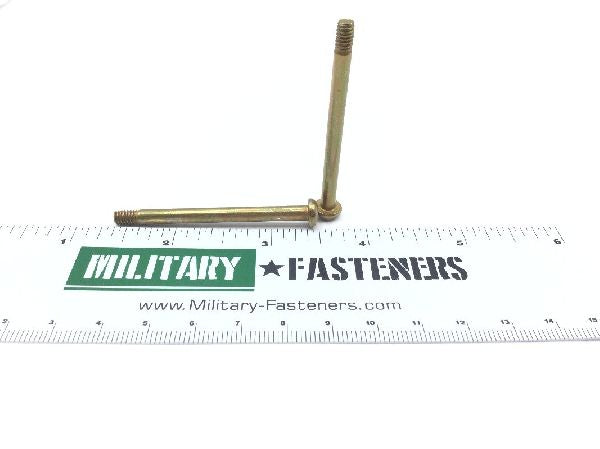

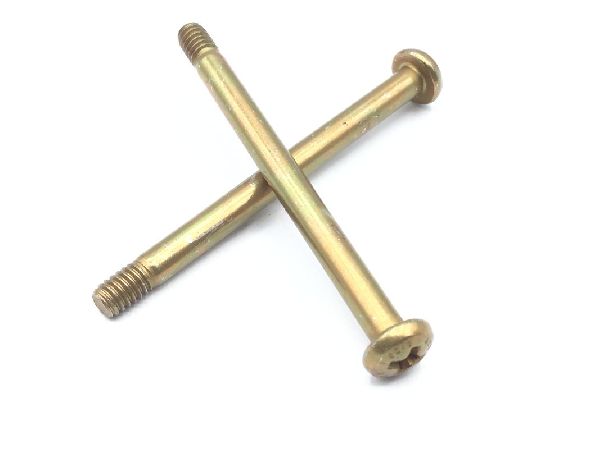

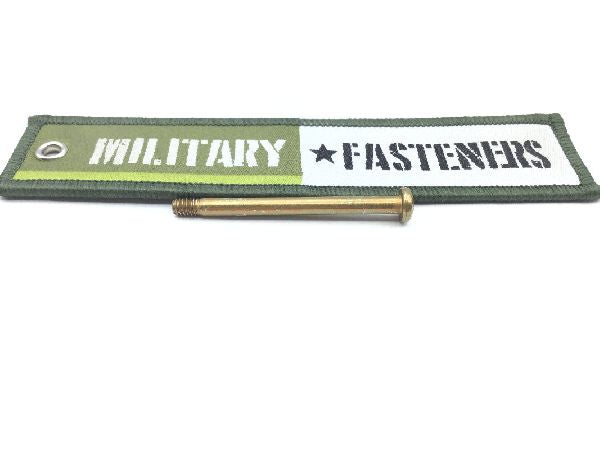

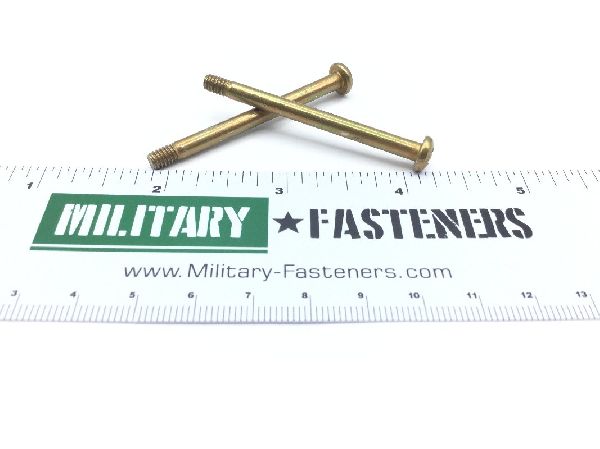

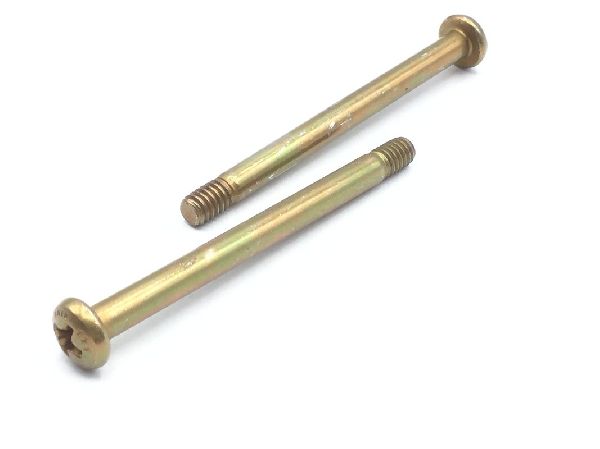

NAS623-2-28 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.97

Units per Pack 50

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 2.026 inches
Head Height: Between 0.105 inches and 0.115 inches
Iii Part Name Assigned By Controlling Agency: Navy special project
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 4140 or steel comp 8740
Screw Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response mil-s-5626
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Class2 federal specification 1st treatment response type2 qq-p-416
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Series Designator: Unjc
Head Diameter: Between 0.306 inches and 0.322 inches
