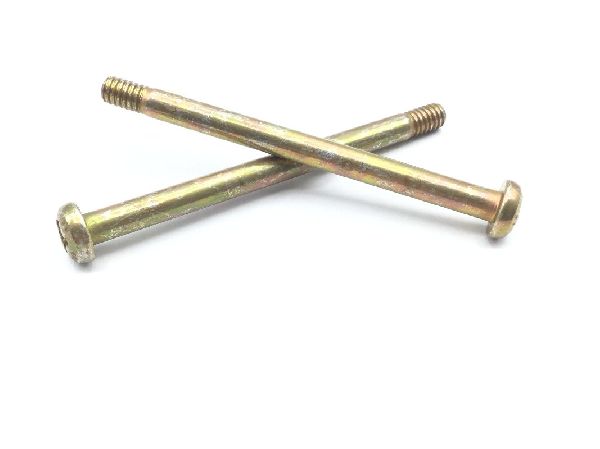

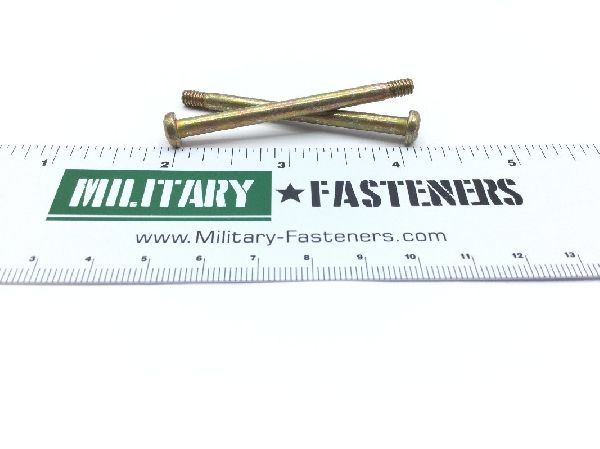

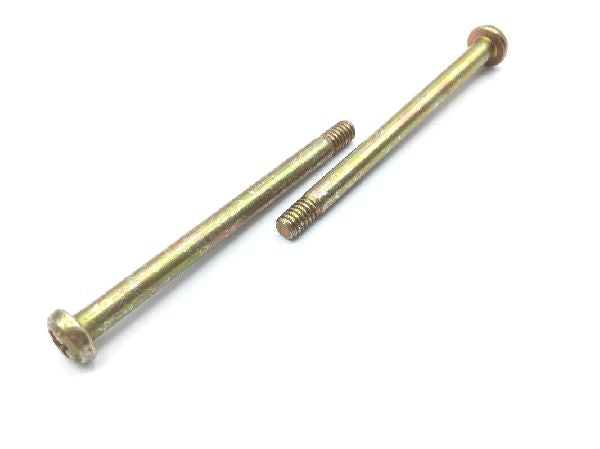

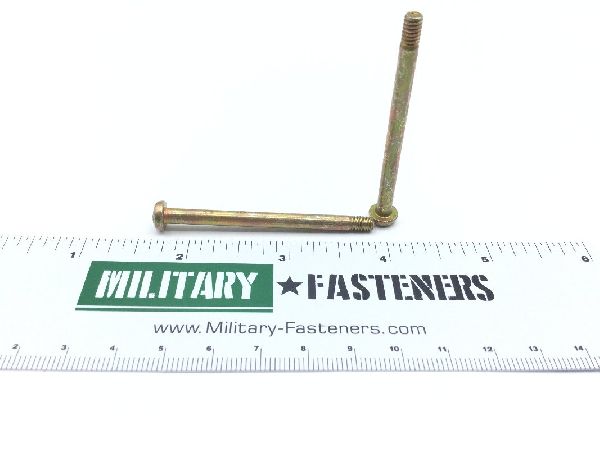

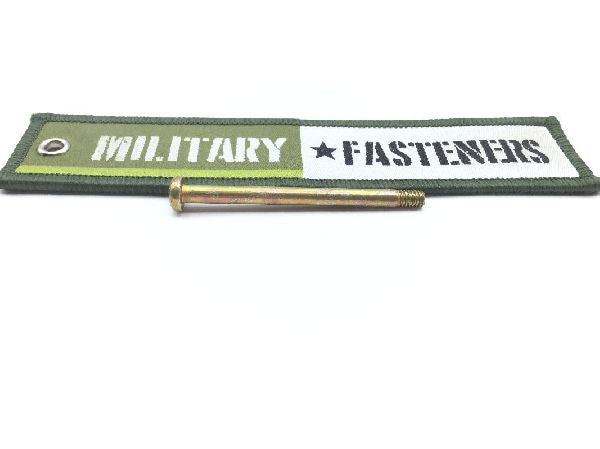

NAS623-2-30 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $8.66

Units per Pack 10

Price per Pack $86.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $86.60

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 2.151 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Type 2 federal specification single treatment response qq-p-416
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.219 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.306 inches and 0.322 inches
