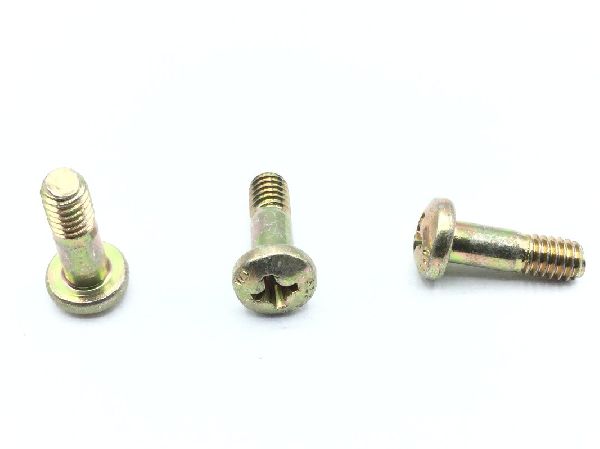

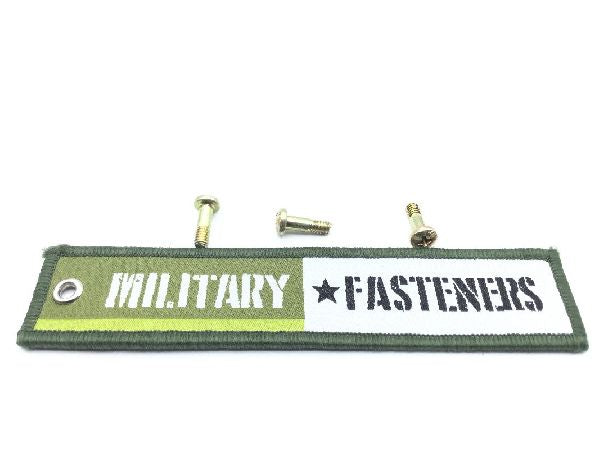

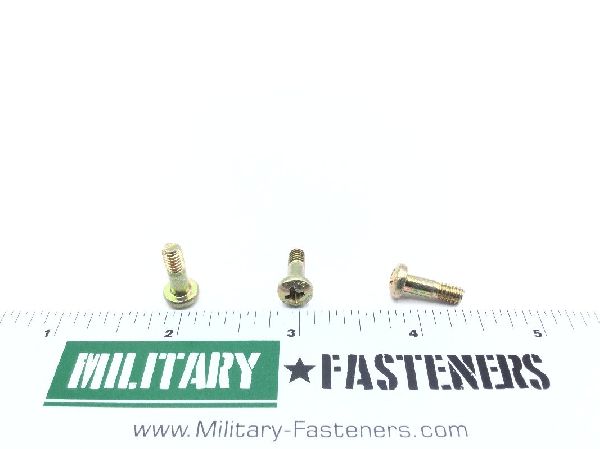

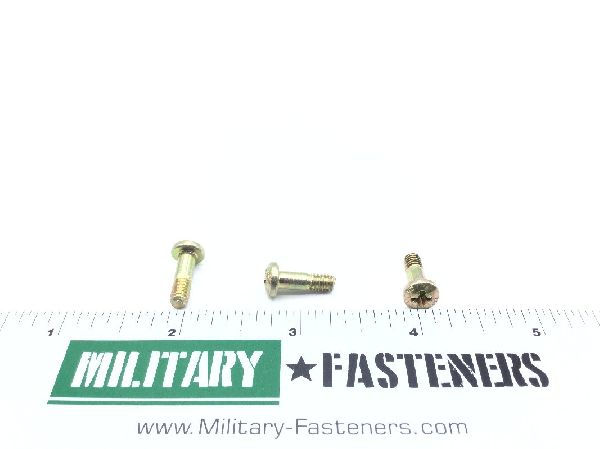

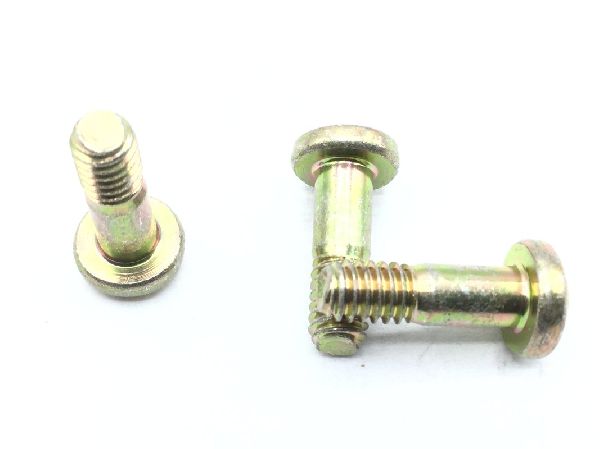

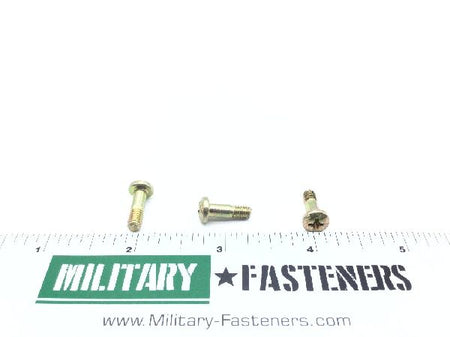

NAS623-2-4 Machine Screw
NAS623-2-4 Machine Screw (2)
NAS623-2-4 Machine Screw (3)
NAS623-2-4 Machine Screw (4)
NAS623-2-4 Machine Screw (5)
NAS623-2-4 Machine Screw (6)
NAS623-2-4 Machine Screw
NAS623-2-4 Machine Screw (2)
NAS623-2-4 Machine Screw (3)
NAS623-2-4 Machine Screw (4)
NAS623-2-4 Machine Screw (5)
NAS623-2-4 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS623-2-4 Machine Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $0.39
Units per Pack 100
Price per Pack $39.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $39.00
Add item to quote
Head Style
Pan
Thread Class
2a
Fastener Length
Between 0.511 inches and 0.541 inches
Head Height
Between 0.105 inches and 0.115 inches
Internal Drive Style
Cross recess type 1
Min. Tensile Strength (psi)
160000 pounds per square inch
Screw Material
Steel comp e4340 or steel comp 8740 or steel comp 8735 or steel comp 6150 or steel comp 4140 or steel comp 4037
Screw Surface Treatment Specification
Class 3 federal specification single treatment response type 2 qq-p-416
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
Between 0.189 inches and 0.301 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Head Diameter
Between 0.306 inches and 0.322 inches
