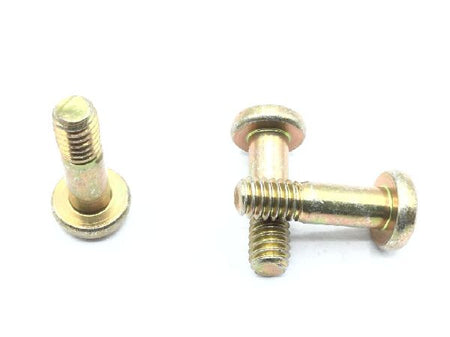

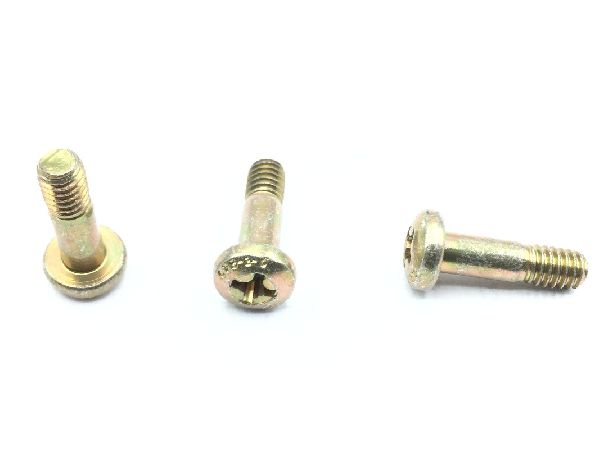

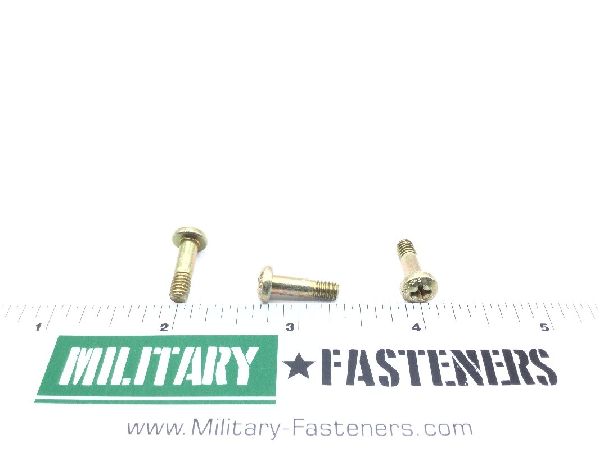

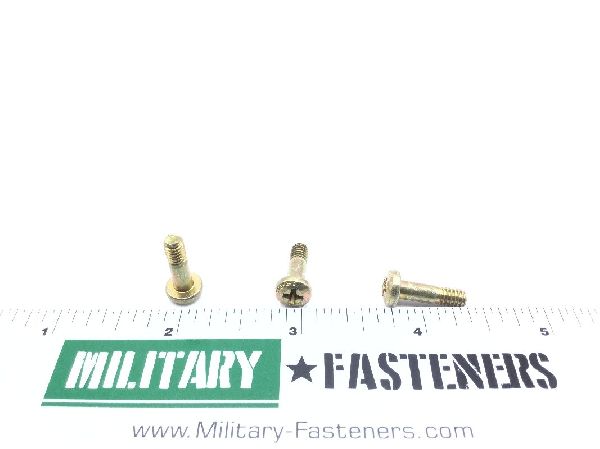

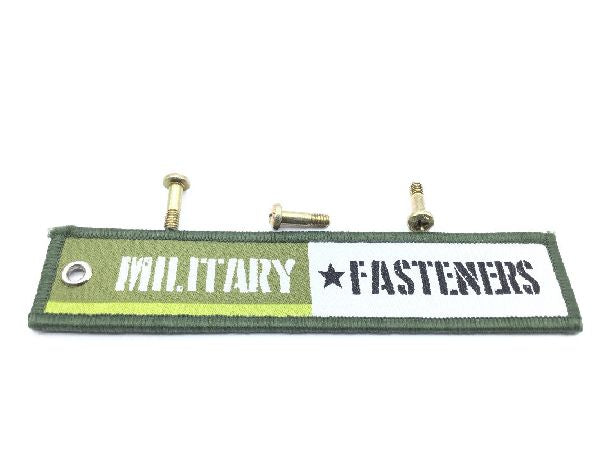

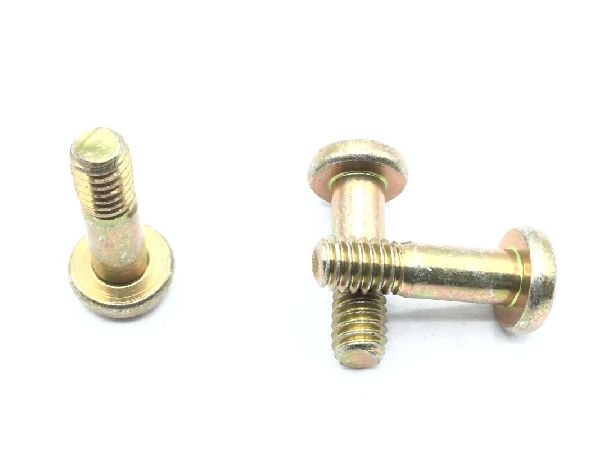

NAS623-2-5 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.40

Units per Pack 100

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Modified pan

Thread Class

Fastener Length: Between 0.573 inches and 0.603 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type ii
Screw Material: Steel comp 4140
Screw Material Specification: Mil-s-5626 military standard single material response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Cl 2 federal specification single treatment response ty ii qq-p-416
Specification Data: 80205-nas623-2-5 professional/industrial association standard
Thread Diameter: 0.1640 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.306 inches and 0.322 inches
