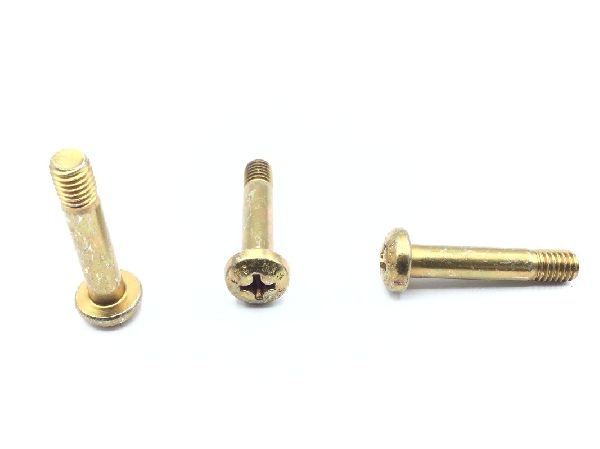

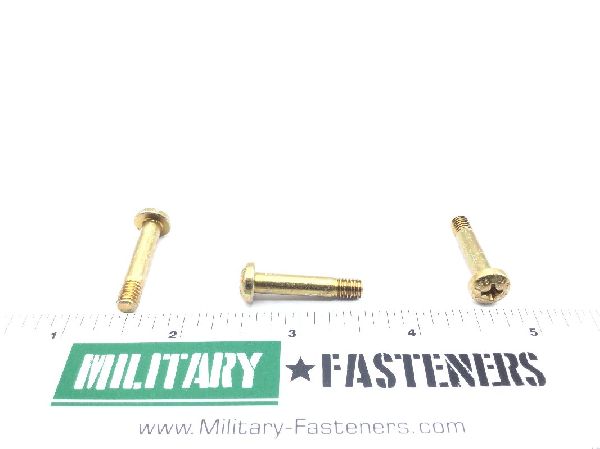

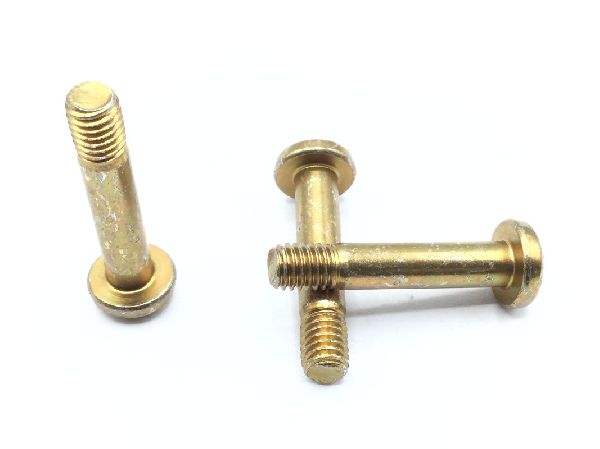

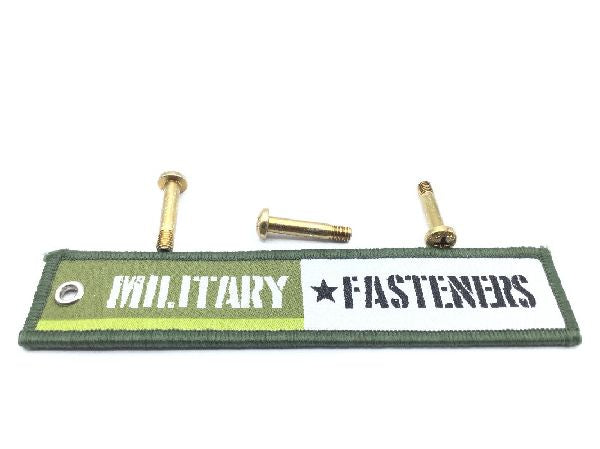

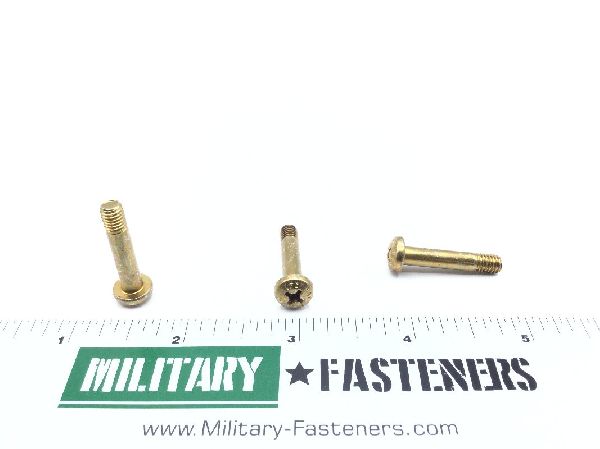

NAS623-3-11 Machine Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 0.949 inches and 0.979 inches
- Hardness Rating
- Between 36.0 rockwell c and 40.0 rockwell c
- Head Height
- Between 0.122 inches and 0.133 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Screw Material
- Steel comp e4340 or steel comp 8740 or steel comp 8735 or steel comp 6150 or steel comp 4140 or steel comp 4037
- Screw Surface Treatment
- Cadmium and chromate
- Screw Surface Treatment Specification
- Qq-p-416 type 2 cl 3 federal specification all treatment responses
- Thread Diameter
- 0.190 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.251 inches and 0.301 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unf (fine thread)
- Head Diameter
- Between 0.357 inches and 0.373 inches
