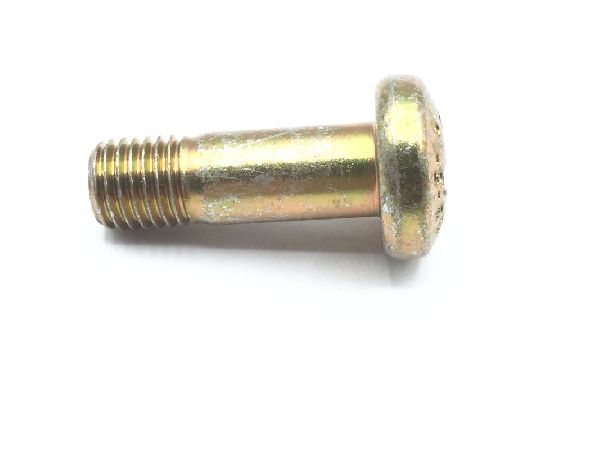

NAS623-5-9 Machine Screw

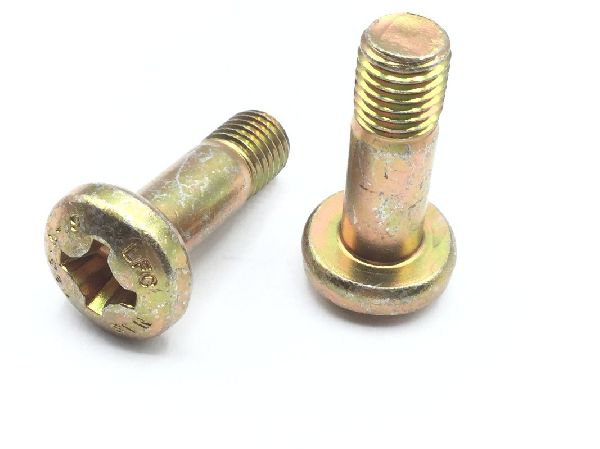

NAS623-5-9 Machine Screw (2)

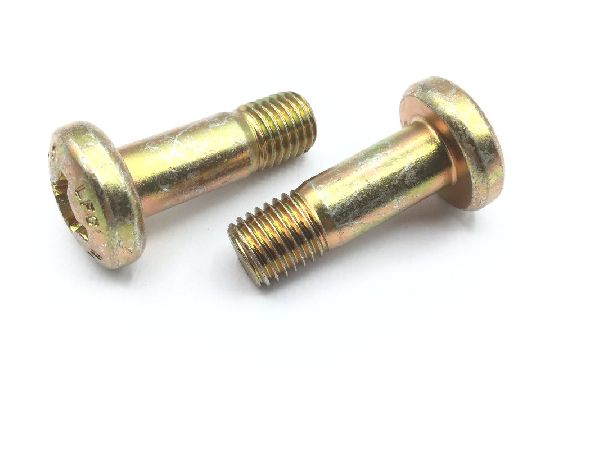

NAS623-5-9 Machine Screw (3)

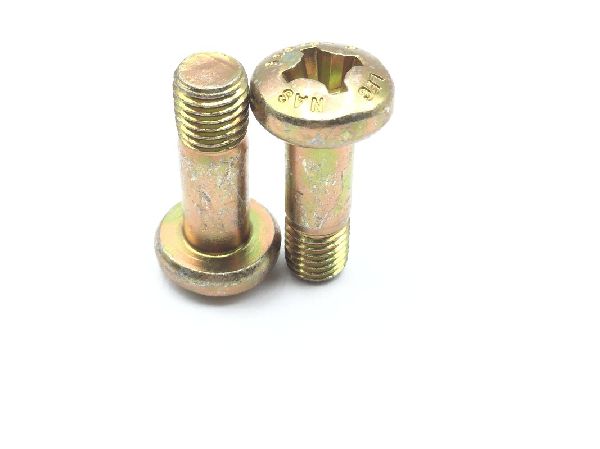

NAS623-5-9 Machine Screw (4)

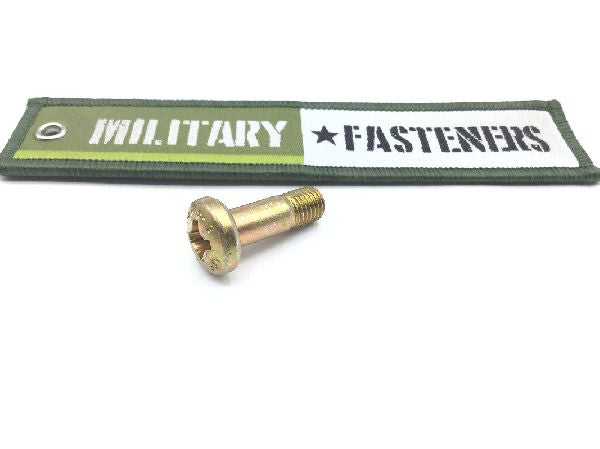

NAS623-5-9 Machine Screw (5)

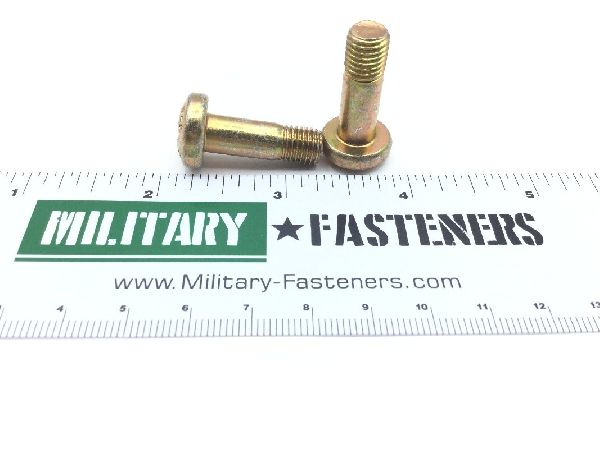

NAS623-5-9 Machine Screw (6)
NAS623-5-9 Machine Screw
NAS623-5-9 Machine Screw (2)
NAS623-5-9 Machine Screw (3)
NAS623-5-9 Machine Screw (4)
NAS623-5-9 Machine Screw (5)
NAS623-5-9 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS623-5-9 Machine Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Pan
Material
Steel
Surface Treatment
Qq-p-416 type 2 cl 2 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 0.922 inches and 0.952 inches
Head Height
Between 0.203 inches and 0.218 inches
Internal Drive Style
Cross recess type 1
Material Specification
Mil-s-5626 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Specification Data
80205-nas623 professional/industrial association standard
Thread Diameter
0.312 inches
Thread Direction
Right-hand
Thread Length
Between 0.350 inches and 0.400 inches
Thread Qty Per Inch (tpi)
24
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Head Diameter
Between 0.594 inches and 0.651 inches
