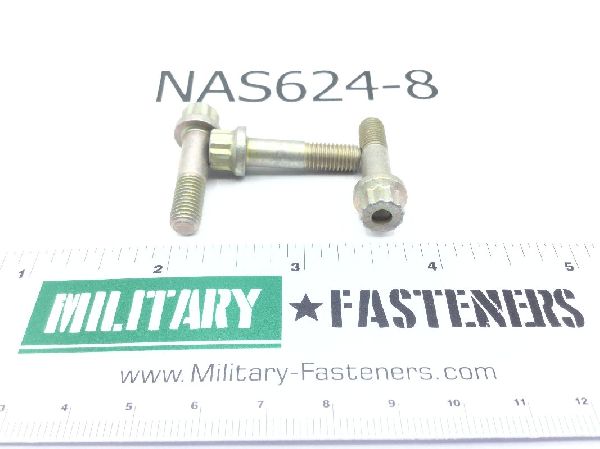

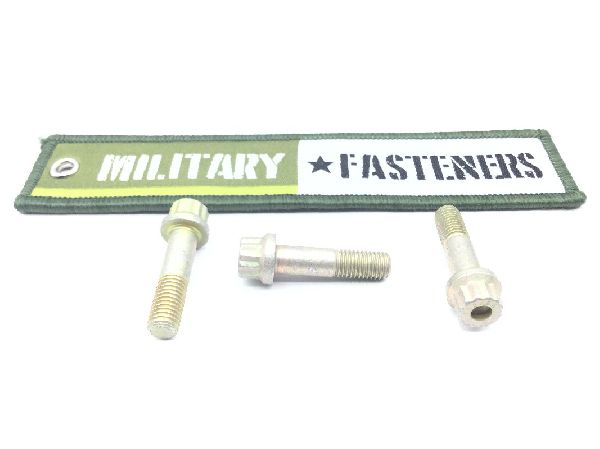

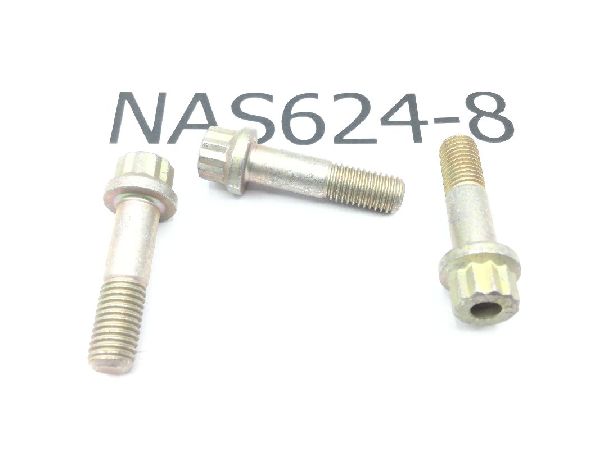

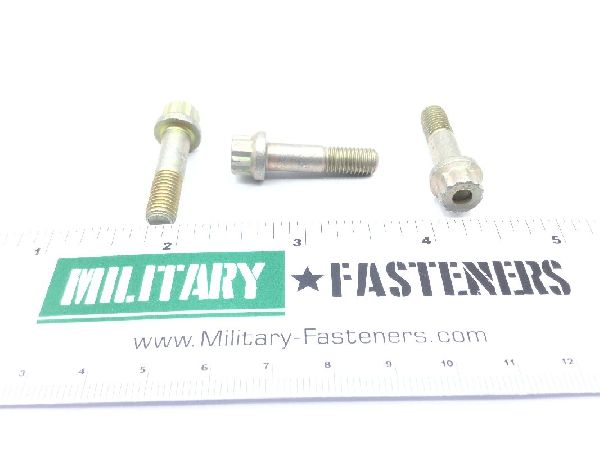

NAS624-8 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.433 inches
Extended Washer Thickness: 0.069 inches
Fastener Length: Between 0.970 inches and 1.000 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.490 inches and 0.510 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.300 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas624 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.460 inches and 0.510 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.306 inches and 0.315 inches
