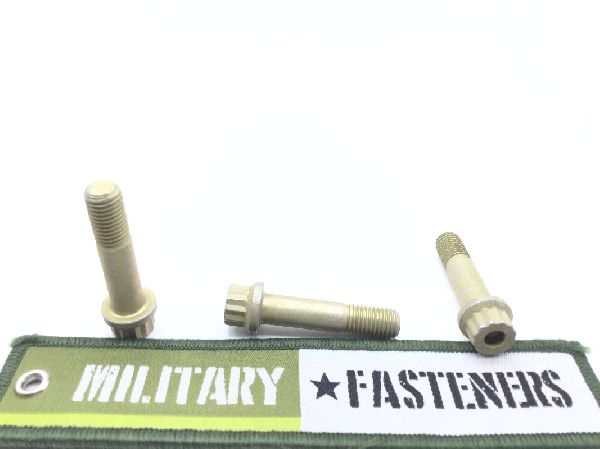

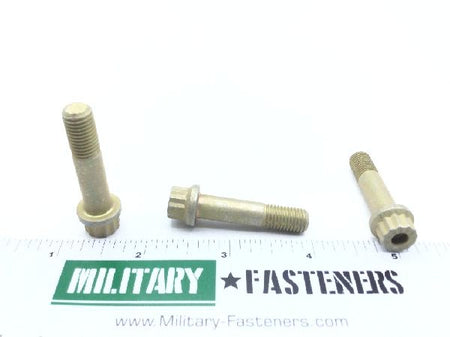

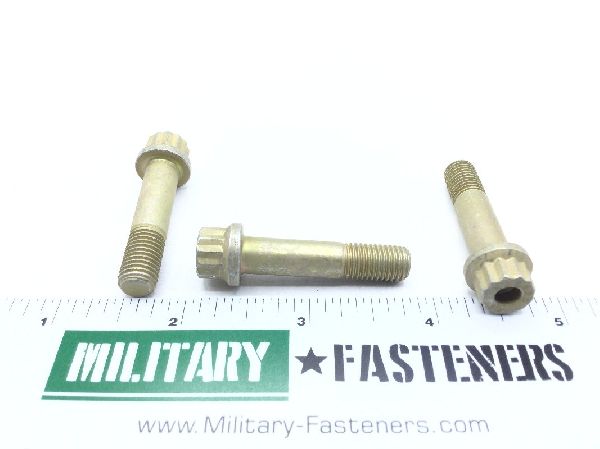

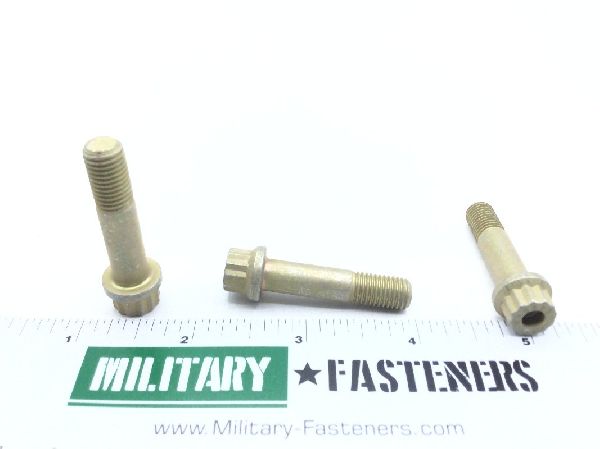

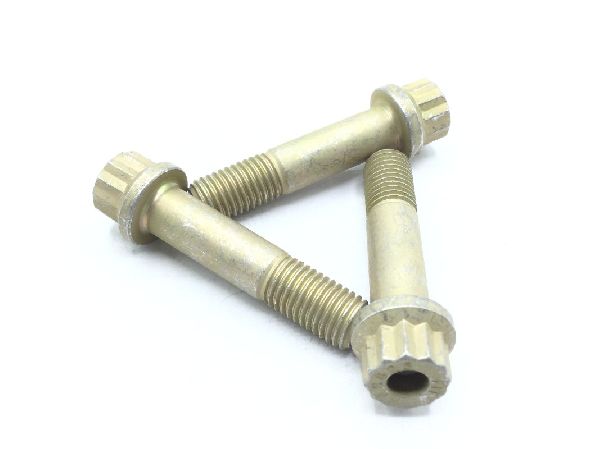

NAS625-13 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $11.81

Units per Pack 5

Price per Pack $59.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $59.05

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.526 inches
Extended Washer Thickness: 0.082 inches
Fastener Length: Between 1.369 inches and 1.399 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.802 inches and 0.822 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.348 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas625 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.547 inches and 0.597 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.368 inches and 0.377 inches
