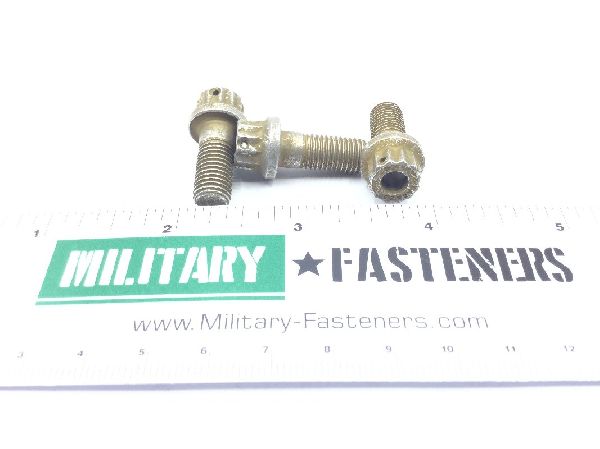

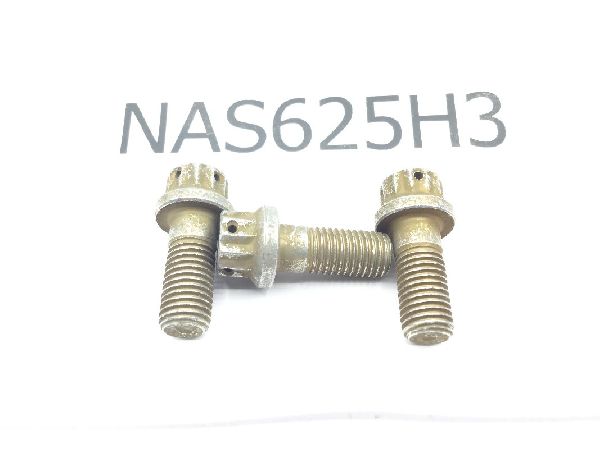

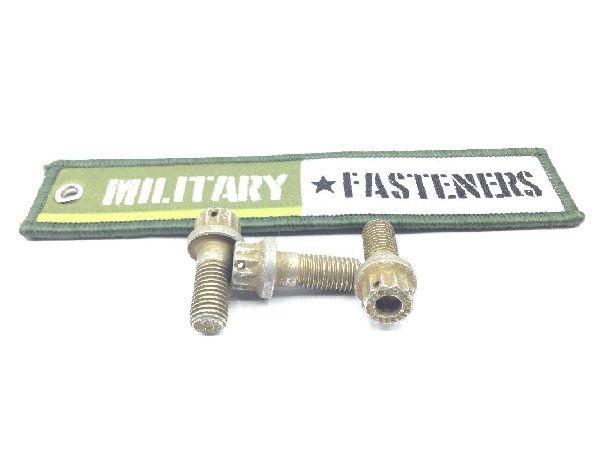

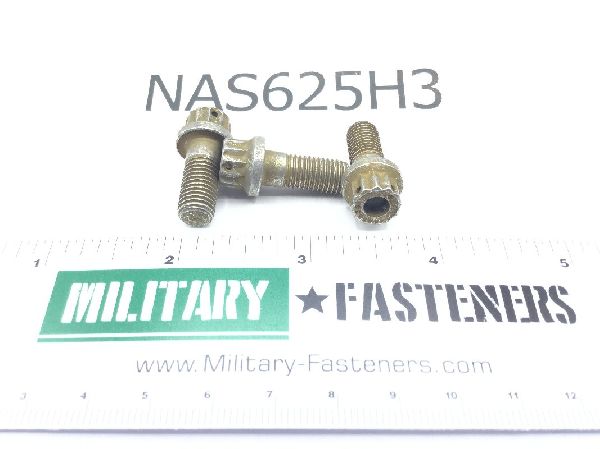

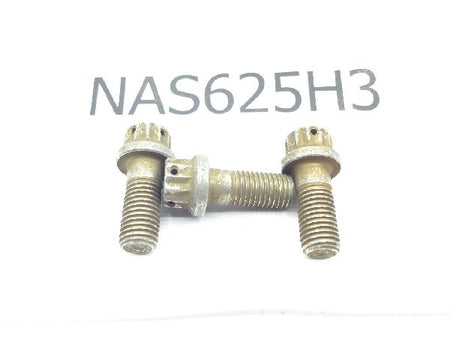

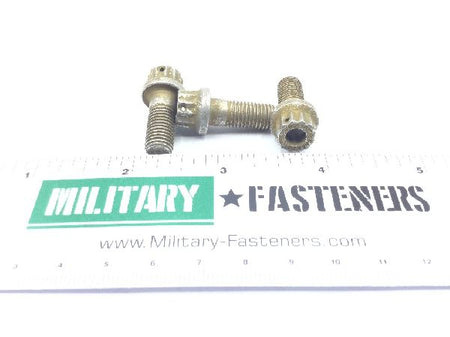

NAS625H3 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $10.71

Units per Pack 5

Price per Pack $53.55

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $53.55

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp e4340 or steel comp 8735 or steel comp 8740 or steel comp 6150 or steel comp 4140

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.526 inches
Extended Washer Thickness: 0.082 inches
Fastener Length: Between 0.745 inches and 0.775 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.178 inches and 0.198 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.348 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas625 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.547 inches and 0.597 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.368 inches and 0.377 inches
Hole Diameter: 0.055 inches
