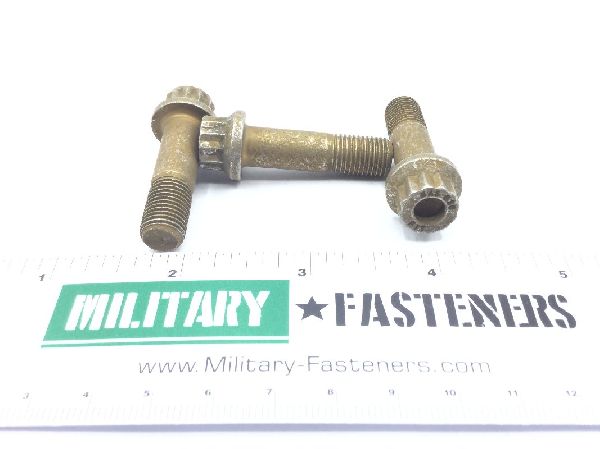

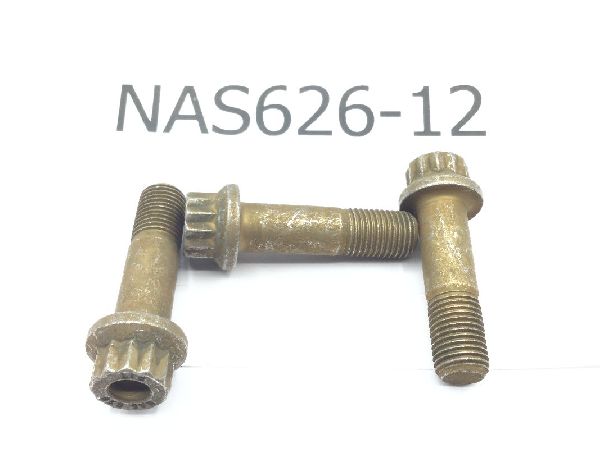

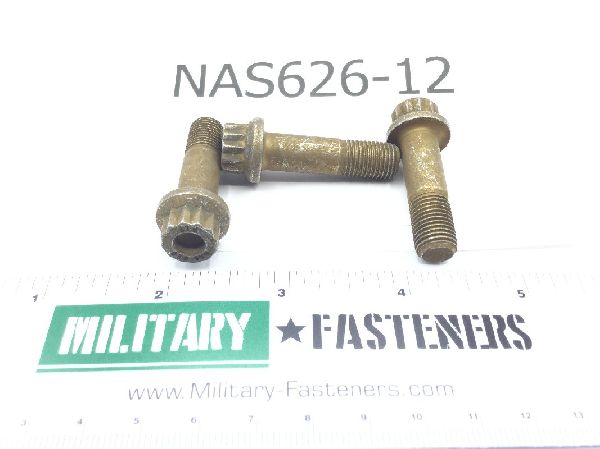

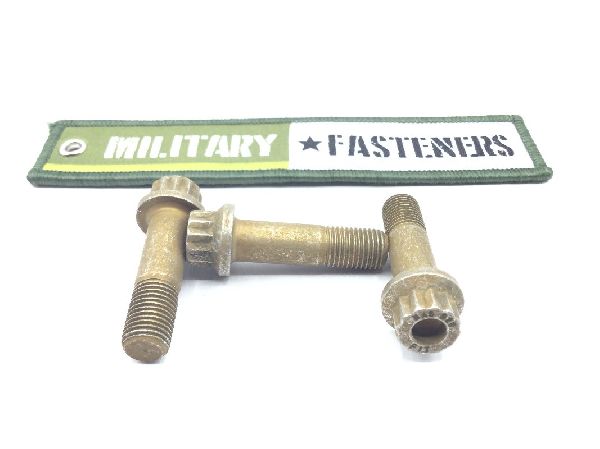

NAS626-12 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $8.35

Units per Pack 10

Price per Pack $83.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $83.50

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.644 inches
Extended Washer Thickness: 0.091 inches
Fastener Length: Between 1.354 inches and 1.384 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 0.740 inches and 0.760 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.594 inches and 0.644 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
