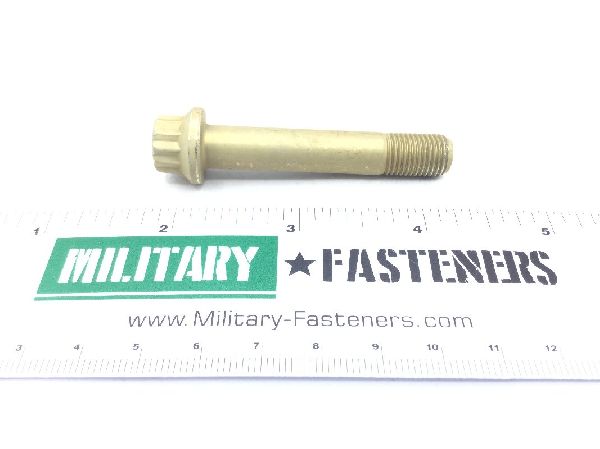

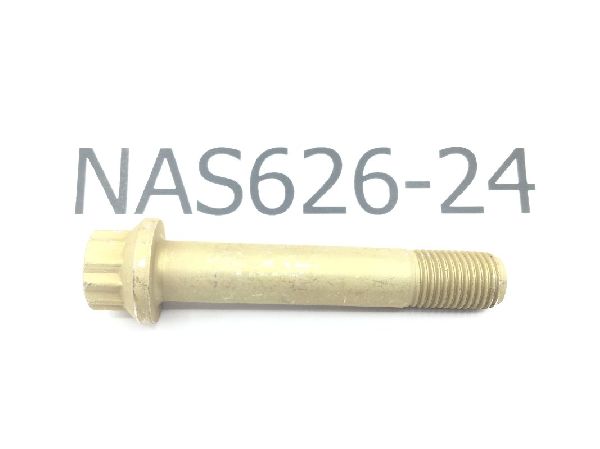

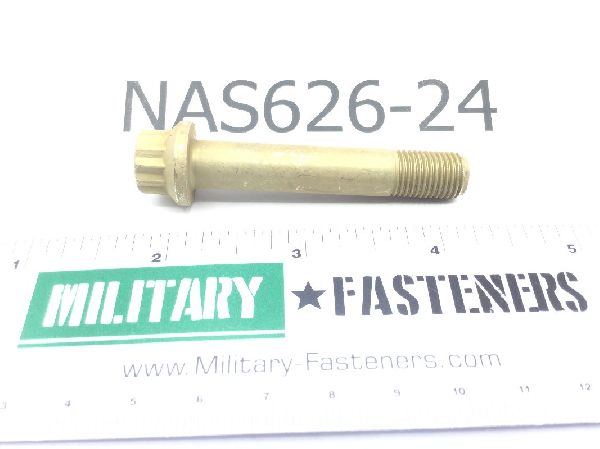

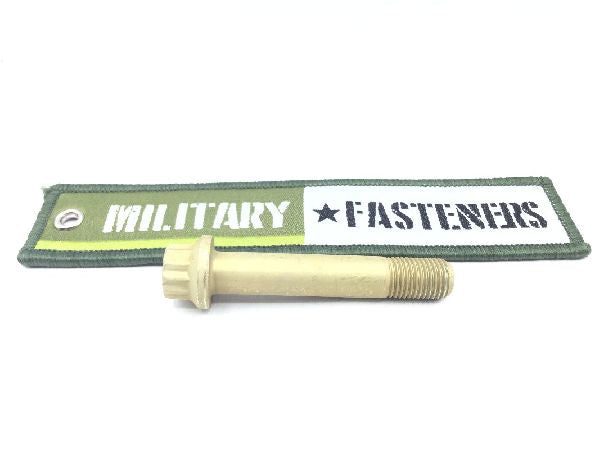

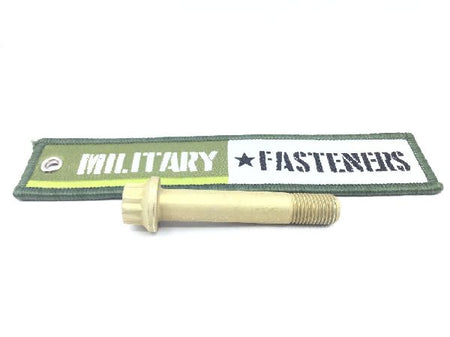

NAS626-24 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 0.639 inches and 0.649 inches
Extended Washer Thickness: Between 0.081 inches and 0.101 inches
Fastener Length: Between 2.104 inches and 2.134 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 1.490 inches and 1.510 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.378 inches and 0.398 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.594 inches and 0.644 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
