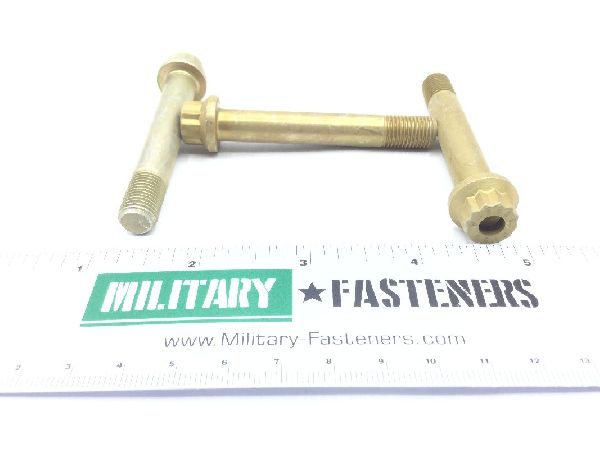

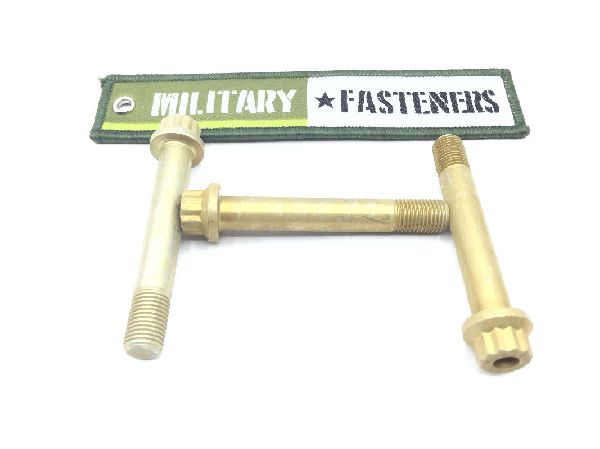

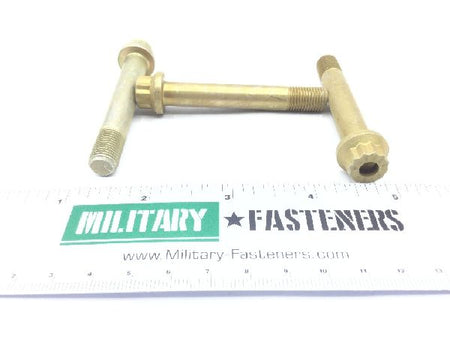

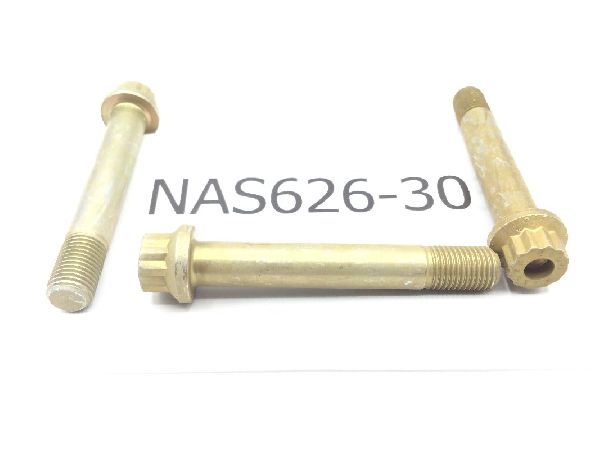

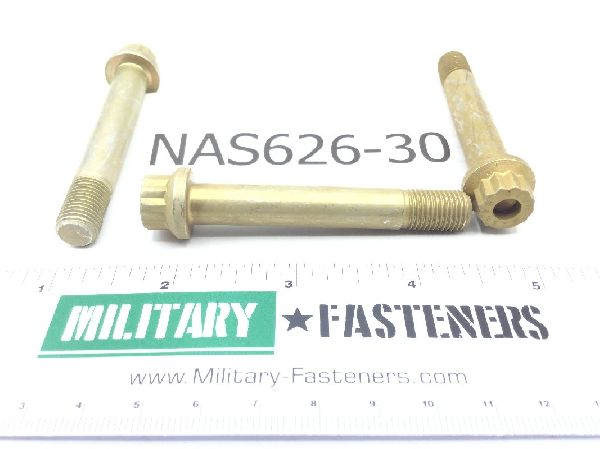

NAS626-30 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon with hole

Material

Steel

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.644 inches
Extended Washer Thickness: 0.091 inches
Fastener Length: Between 2.479 inches and 2.509 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 1.865 inches and 1.885 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas626 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.644 inches and 0.694 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
