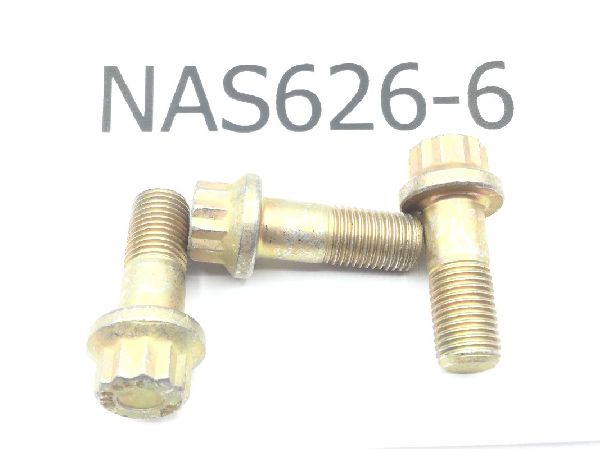

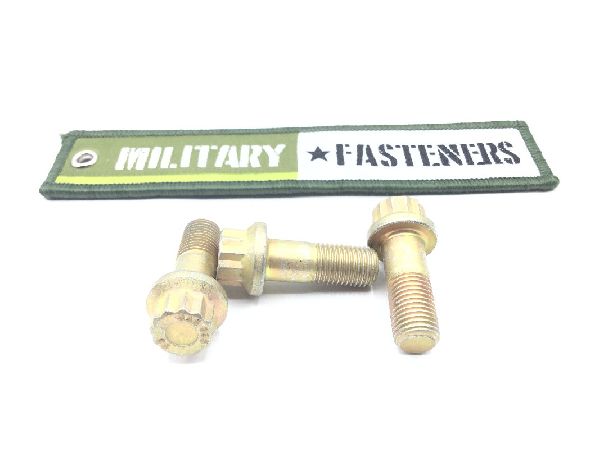

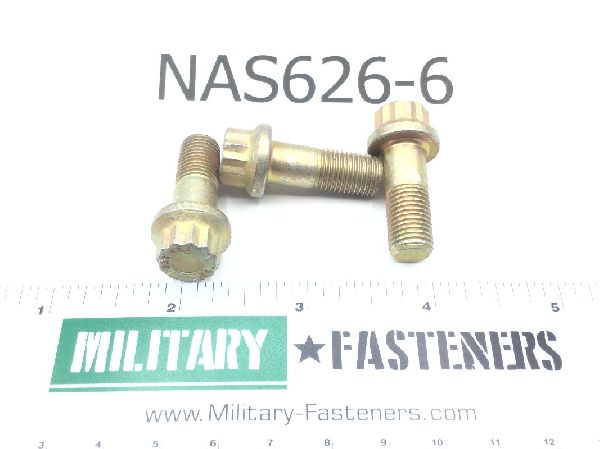

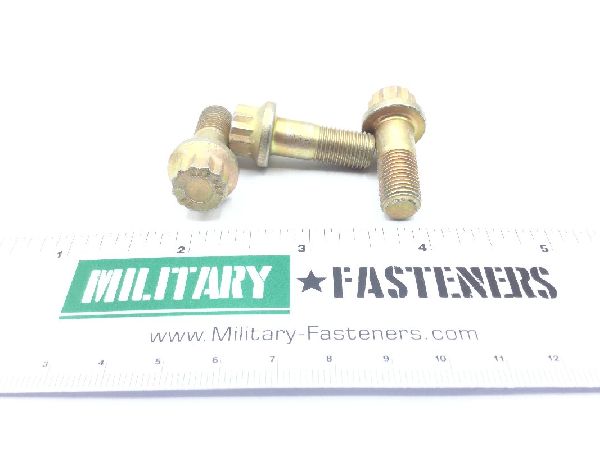

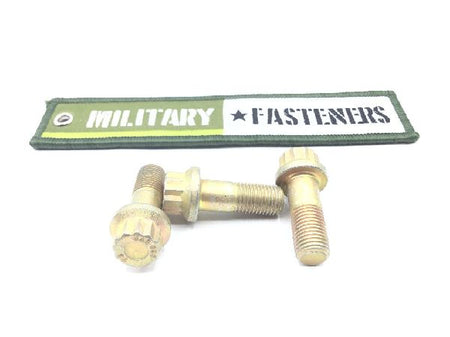

NAS626-6 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $9.70

Units per Pack 5

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.644 inches
Extended Washer Thickness: 0.091 inches
Fastener Length: 0.994 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: 0.375 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas626 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.619 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
