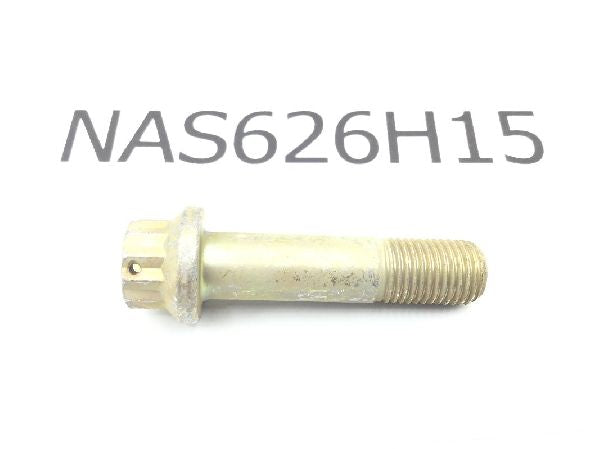

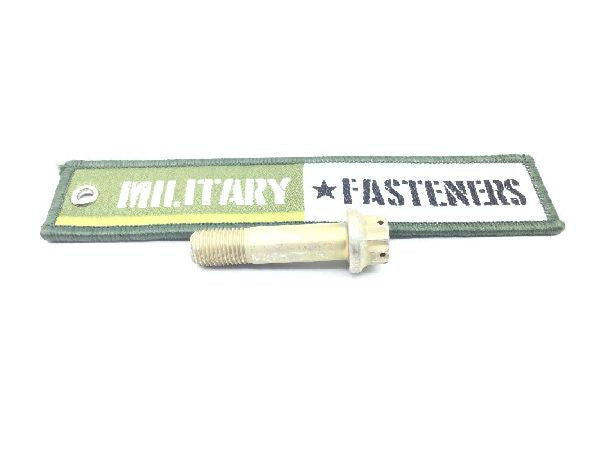

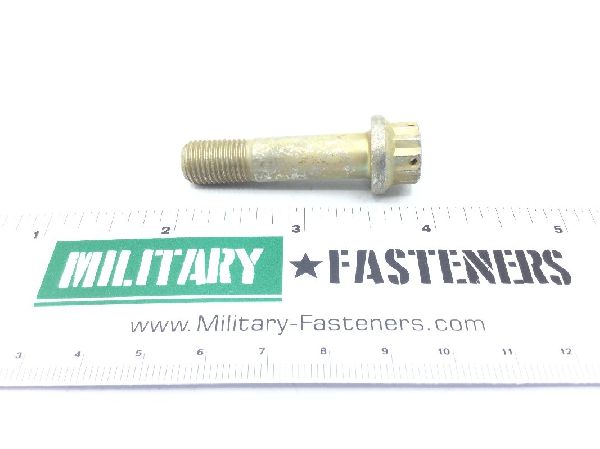

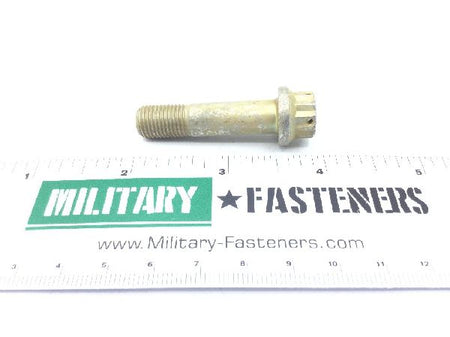

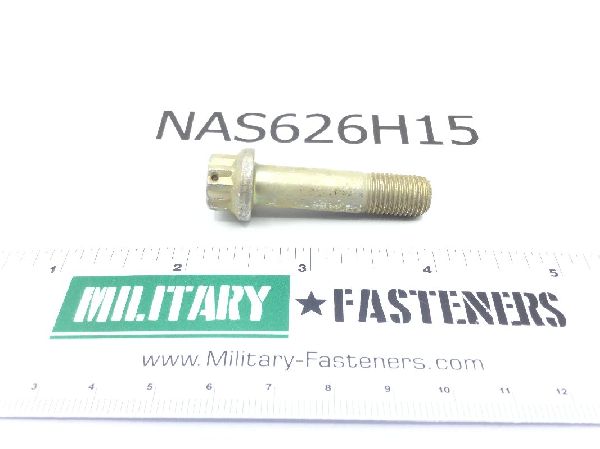

NAS626H15 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $38.11

Units per Pack 1

Price per Pack $38.11

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $38.11

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 0.639 inches and 0.649 inches
Extended Washer Thickness: Between 0.081 inches and 0.101 inches
Fastener Length: Between 1.541 inches and 1.571 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 0.927 inches and 0.947 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.378 inches and 0.398 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas626 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.544 inches and 0.594 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.055 inches
