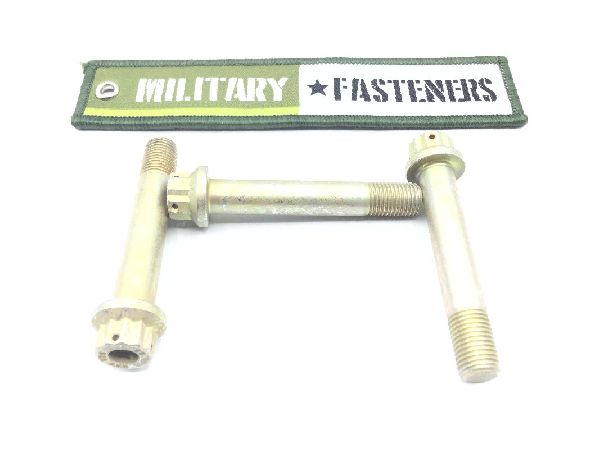

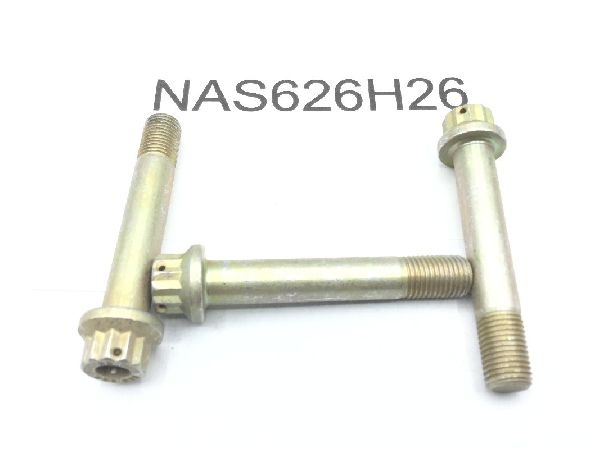

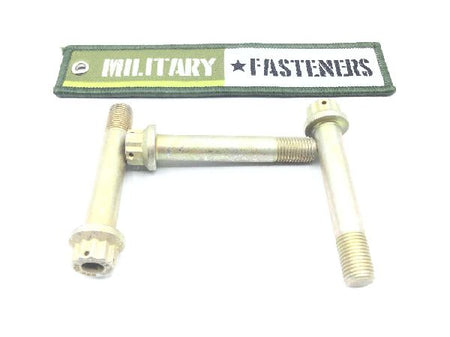

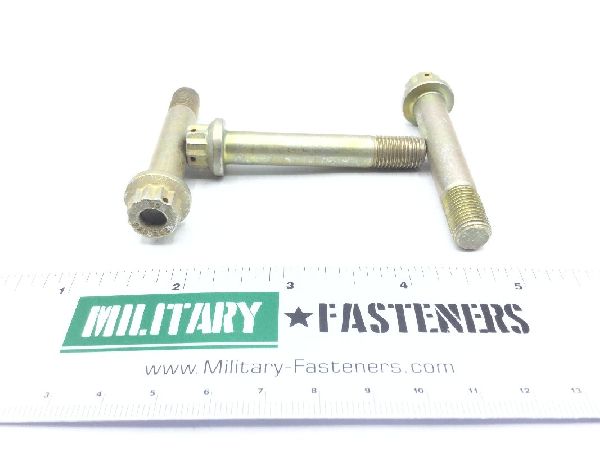

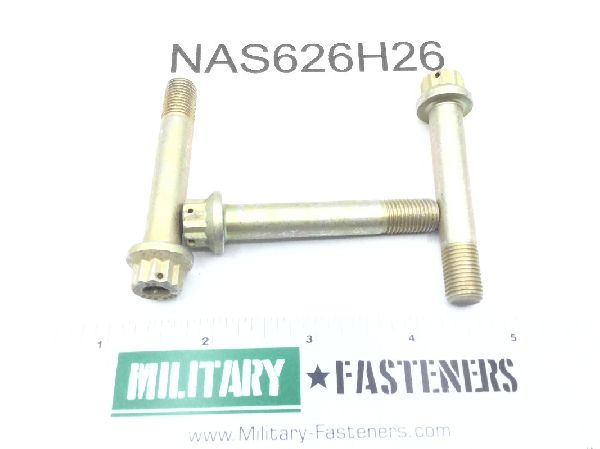

NAS626H26 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $15.88

Units per Pack 5

Price per Pack $79.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $79.40

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Nas672 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 0.639 inches and 0.649 inches
Extended Washer Thickness: Between 0.081 inches and 0.101 inches
Fastener Length: Between 2.229 inches and 2.259 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 1.615 inches and 1.635 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.378 inches and 0.398 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas626 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.594 inches and 0.644 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.055 inches
