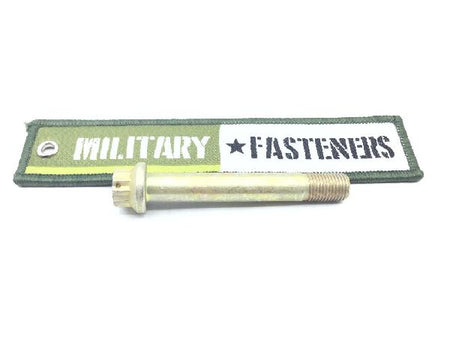

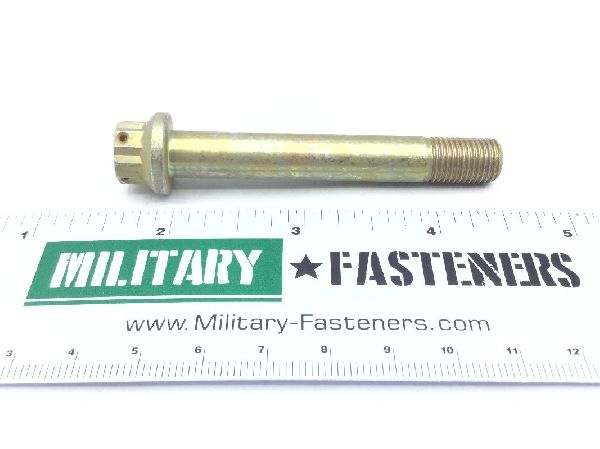

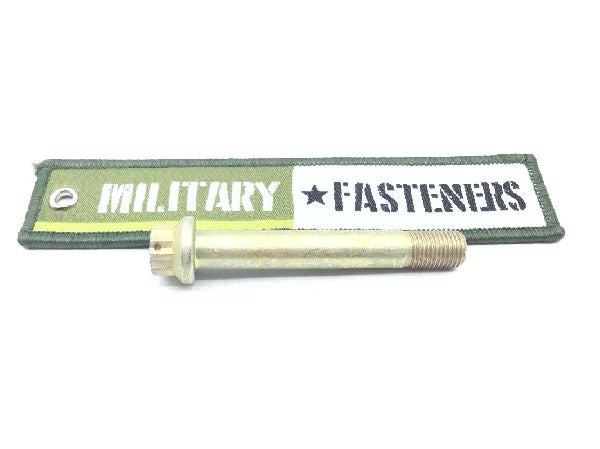

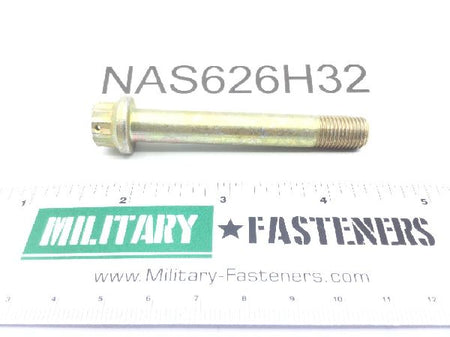

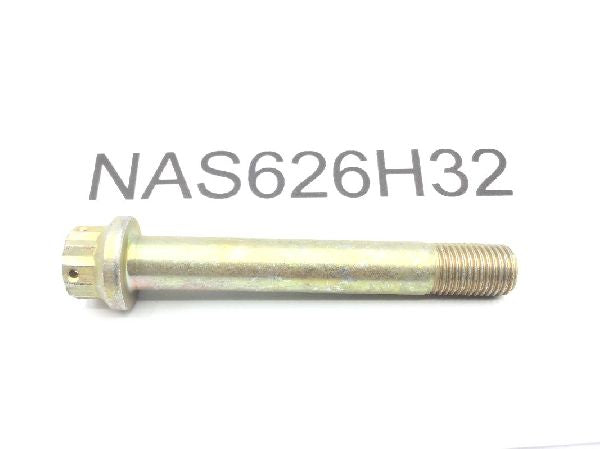

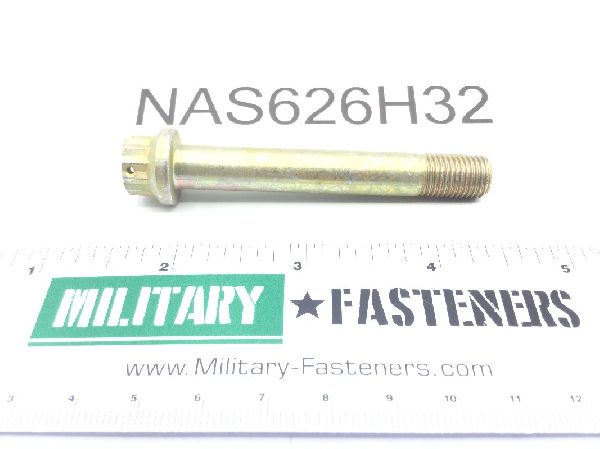

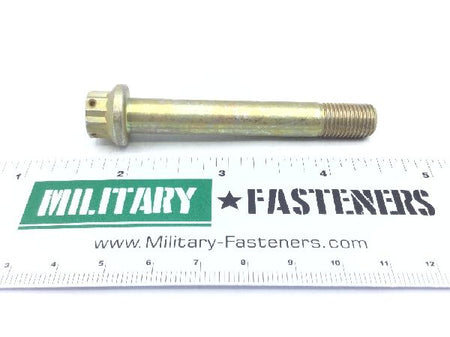

NAS626H32 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $22.04

Units per Pack 1

Price per Pack $22.04

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $22.04

Add item to quote

Head Style

Double hexagon extended washer

Material

Steel comp 4140 or steel comp 4340 or steel comp 8740

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.644 inches
Extended Washer Thickness: 0.091 inches
Fastener Length: 0.619 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: 2.000 inches
Hardness Rating: 390.0 rockwell c and 43.0 rockwell c
Head Height: 0.388 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 6382 assn standard single material response or ams 6415 assn standard single material response or ams 6322 assn standard single material response
Min. Tensile Strength (psi): 17100 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.619 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.055 inches
