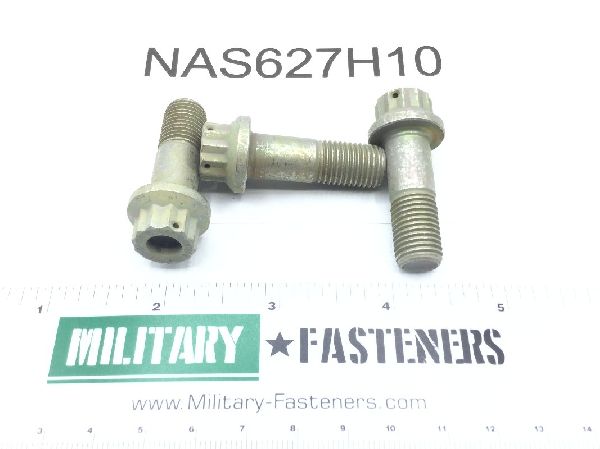

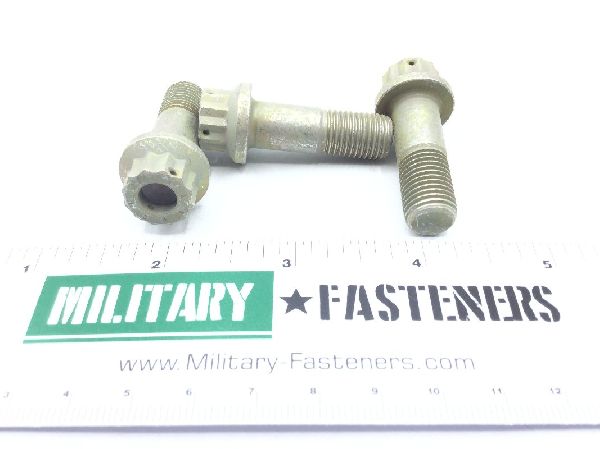

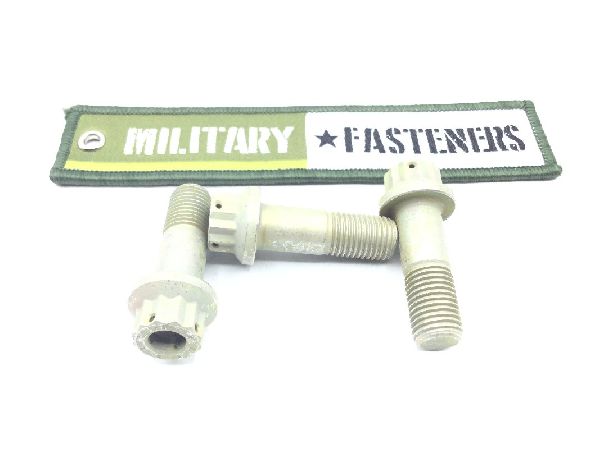

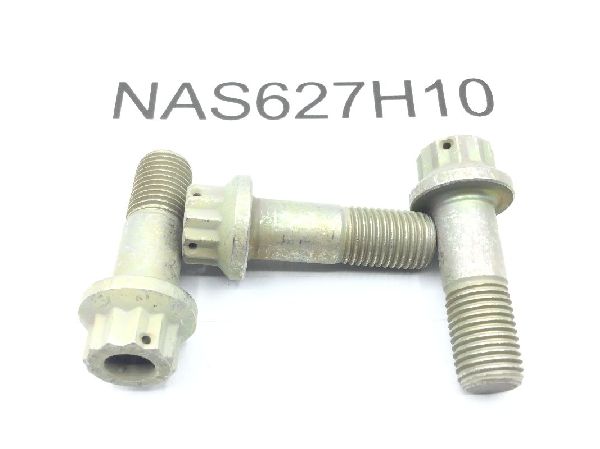

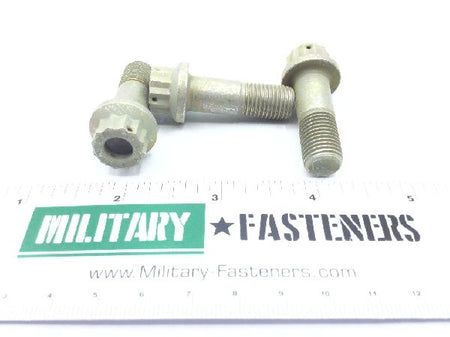

NAS627H10 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $16.56

Units per Pack 5

Price per Pack $82.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $82.80

Add item to quote

Head Style

Double hexagon

Material

Steel

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 0.740 inches and 0.750 inches
Extended Washer Thickness: Between 0.089 inches and 0.109 inches
Fastener Length: Between 1.304 inches and 1.334 inches
Grip Diameter: Between 0.4360 inches and 0.4370 inches
Grip Length: Between 0.615 inches and 0.635 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.425 inches and 0.445 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas627 professional/industrial association standard
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.669 inches and 0.719 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.494 inches and 0.503 inches
Hole Diameter: 0.055 inches
