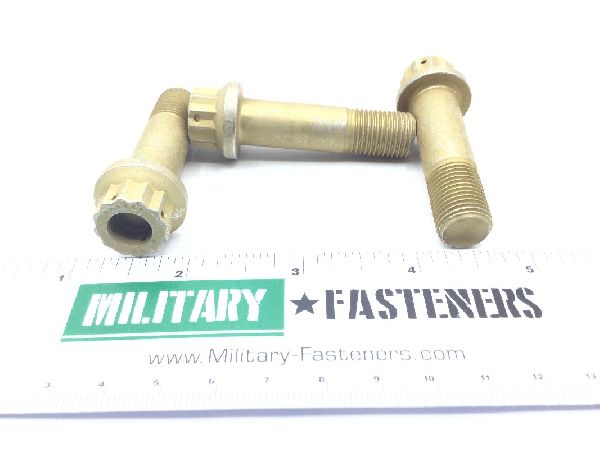

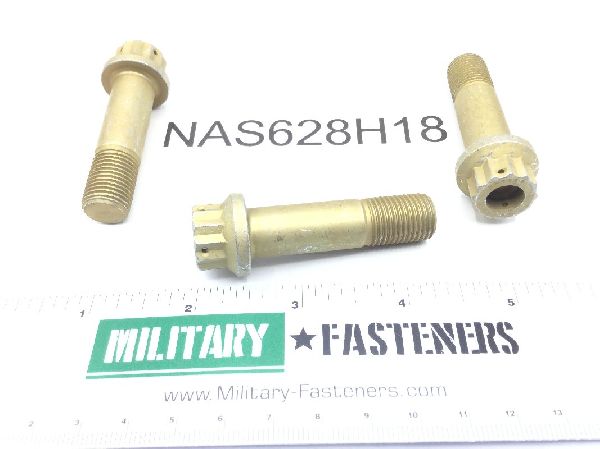

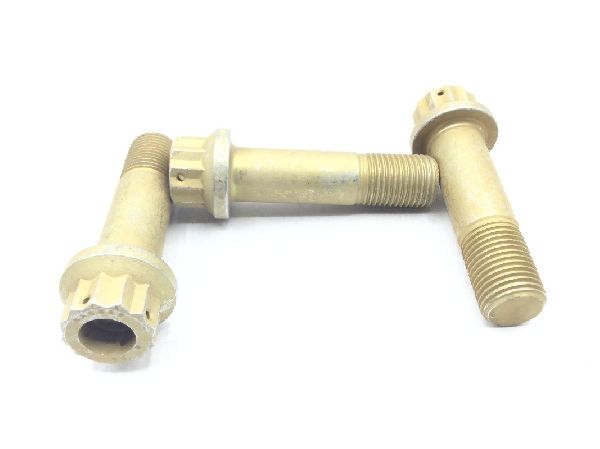

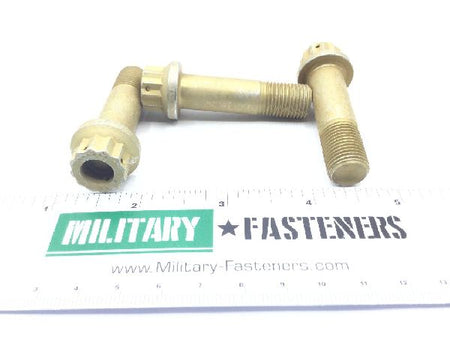

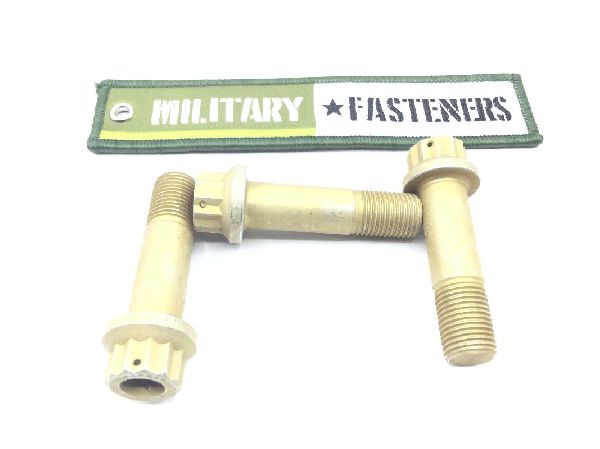

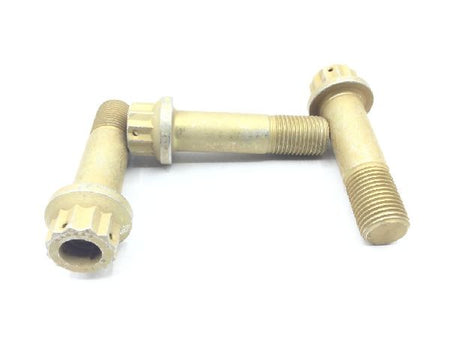

NAS628H18 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $15.17

Units per Pack 5

Price per Pack $75.85

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $75.85

Add item to quote

Head Style

Double hexagon with hole

Material

Steel comp

Surface Treatment

Nas672 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 0.818 inches and 0.828 inches
Extended Washer Thickness: Between 0.113 inches and 0.133 inches
Fastener Length: Between 1.851 inches and 1.881 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: Between 1.115 inches and 1.135 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.494 inches and 0.514 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas628 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 0.716 inches and 0.766 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.556 inches and 0.565 inches
Hole Diameter: Between 0.050 inches and 0.060 inches
