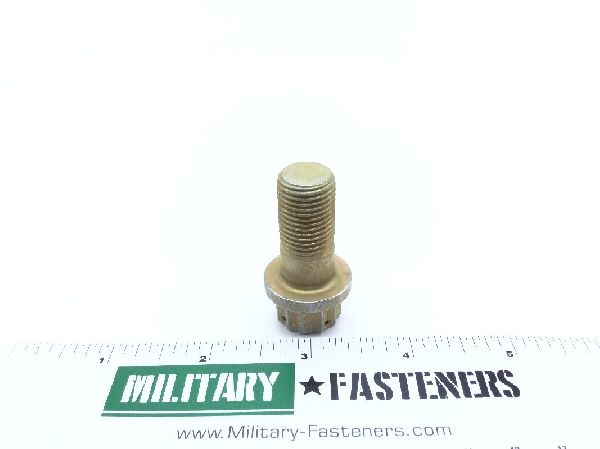

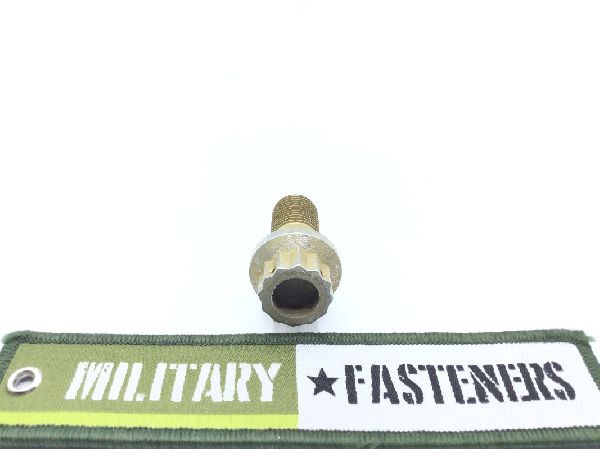

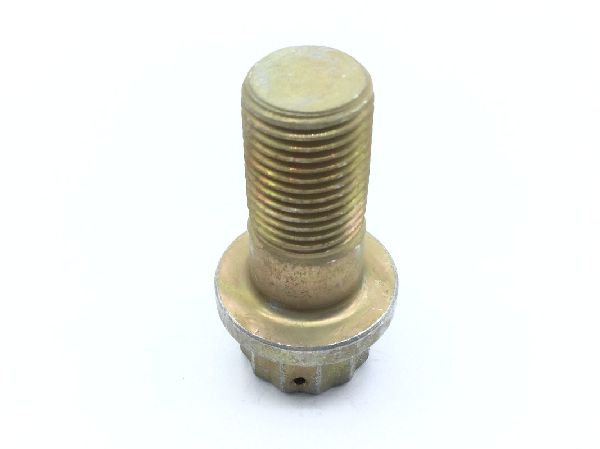

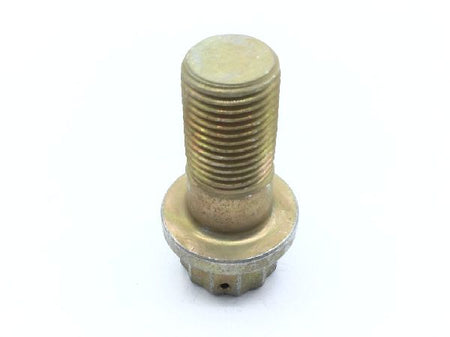

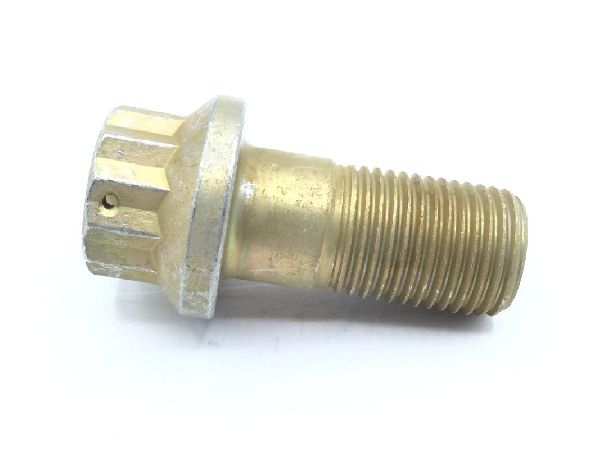

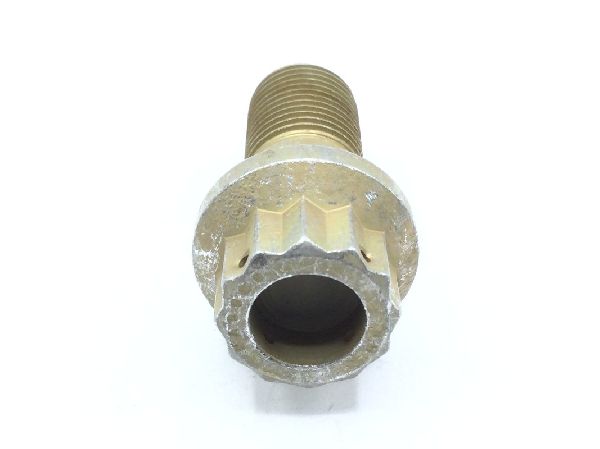

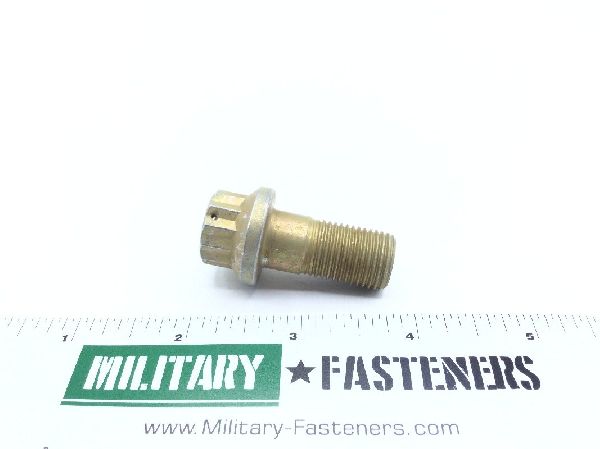

NAS629H6 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp e4340 or steel comp 8735 or steel comp 8740 or steel comp 6150 or steel comp 4140

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.933 inches
Extended Washer Thickness: 0.133 inches
Fastener Length: 1.201 inches
Grip Diameter: Between 0.5605 inches and 0.5615 inches
Grip Length: 0.375 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.557 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas629 professional/industrial association standard
Thread Diameter: 0.562 inches
Thread Direction: Right-hand
Thread Length: 0.826 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.619 inches and 0.628 inches
Hole Diameter: 0.055 inches
