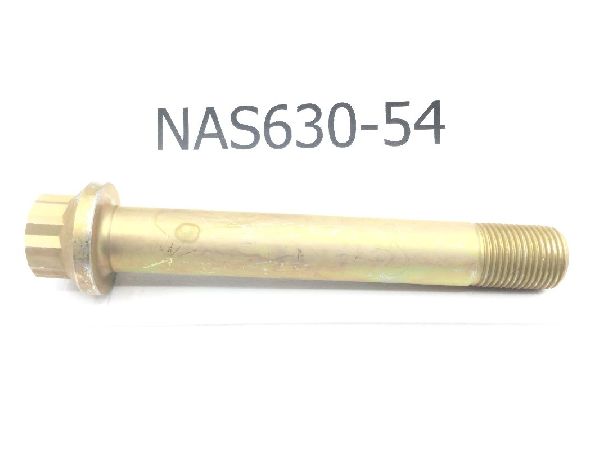

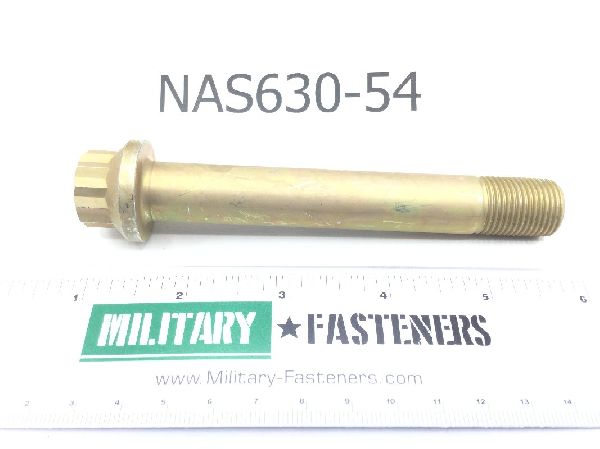

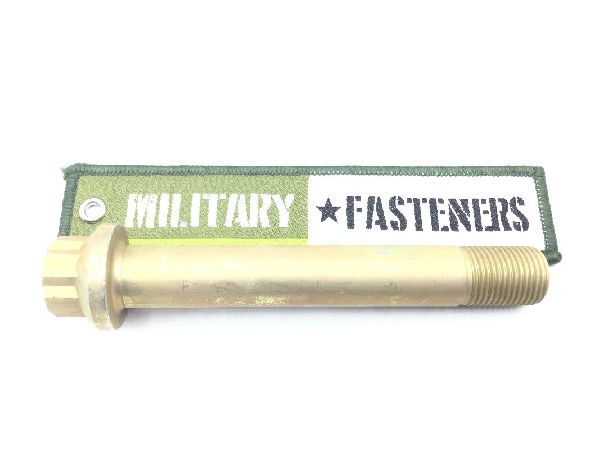

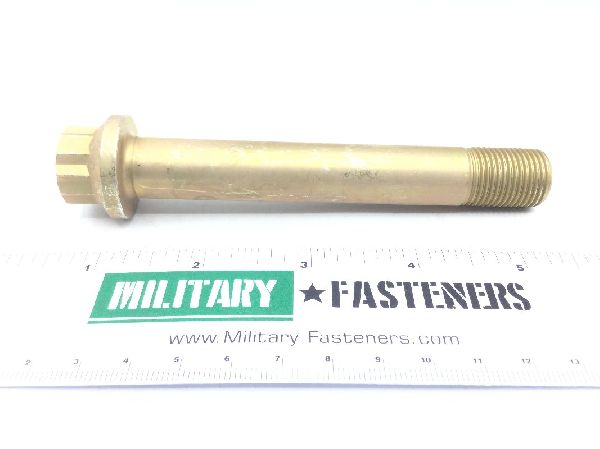

NAS630-54 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $83.16

Units per Pack 1

Price per Pack $83.16

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $83.16

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp e4340 or steel comp 4140 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 1.040 inches and 1.050 inches
Extended Washer Thickness: Between 0.140 inches and 0.160 inches
Fastener Length: Between 4.233 inches and 4.263 inches
Grip Diameter: Between 0.6230 inches and 0.6240 inches
Grip Length: Between 3.365 inches and 3.385 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.608 inches and 0.628 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas630 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: Between 0.848 inches and 0.898 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.682 inches and 0.691 inches
