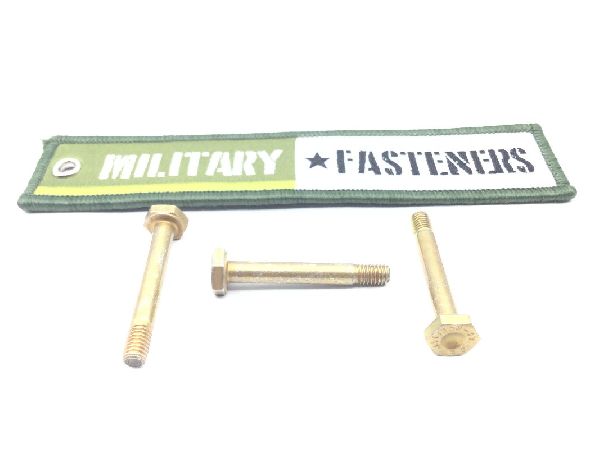

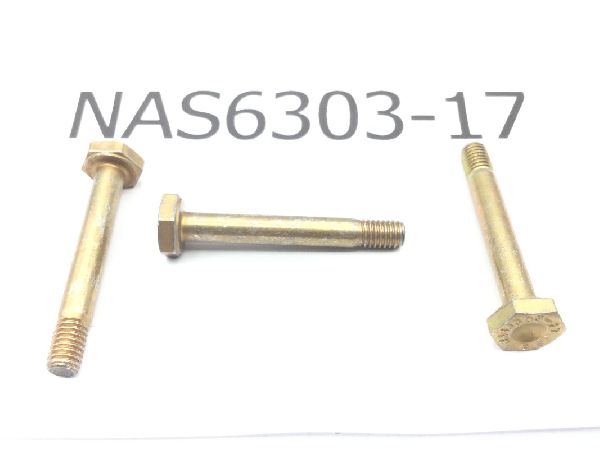

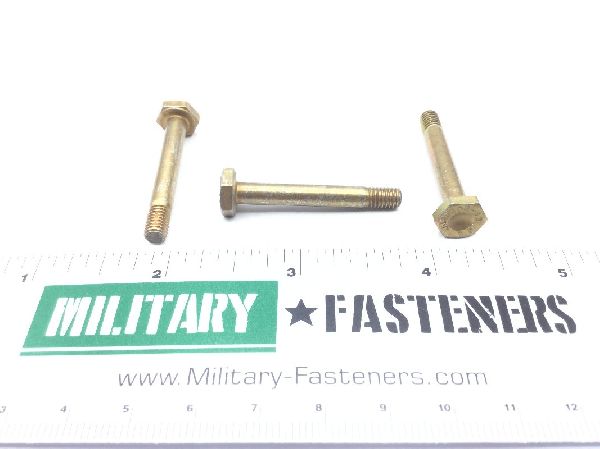

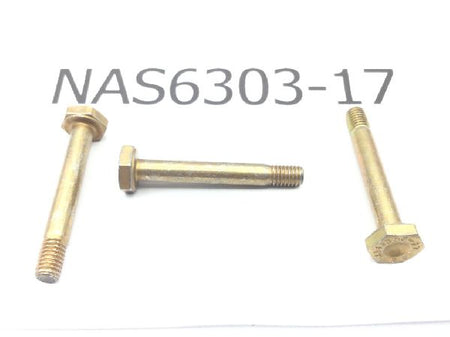

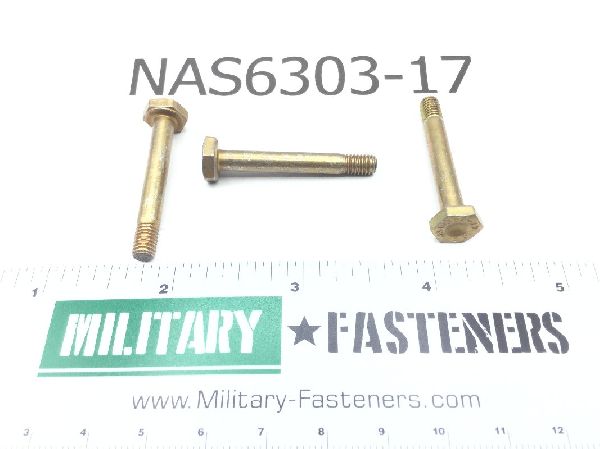

NAS6303-17 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Fastener Length: Between 1.370 inches and 1.400 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 1.052 inches and 1.072 inches
Head Height: Between 0.110 inches and 0.125 inches
Iii End Application: B-52 aircraft
Min. Tensile Strength (psi): 160000 pounds per square inch
Nonstandard Thread Pitch Diameter: -300.0 to 500.0 inches
Thread Direction: Right-hand
Thread Length: Between 0.298 inches and 0.348 inches
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
