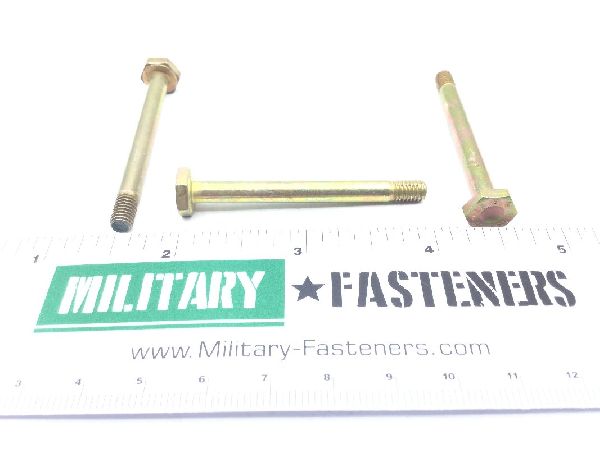

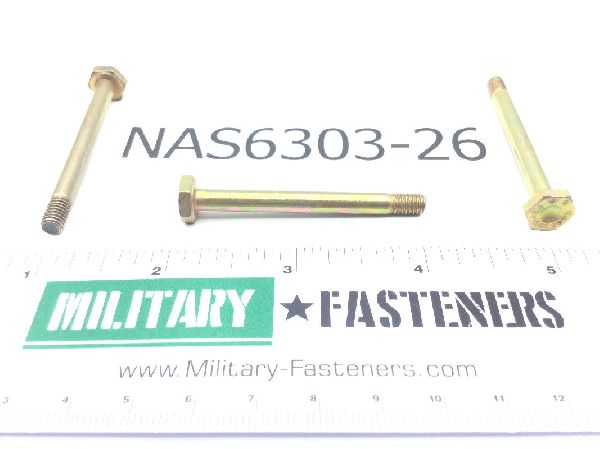

NAS6303-26 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $11.01

Units per Pack 5

Price per Pack $55.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $55.05

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-416 t2 c2 federal specification single treatment response

Thread Class

Fastener Length: Between 1.933 inches and 1.963 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 1.615 inches and 1.635 inches
Head Height: Between 0.110 inches and 0.125 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6303 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
