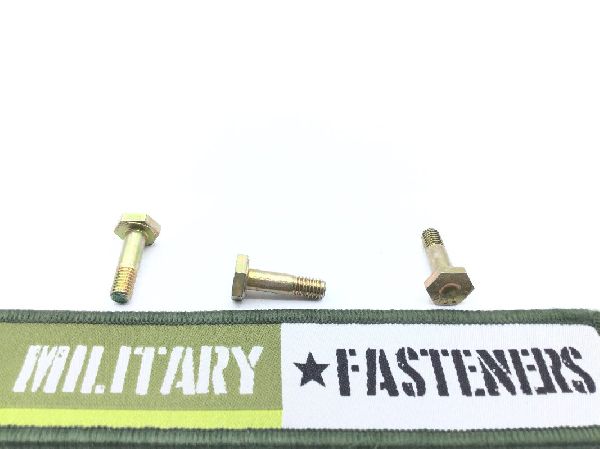

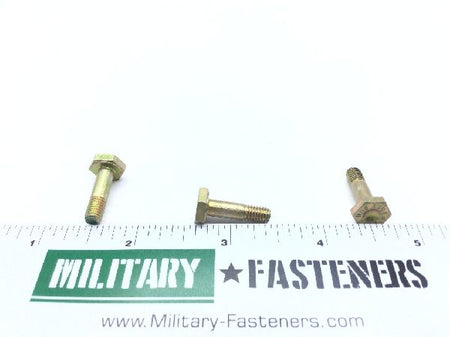

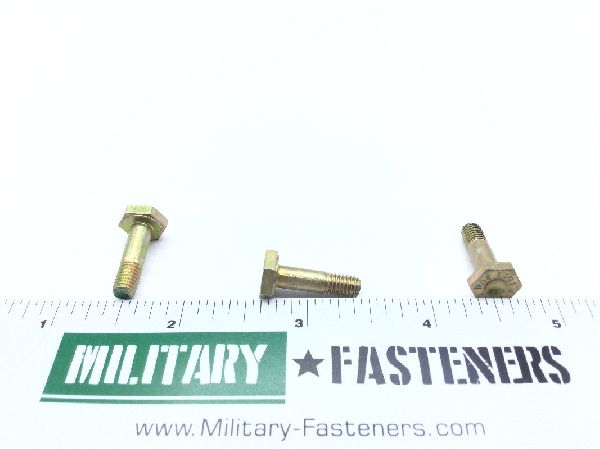

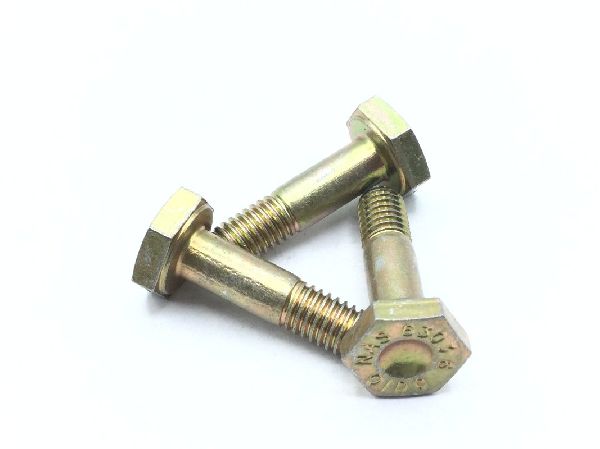

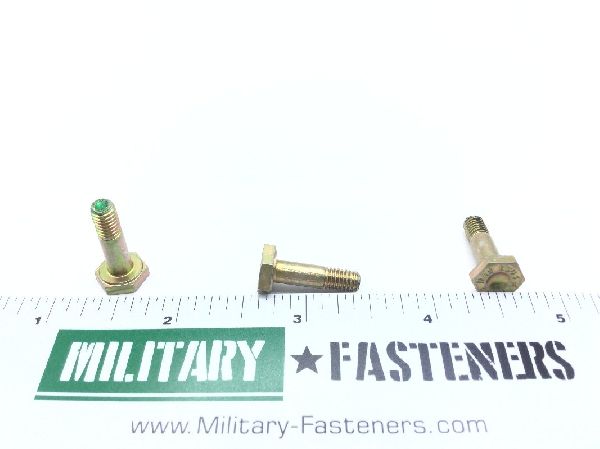

NAS6303-6 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.10

Units per Pack 25

Price per Pack $52.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.50

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Nas 672 assn standard single treatment response

Thread Class

Extended Washer Diameter: 1.045 inches
Extended Washer Thickness: 0.150 inches
Fastener Length: 3.123 inches
Grip Diameter: Between 0.6230 inches and 0.6240 inches
Grip Length: 2.250 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.618 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas630 professional/industrial association standard
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: 0.873 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.682 inches and 0.691 inches
