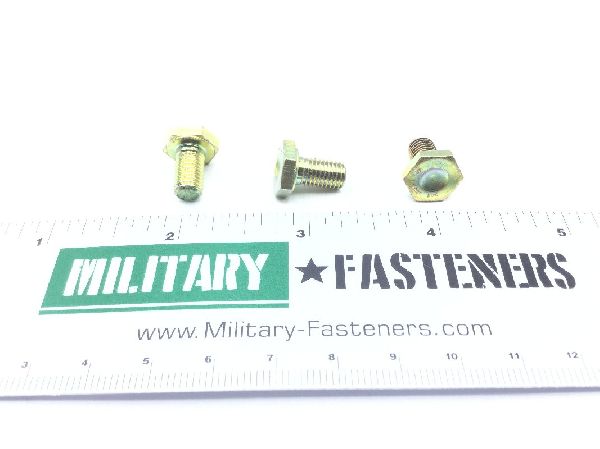

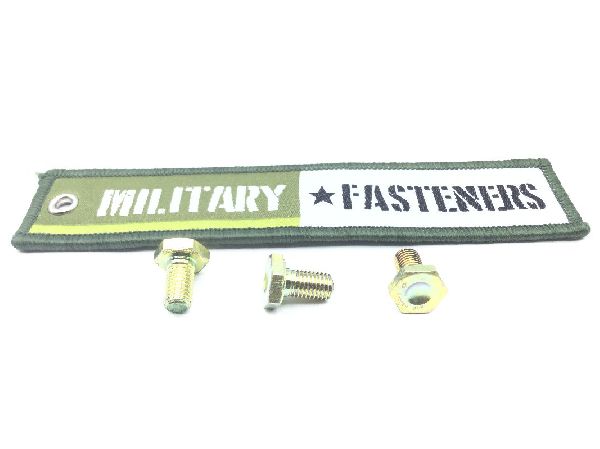

NAS6304-1 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $21.00

Units per Pack 2

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Thread Class

Fastener Length: Between 0.417 inches and 0.447 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.052 inches and 0.072 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Class 2 federal specification all material responses type 2 qq-p-416
Min. Tensile Strength (psi): 160000 pounds per square inch
Special Features: Green dye or paint on thread end
Specification Data: 80205-nas6304 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.429 inches and 0.439 inches
