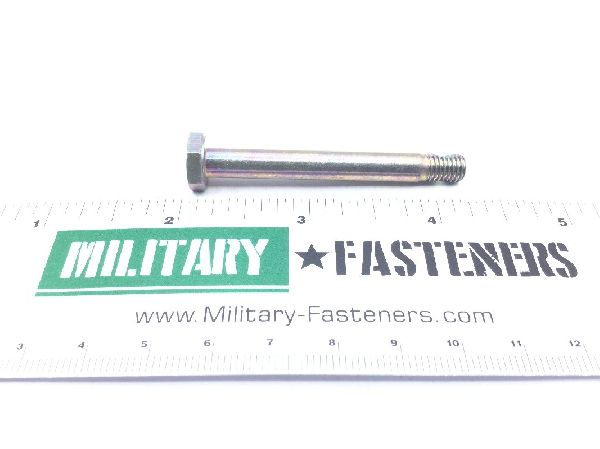

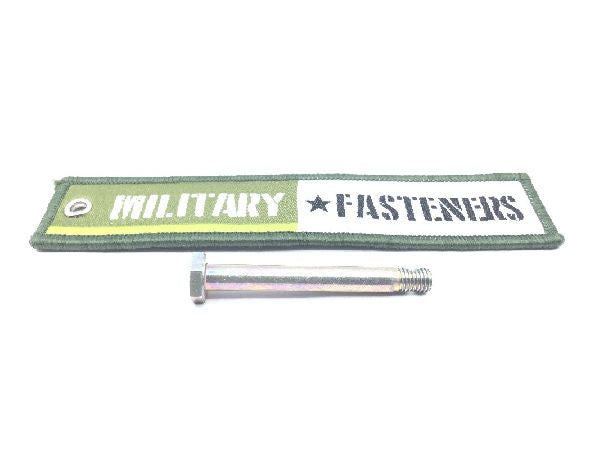

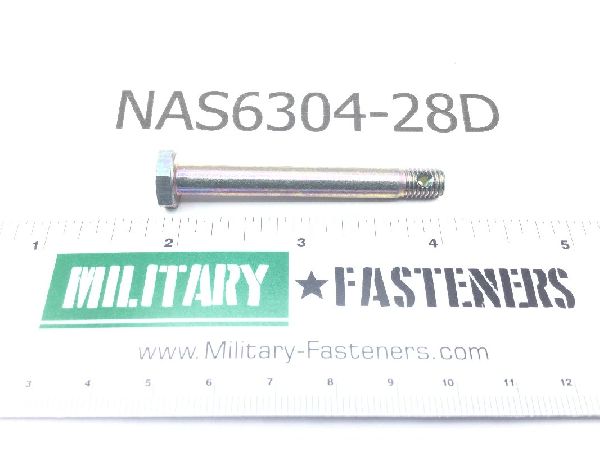

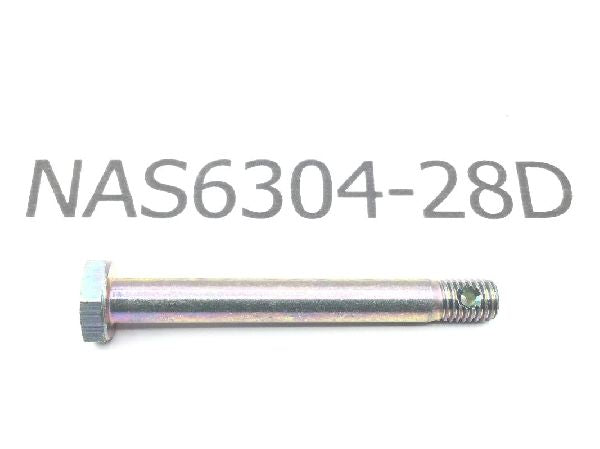

NAS6304-28D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $62.30

Units per Pack 1

Price per Pack $62.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $62.30

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Cl 2 federal specification single treatment response qq-c-320 cl 2 federal specification single treatment response grip type 2 qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.960 inches first hole
Fastener Length: Between 2.105 inches and 2.135 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 1.740 inches and 1.760 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Specification Data: 80205-nas6304 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head32.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.370 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.429 inches and 0.439 inches
