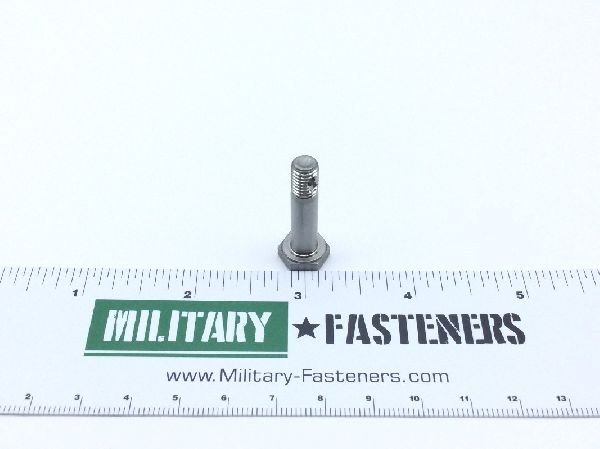

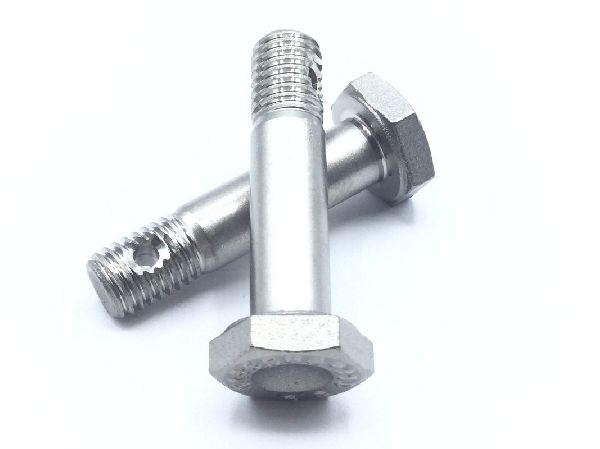

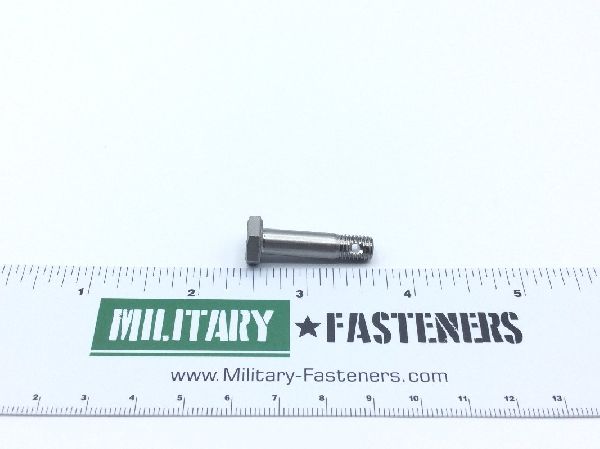

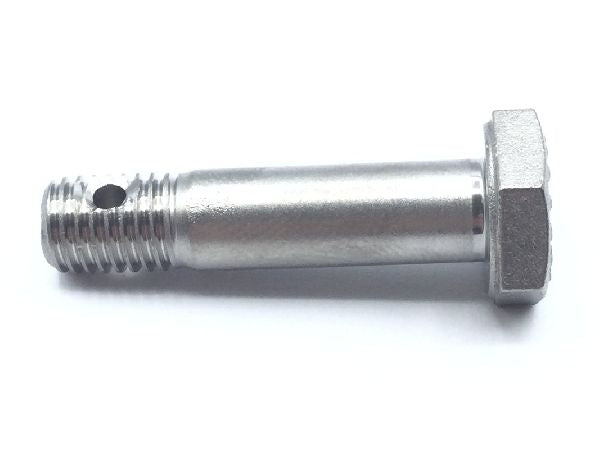

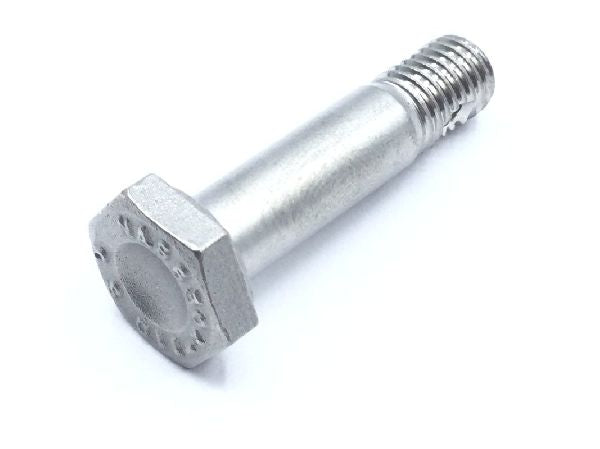

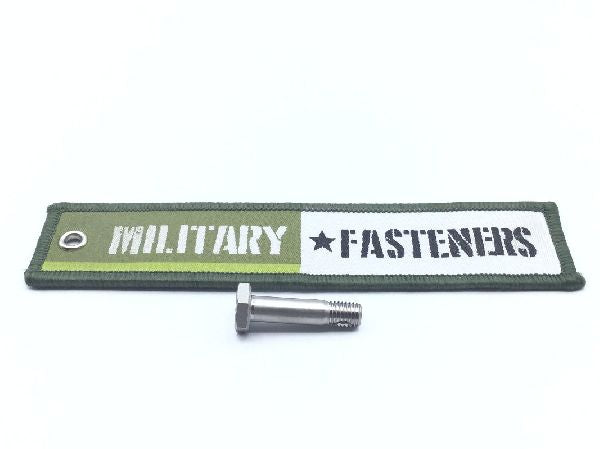

NAS6304U11D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.95

Units per Pack 10

Price per Pack $59.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $59.50

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Nas 4003 assn standard single treatment response

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.913 inches first hole and 0.963 inches first hole
Fastener Length: Between 1.043 inches and 1.073 inches
Grip Diameter: Between 0.249 inches and 0.2495 inches
Grip Length: Between 0.678 inches and 0.698 inches
Head Height: Between 0.125 inches and 0.14 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Specification Data: 80205-nas 6304 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.345 inches and 0.395 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
