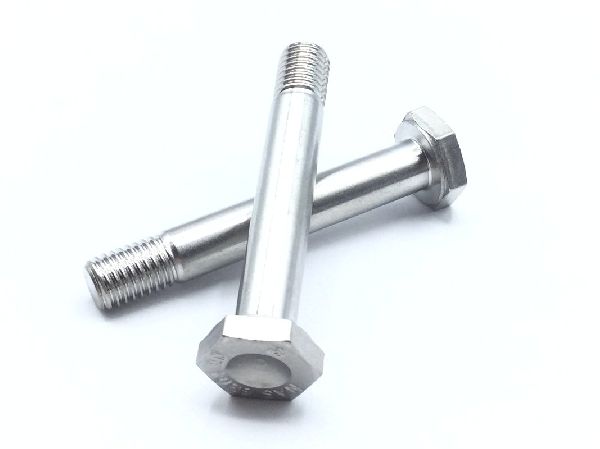

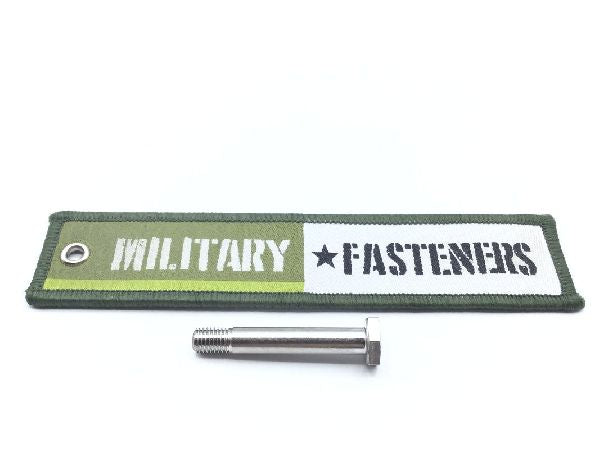

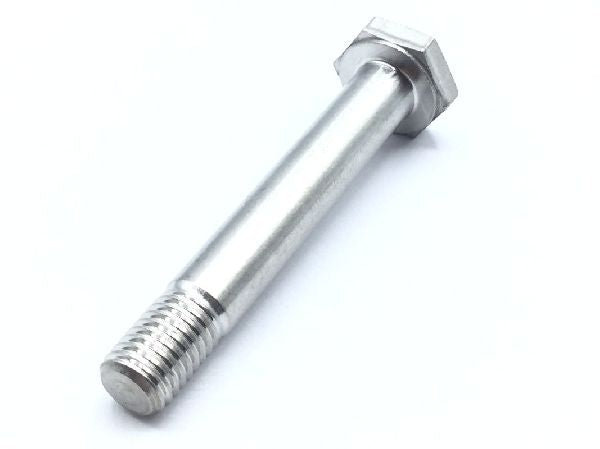

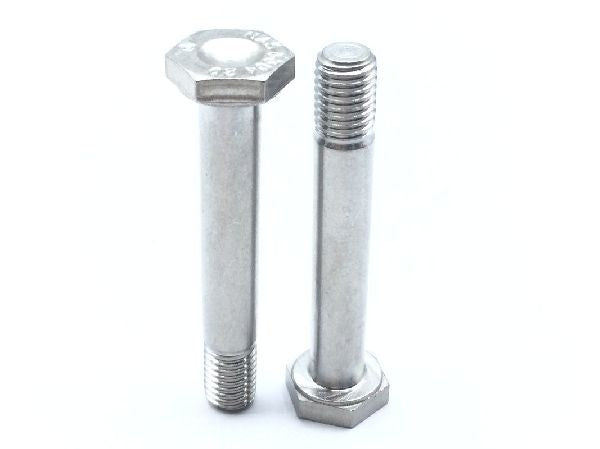

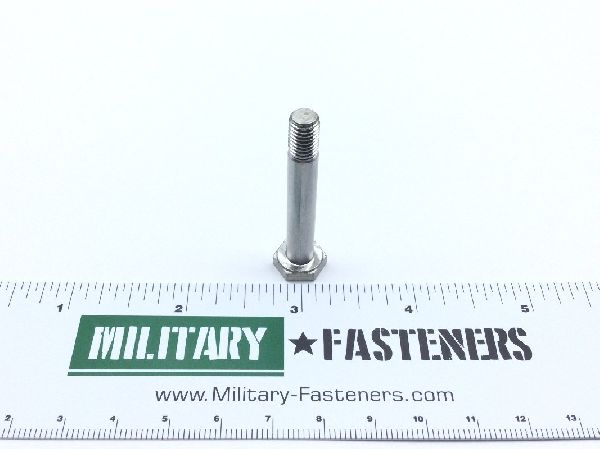

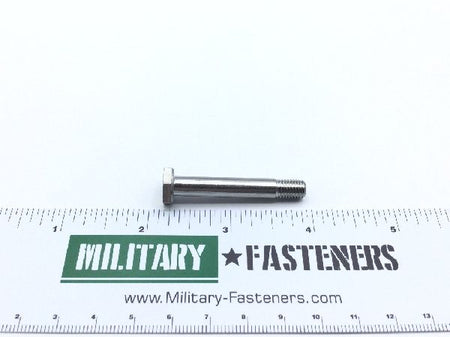

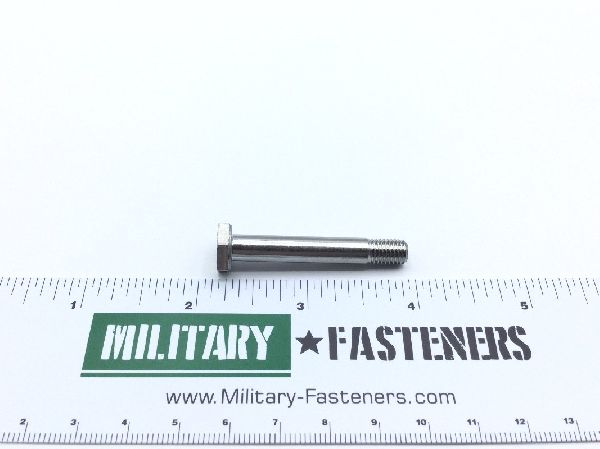

NAS6304U20 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $7.62

Units per Pack 10

Price per Pack $76.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $76.20

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 1.605 inches and 1.635 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 1.240 inches and 1.260 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Ams 5731 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6304 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.345 inches and 0.395 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.429 inches and 0.439 inches
