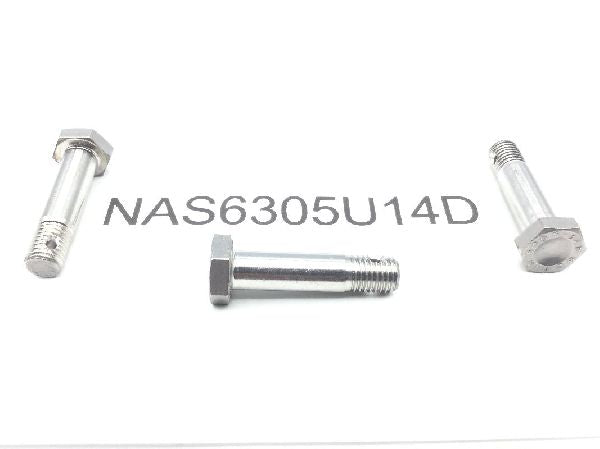

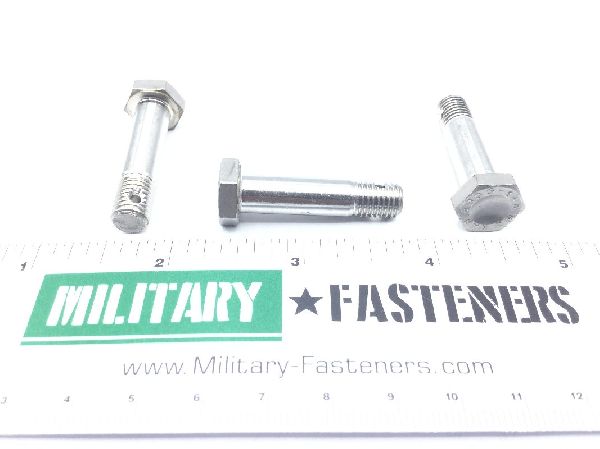

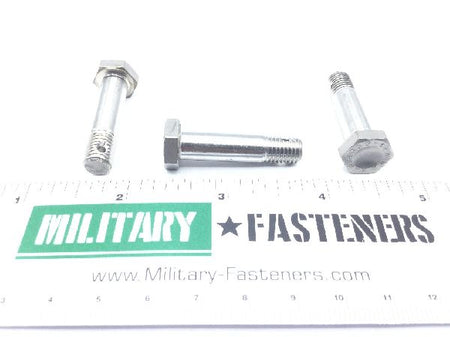

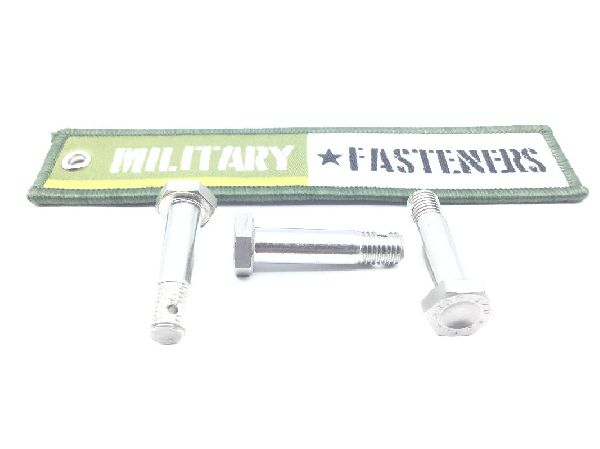

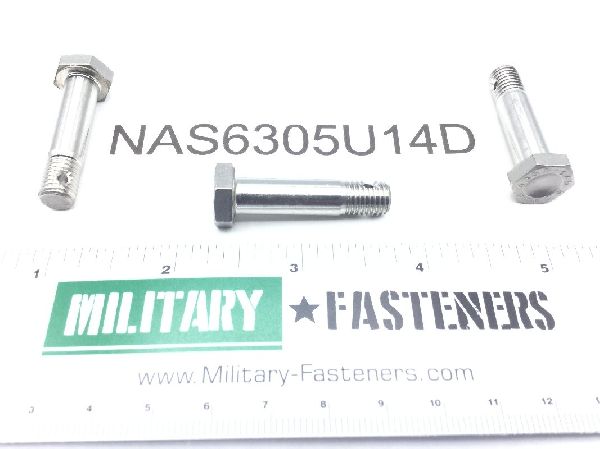

NAS6305U14D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Iron alloy 660

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.106 inches first hole and 1.156 inches first hole
Fastener Length: Between 1.298 inches and 1.328 inches
Grip Diameter: Between 0.3115 inches and 0.3120 inches
Grip Length: Between 0.865 inches and 0.885 inches
Head Height: Between 0.156 inches and 0.171 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Specification Data: 80205-nas6305 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.413 inches and 0.463 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
