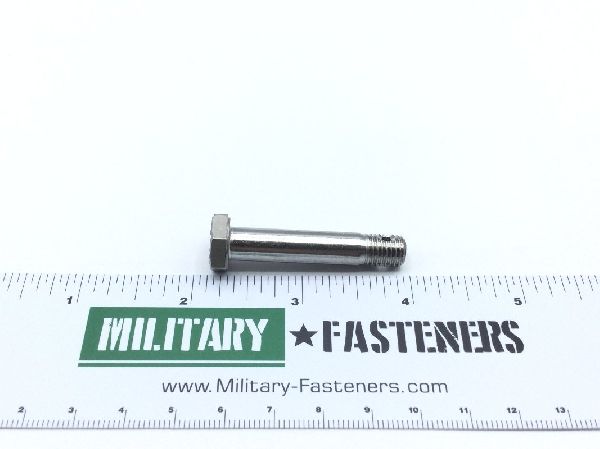

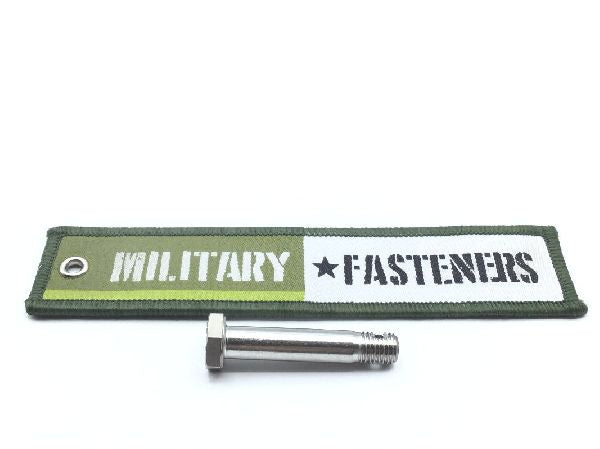

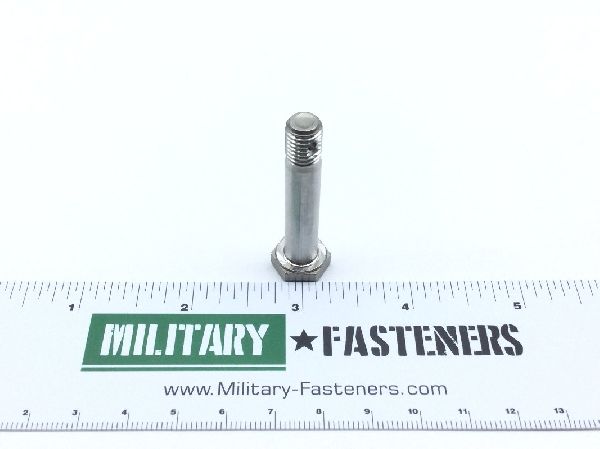

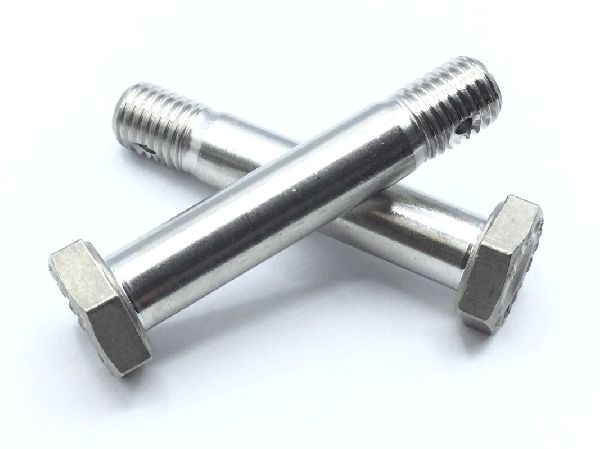

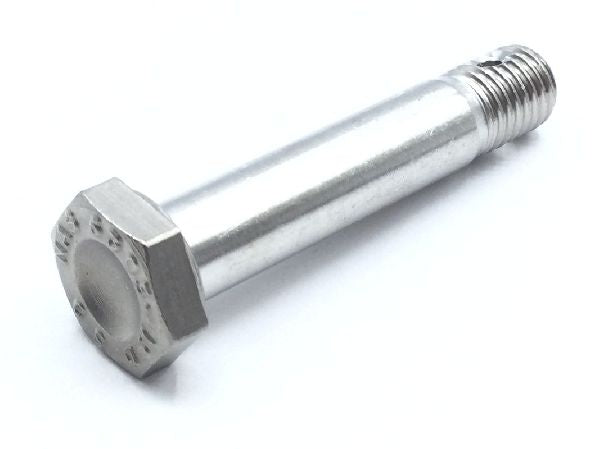

NAS6305U19D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $19.06

Units per Pack 2

Price per Pack $38.12

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $38.12

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 1.419 inches first hole and 1.469 inches first hole
Fastener Length: Between 1.611 inches and 1.641 inches
Grip Diameter: Between 0.3115 inches and 0.3120 inches
Grip Length: Between 1.178 inches and 1.198 inches
Head Height: Between 0.156 inches and 0.171 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Specification Data: 80205-nas6305 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.413 inches and 0.463 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
