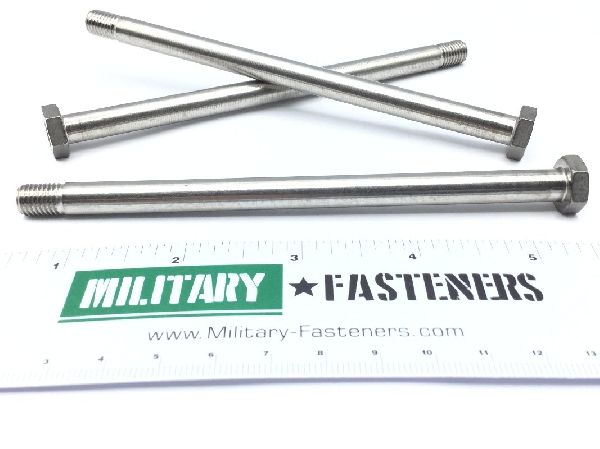

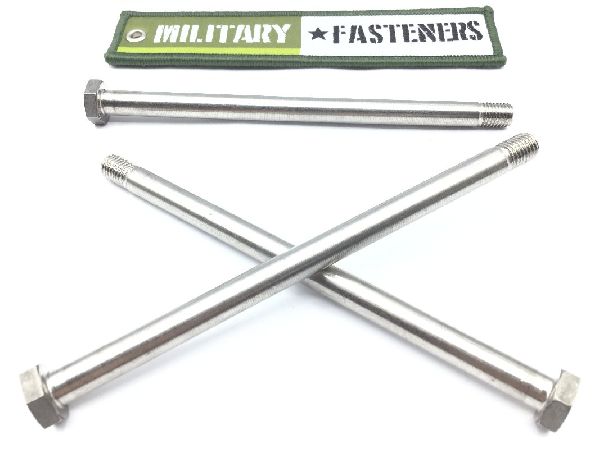

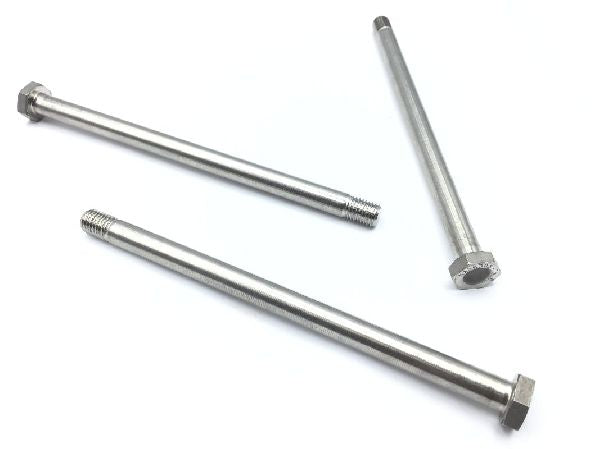

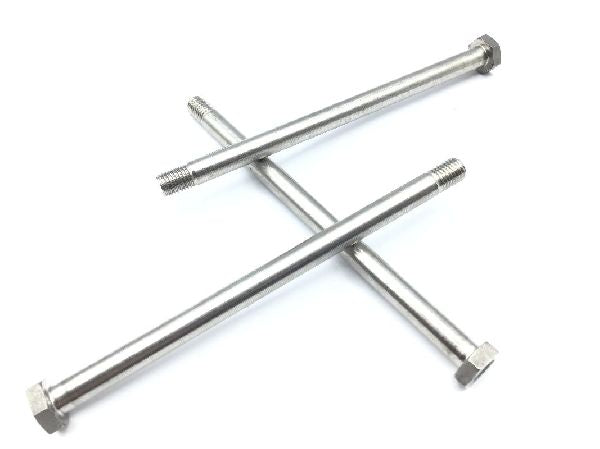

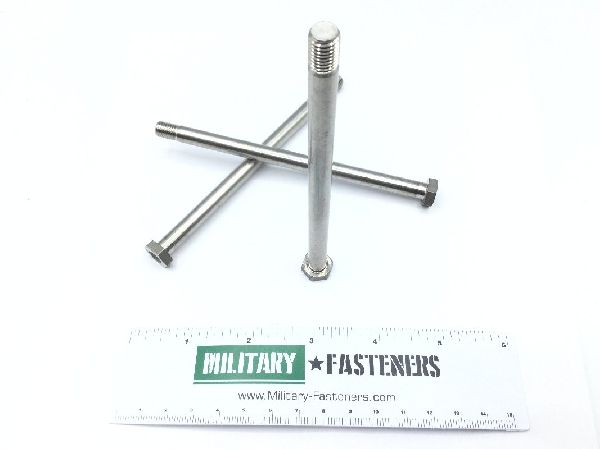

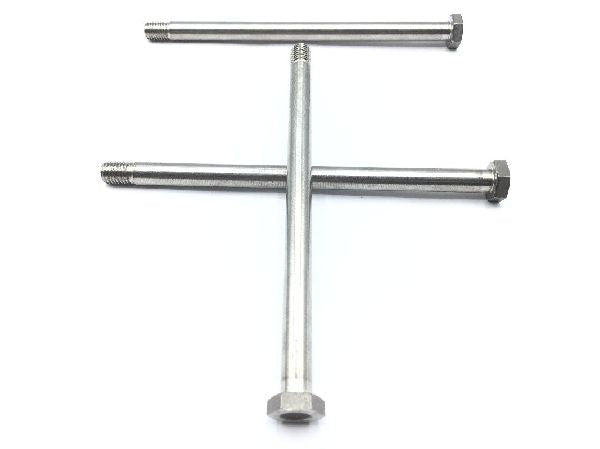

NAS6305U74 Shear Bolt

NAS6305U74 Shear Bolt (2)

NAS6305U74 Shear Bolt (3)

NAS6305U74 Shear Bolt (4)

NAS6305U74 Shear Bolt (5)

NAS6305U74 Shear Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS6305U74 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $11.28

Units per Pack 5

Price per Pack $56.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $56.40

Add item to quote

Head Style

Dished hexagon

Material

Stainless Steel

Thread Class

3a

Fastener Length: 5.063 inches
Grip Diameter: 0.3120 inches
Grip Length: 4.625 inches
Head Height: 0.163 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.6250 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.497 inches
