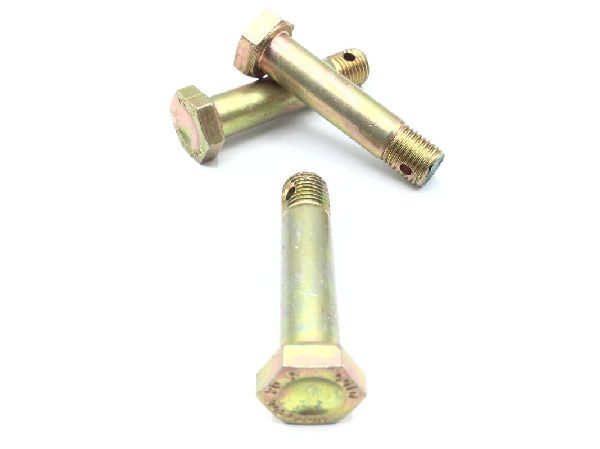

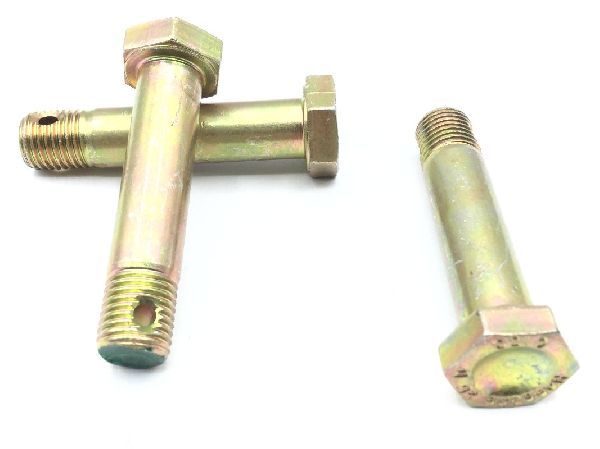

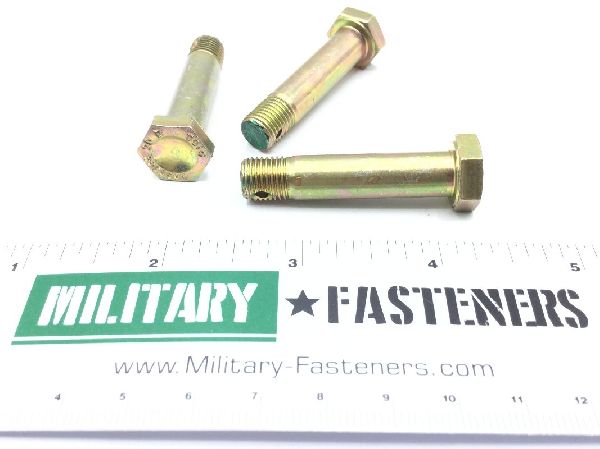

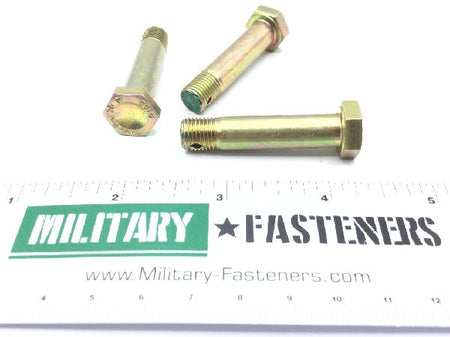

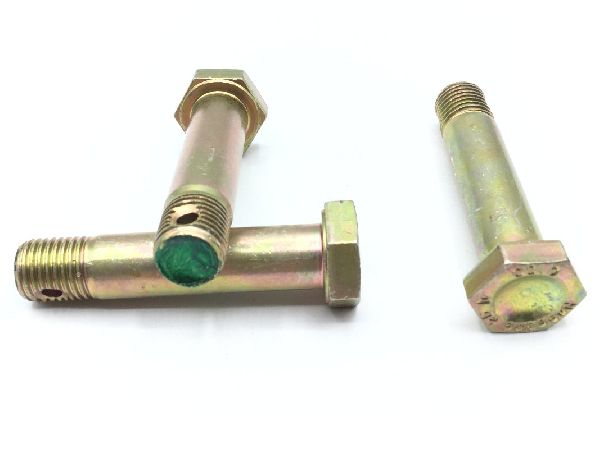

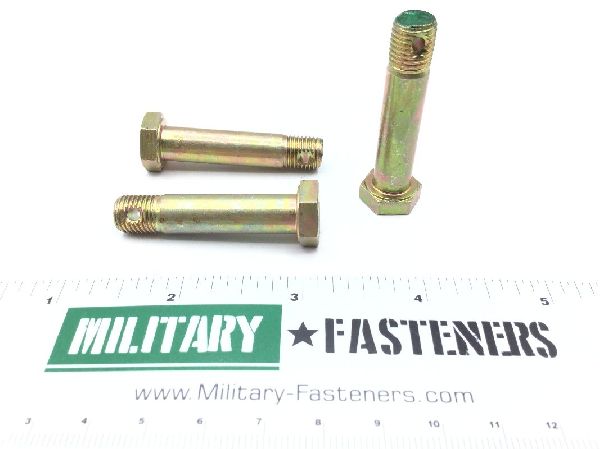

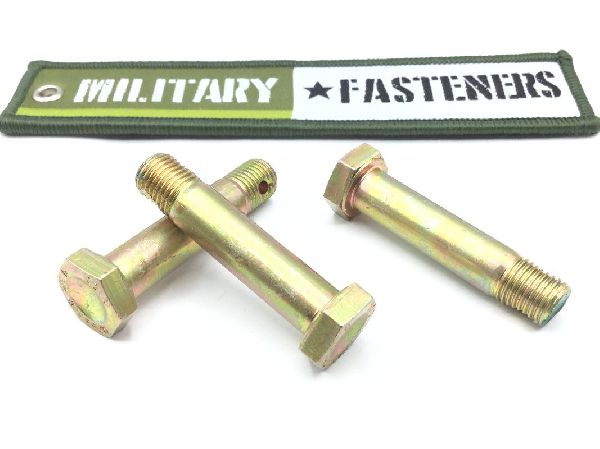

NAS6306-20D Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $21.48

Units per Pack 5

Price per Pack $107.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $107.40

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-416 type 2 federal specification 1st treatment response

Thread Class

End Application: C-17a aircraft
Fastener Length: 1.704 inches
Grip Diameter: Between 0.3740 inches and 0.3745 inches
Grip Length: 1.250 inches
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Ams 5731 assn standard 1st material response or ams 5737 assn standard all material responses
Min. Tensile Strength (psi): 160000 pounds per square inch
Part Name Assigned By Controlling Agency: 160 ksi ftu nonlocking reduced major thread dia. short thread a286 cres close tolerance hex head tension bolt
Specification Data: 80205-nas6306 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.454 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
