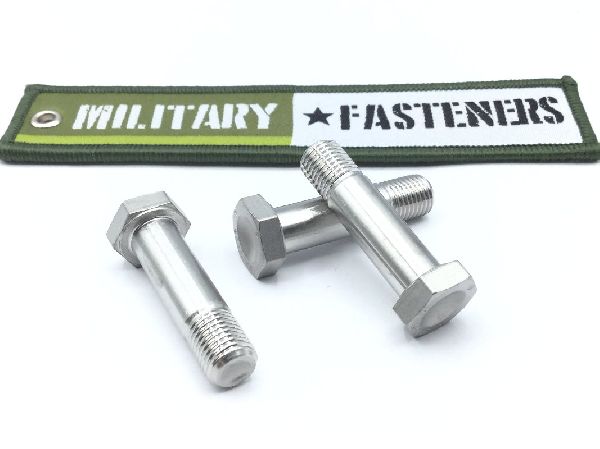

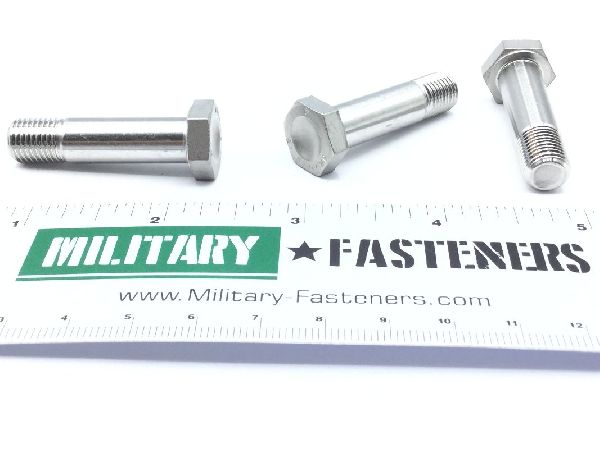

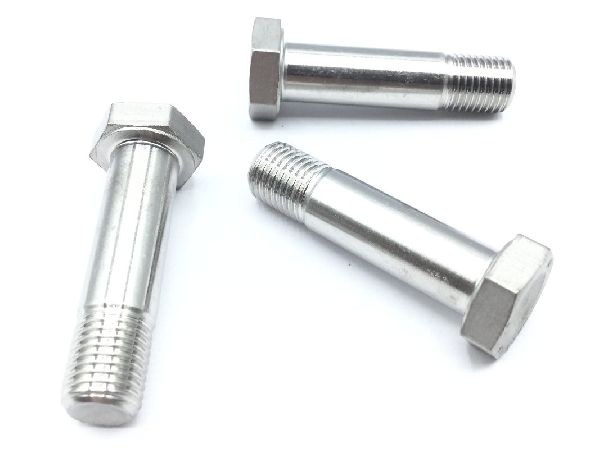

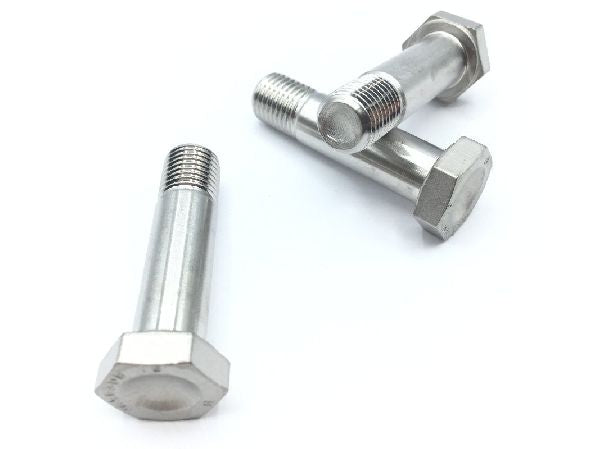

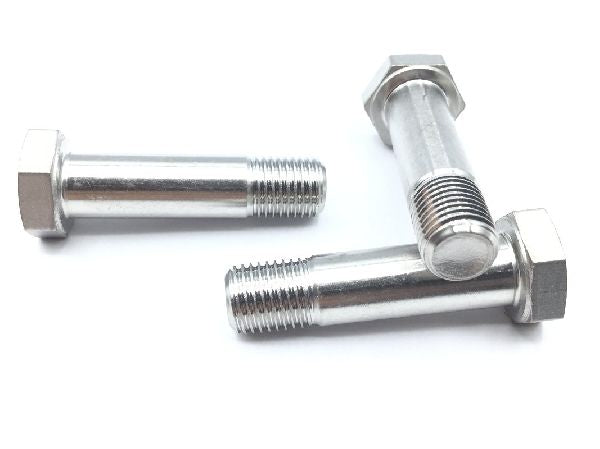

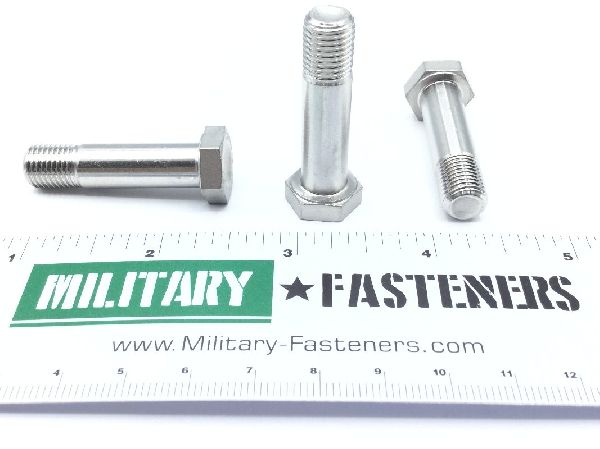

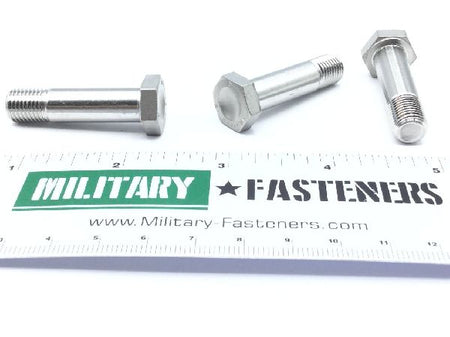

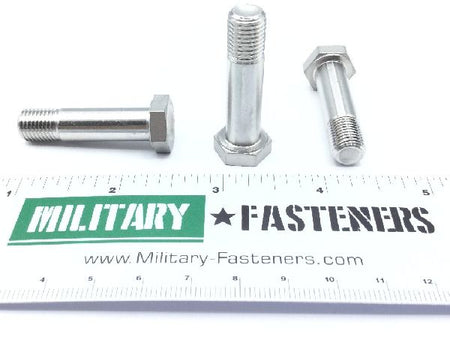

NAS6306U16 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $18.71

Units per Pack 5

Price per Pack $93.55

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $93.55

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Thread Class

Fastener Length: Between 1.439 inches and 1.469 inches
Grip Diameter: Between 0.3740 inches and 0.3745 inches
Grip Length: Between 0.990 inches and 1.010 inches
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Ams5731 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6036 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.429 inches and 0.479 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.553 inches and 0.564 inches
