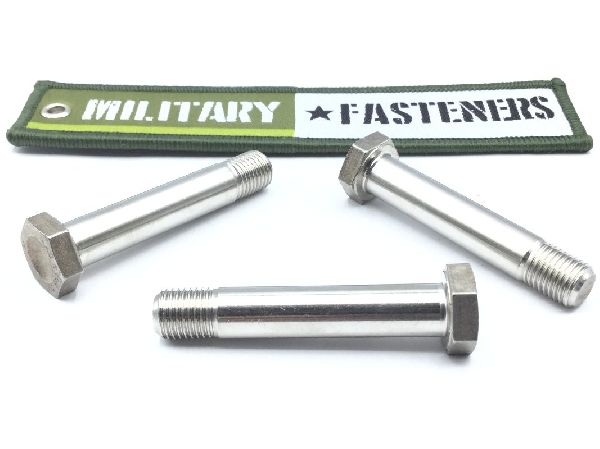

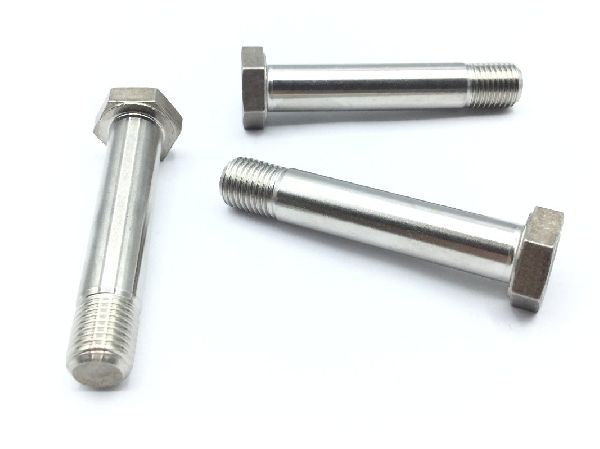

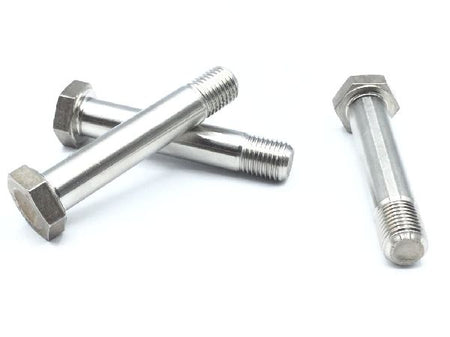

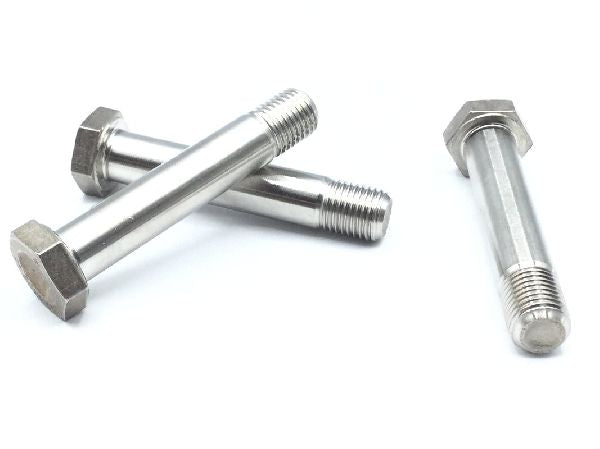

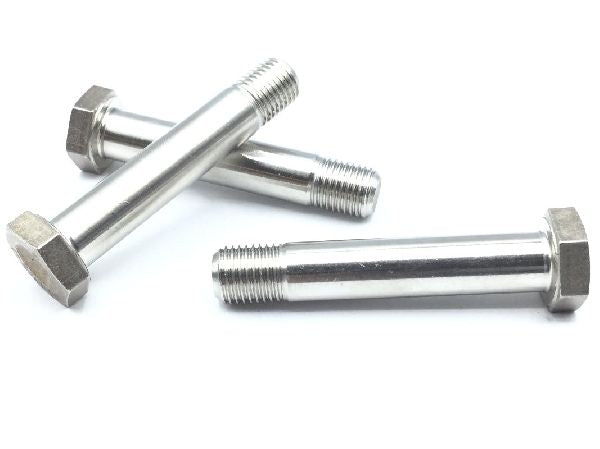

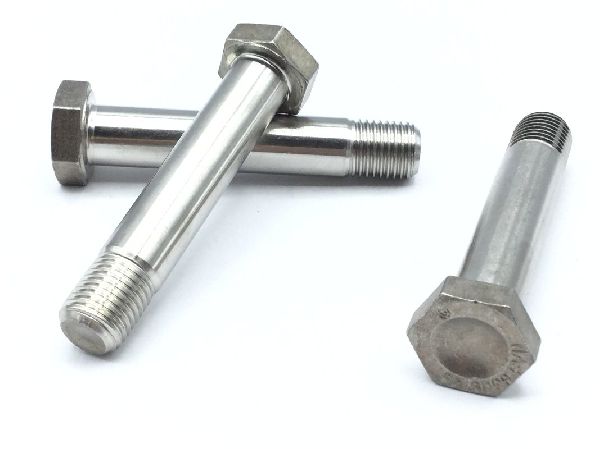

NAS6306U25 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $30.42

Units per Pack 2

Price per Pack $60.84

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $60.84

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 2.001 inches and 2.031 inches
Grip Diameter: Between 0.3740 inches and 0.3745 inches
Grip Length: Between 1.552 inches and 1.572 inches
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6306 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.429 inches and 0.479 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
