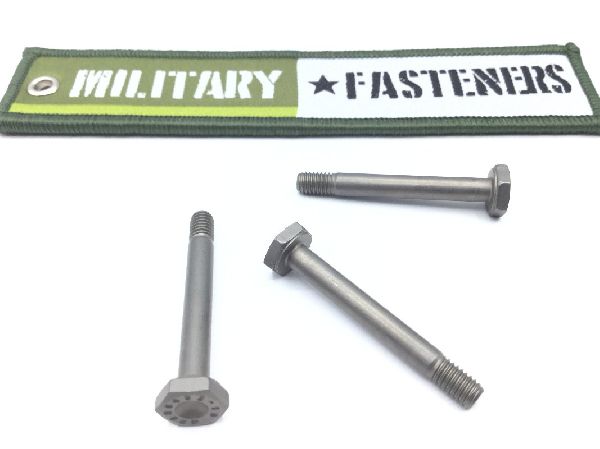

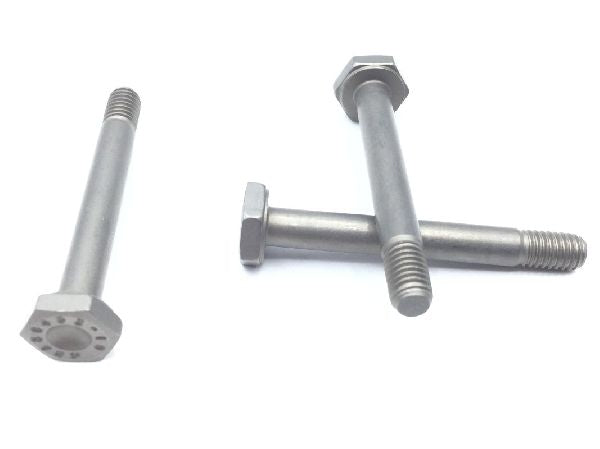

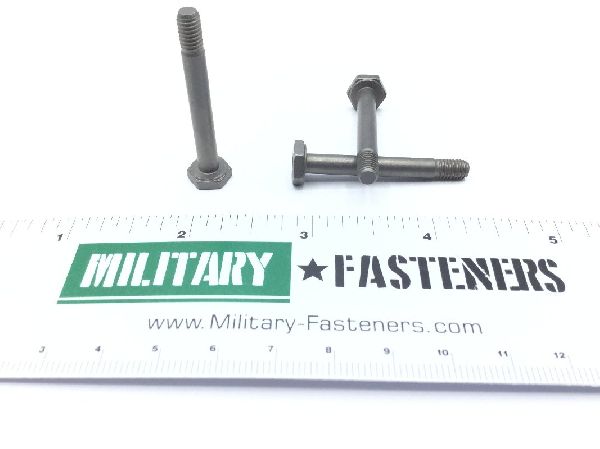

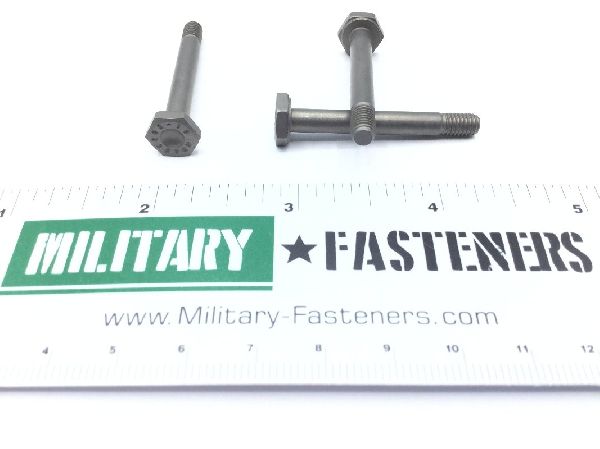

NAS6403U19 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $12.40

Units per Pack 5

Price per Pack $62.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $62.00

Add item to quote

Head Style

Dished hexagon

Material

Titanium alloy

Thread Class

Fastener Length: Between 1.496 inches and 1.526 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.802 inches and 0.822 inches
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6403 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.298 inches and 0.348 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
