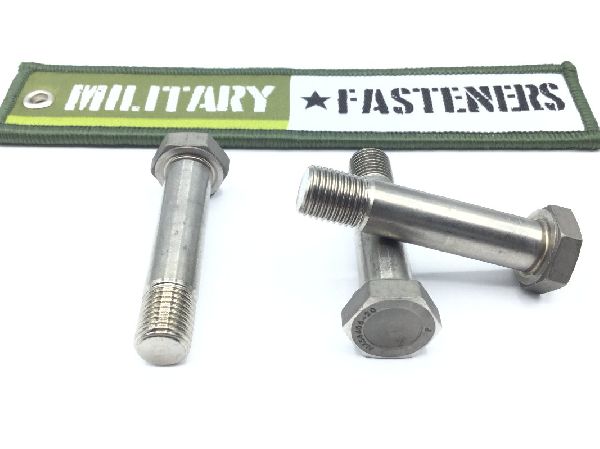

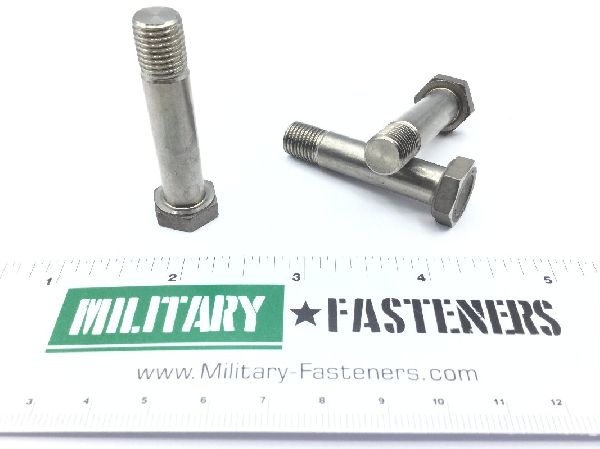

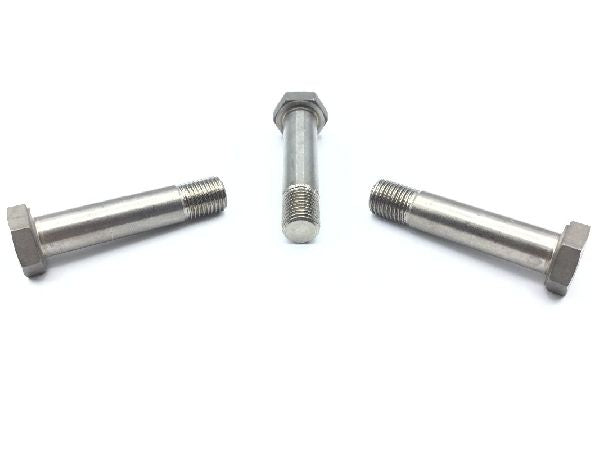

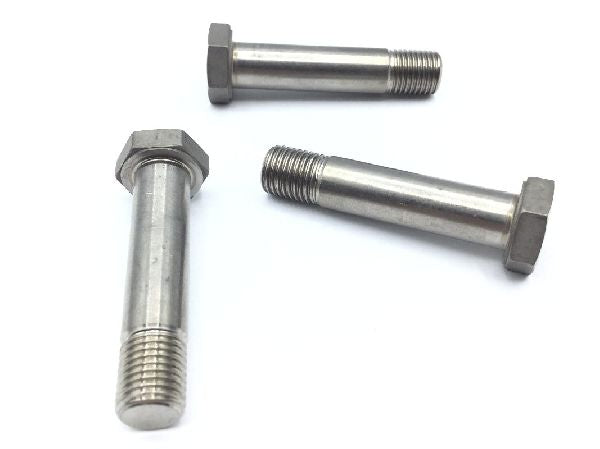

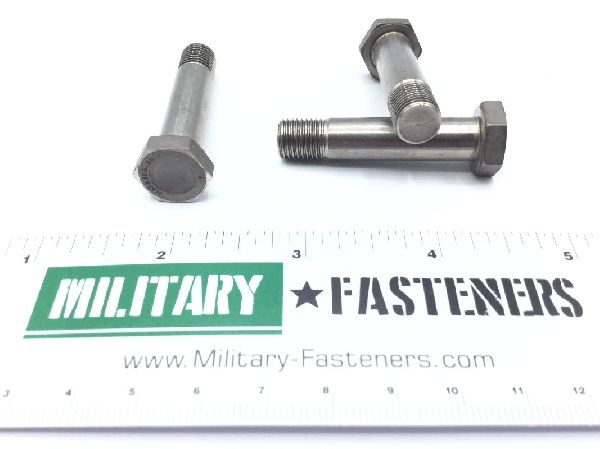

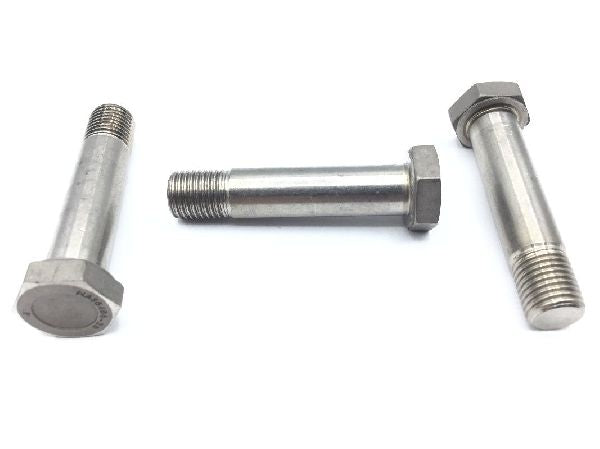

NAS6406U20 Shear Bolt

NSN: 5306-01-057-0329
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $9.63

Units per Pack 5

Price per Pack $48.15

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.15

Add item to quote

Head Style

Dished hexagon

Material

Titanium alloy

Thread Class

Fastener Length: Between 1.689 inches and 1.719 inches
Grip Diameter: Between 0.3740 inches and 0.3745 inches
Grip Length: Between 1.240 inches and 1.260 inches
Head Height: Between 0.188 inches and 0.203 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6406 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.429 inches and 0.479 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
