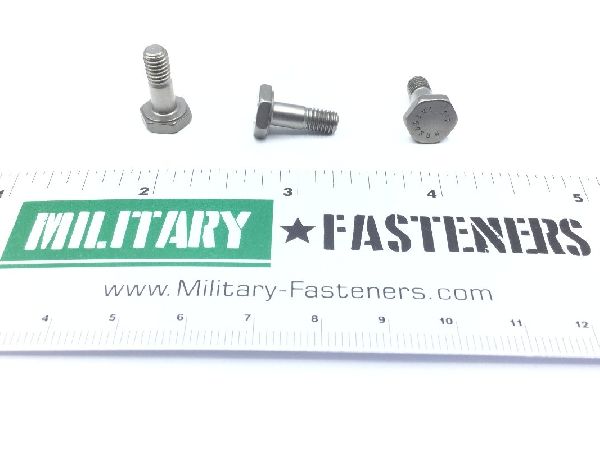

NAS653V4 Shear Bolt

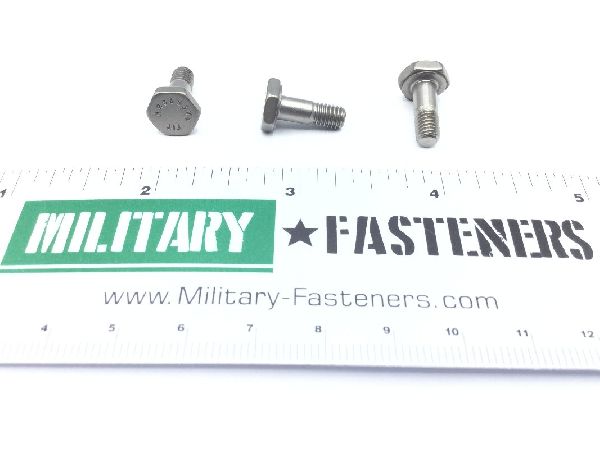

NAS653V4 Shear Bolt (2)

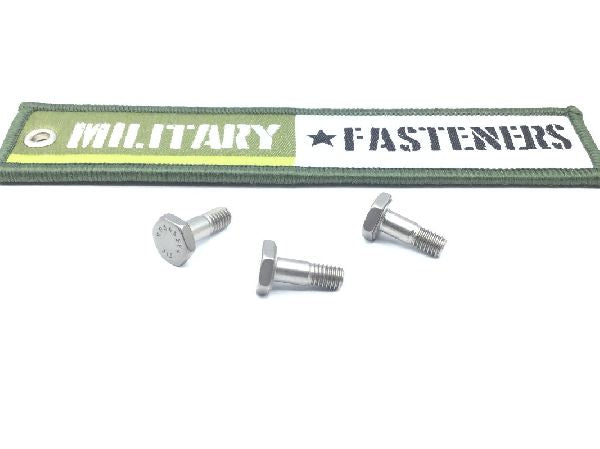

NAS653V4 Shear Bolt (3)

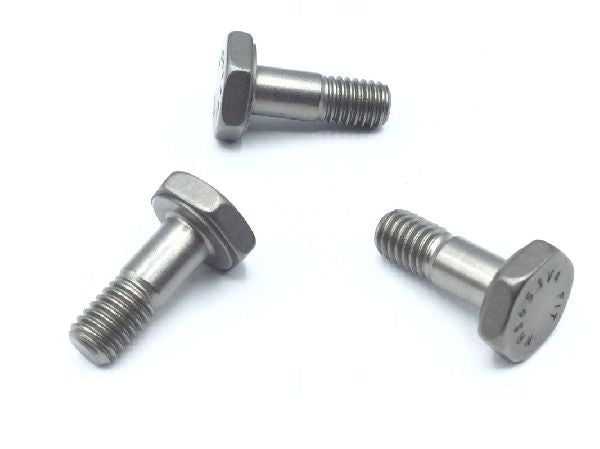

NAS653V4 Shear Bolt (4)

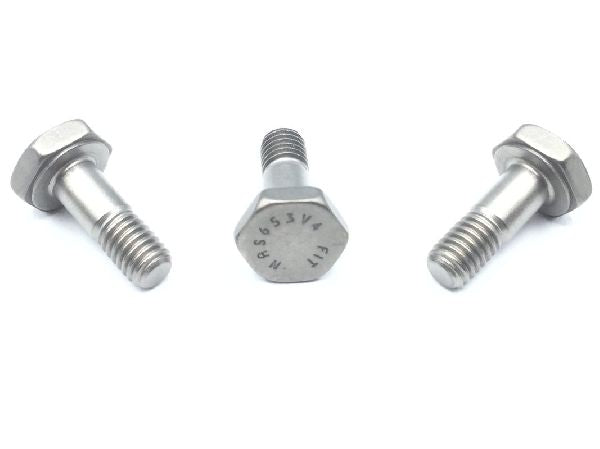

NAS653V4 Shear Bolt (5)

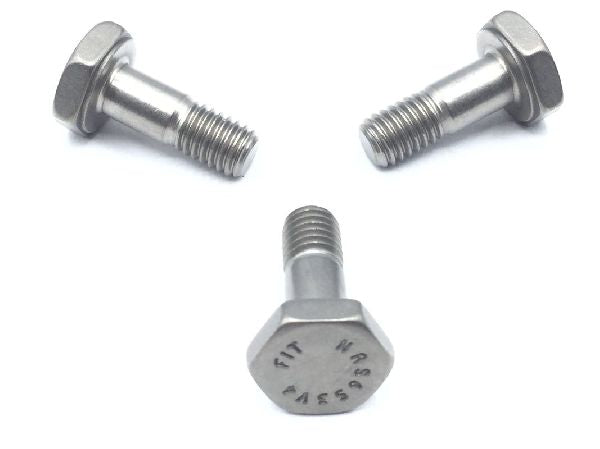

NAS653V4 Shear Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS653V4 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.20

Units per Pack 10

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Hexagon

Material

Titanium alloy uns r54520

Thread Class

3a

Fastener Length: 0.526 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: 0.250 inches
Head Height: 0.110 inches
Material Specification: 6al-4v assn standard single material response nas 621
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
