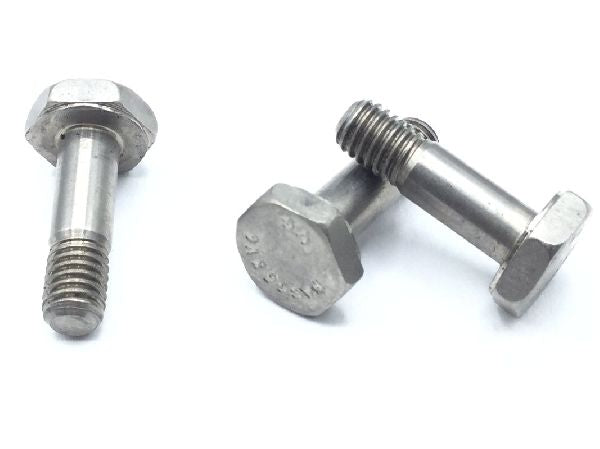

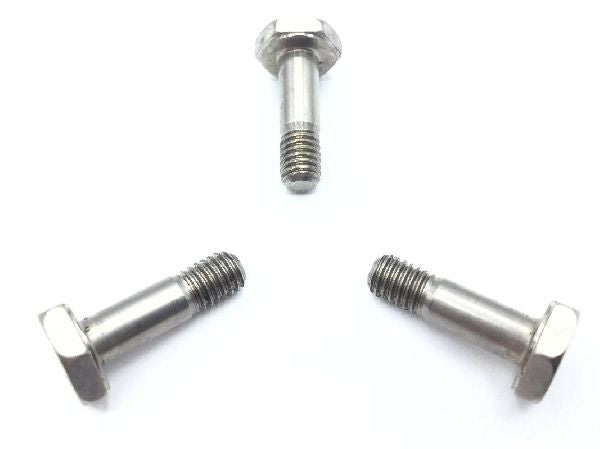

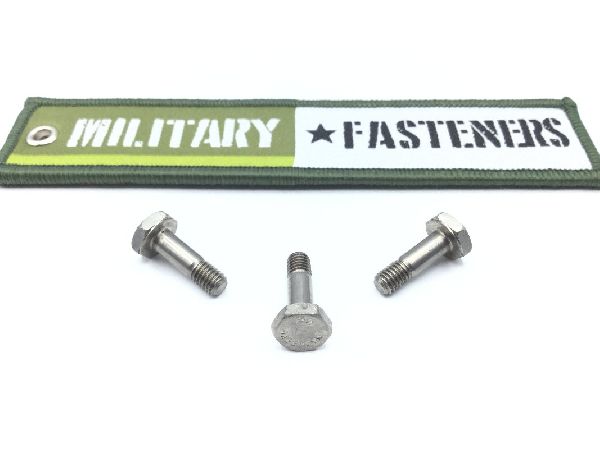

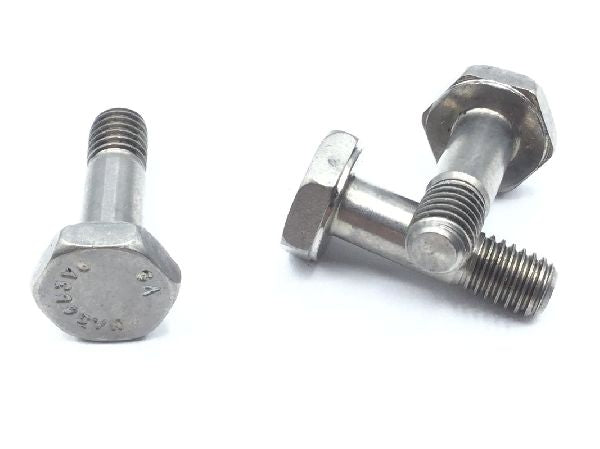

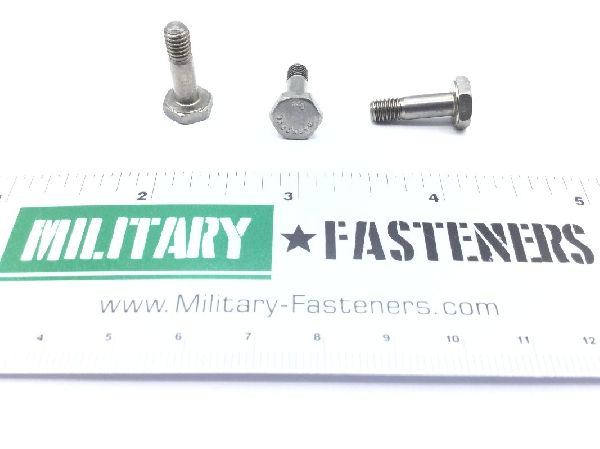

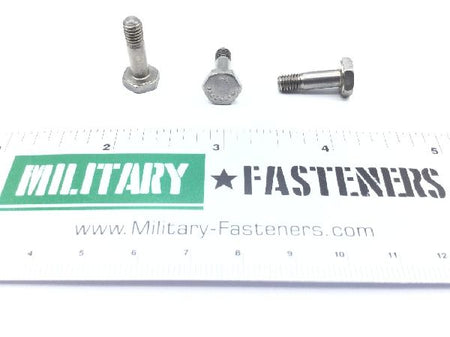

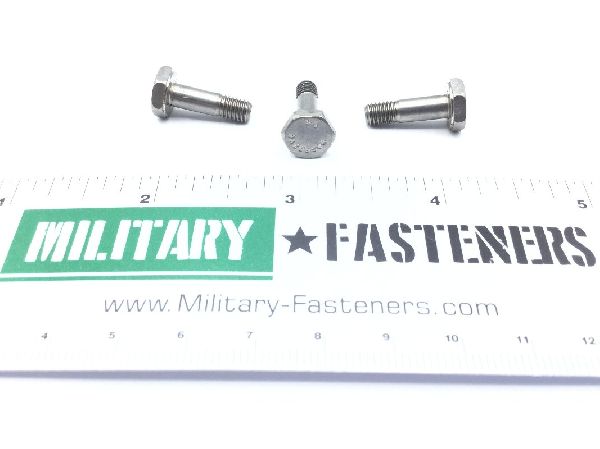

NAS653V6 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $6.86

Units per Pack 10

Price per Pack $68.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $68.60

Add item to quote

Head Style

Hexagon

Material

Titanium alloy

Thread Class

Fastener Length: 0.651 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 3.115 inches and 3.135 inches
Head Height: 0.110 inches
Material Specification: Nas621 alloy 6a1-4v assn standard single material response
Specification Data: 80205-nas653 professional/industrial association standard
Surface Finish: 16.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
