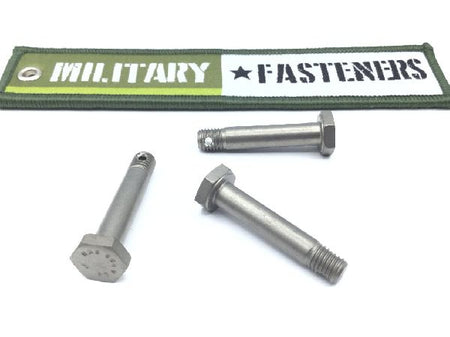

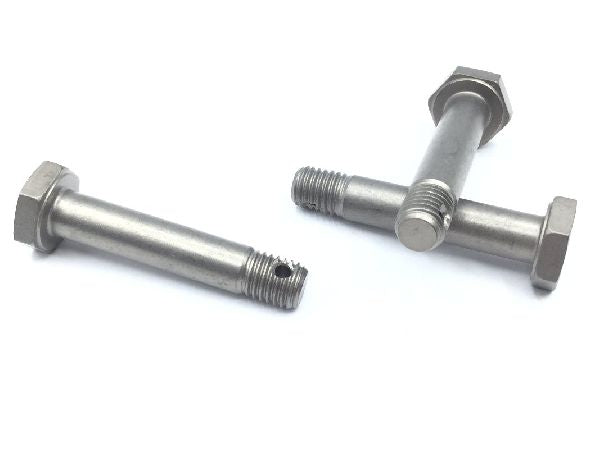

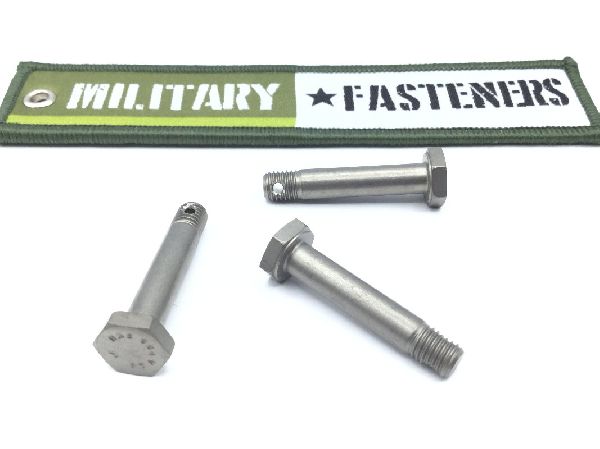

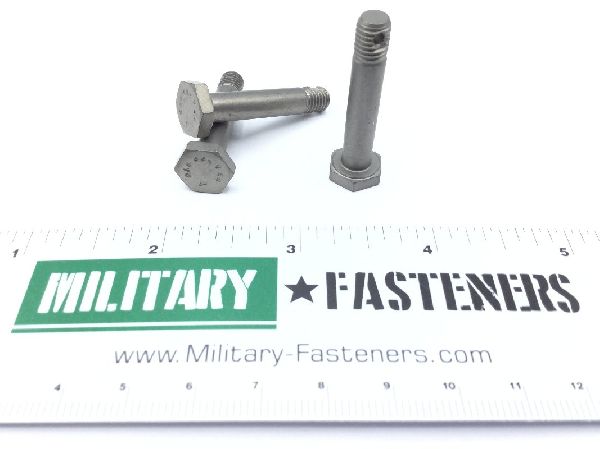

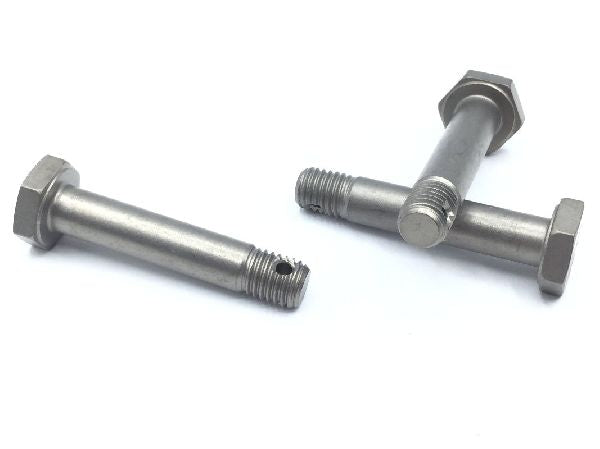

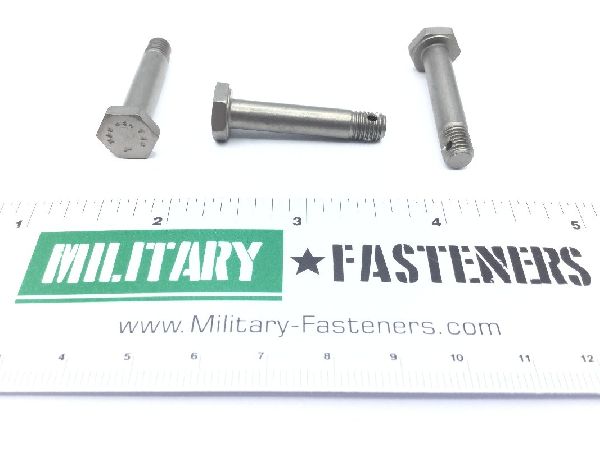

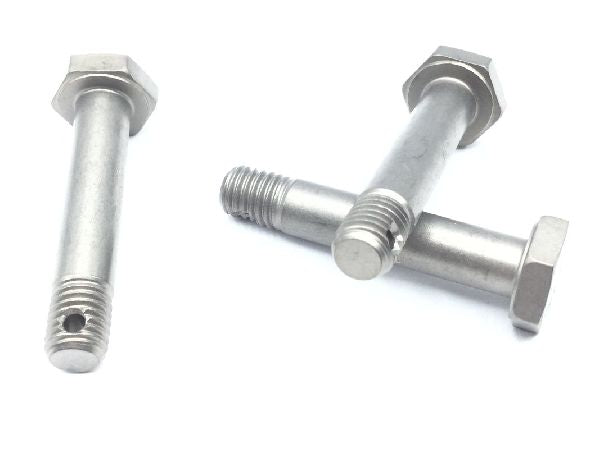

NAS654V16D Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Titanium alloy uns r54520

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.173 inches first hole and 1.223 inches first hole
Fastener Length: Between 1.301 inches and 1.331 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 0.990 inches and 1.010 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: 6al-4v assn standard single material response nas 621
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.291 inches and 0.341 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
