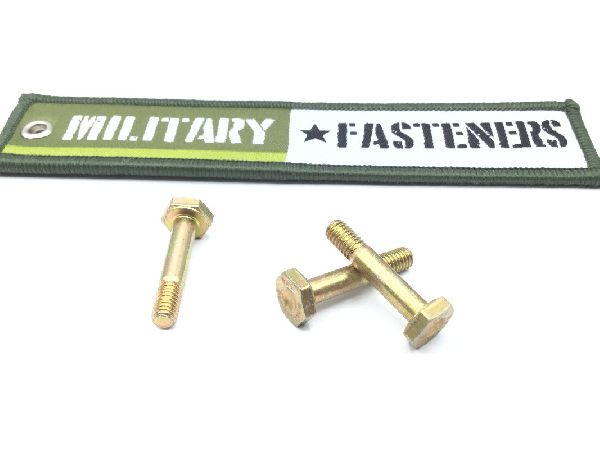

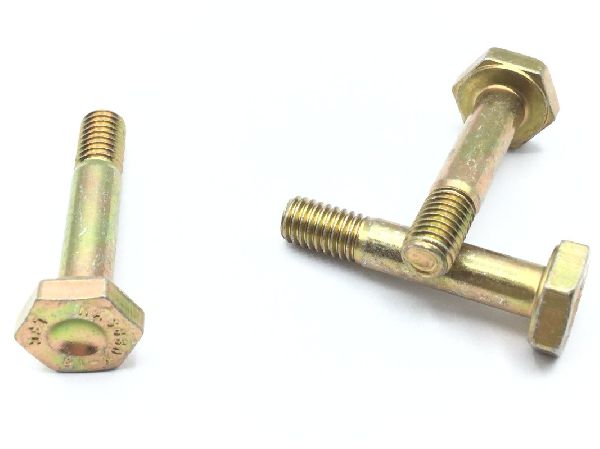

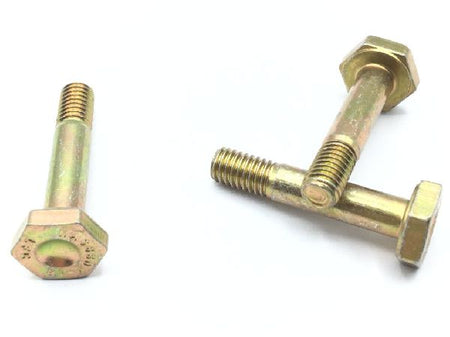

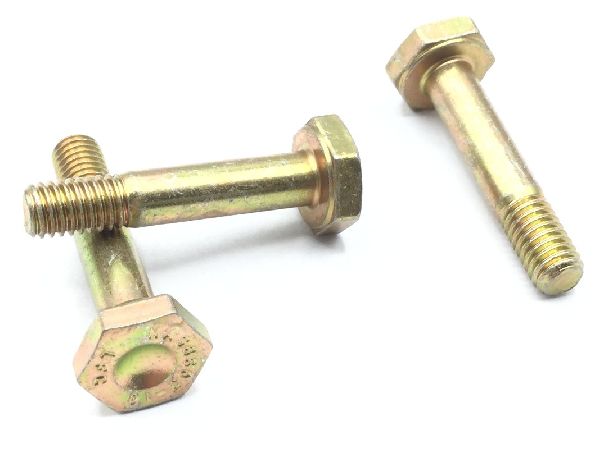

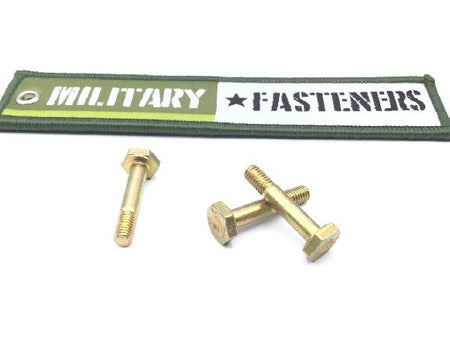

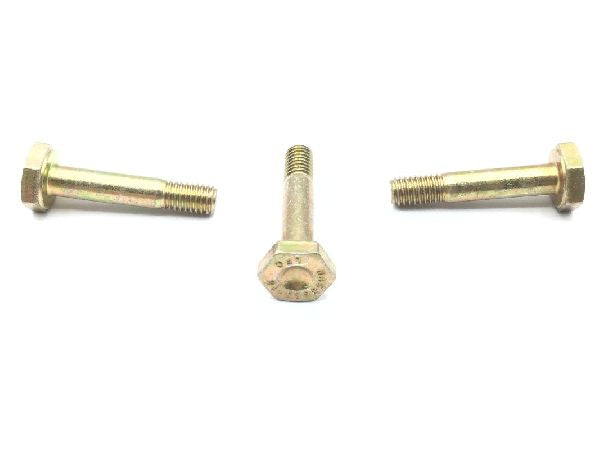

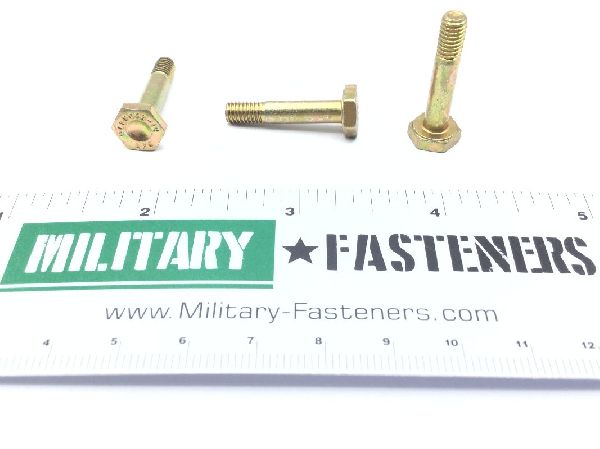

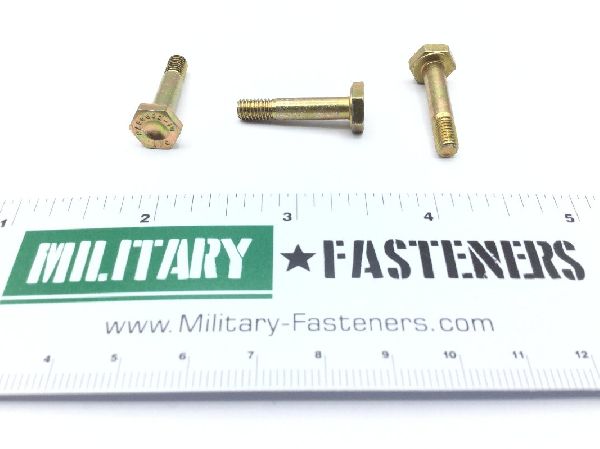

NAS6603-10 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 0.955 inches and 0.985 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.615 inches and 0.635 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.110 inches and 0.325 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6603 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.320 inches and 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
