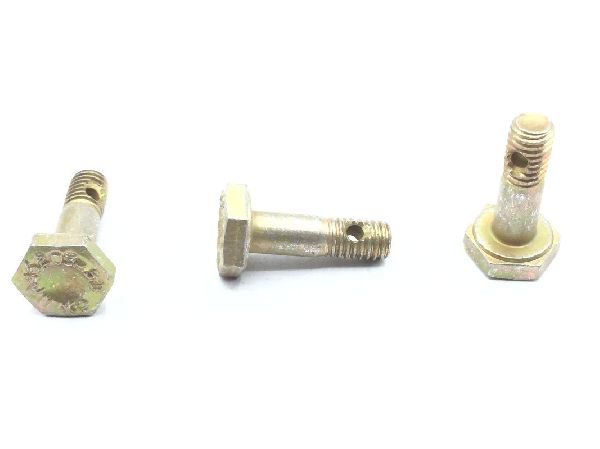

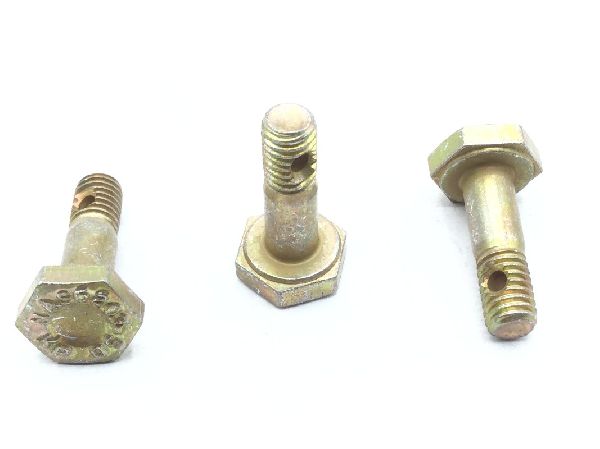

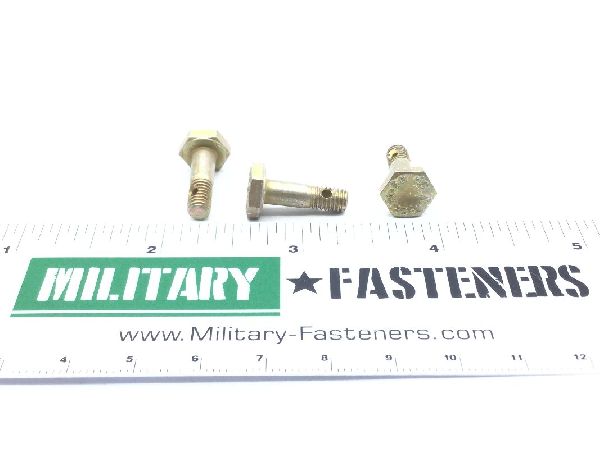

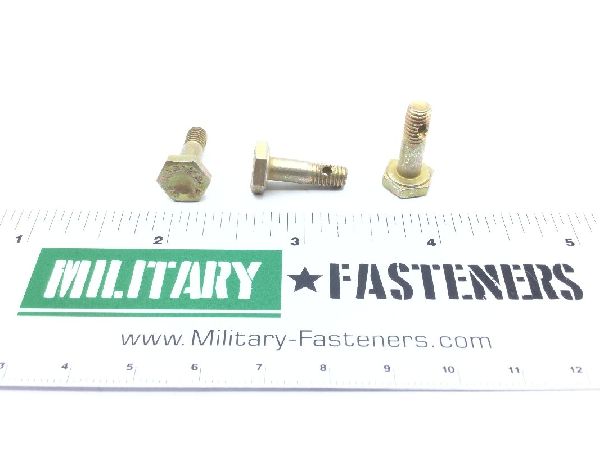

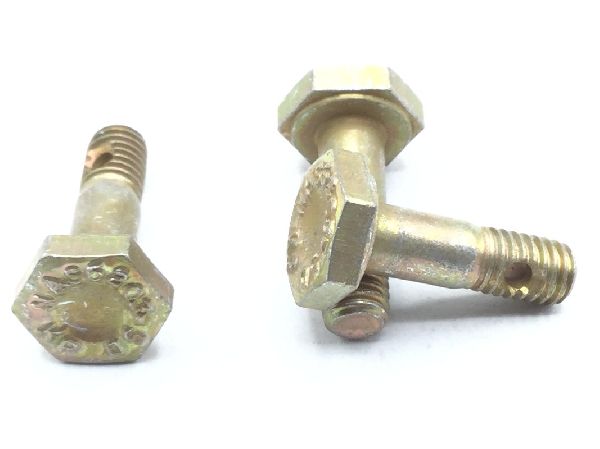

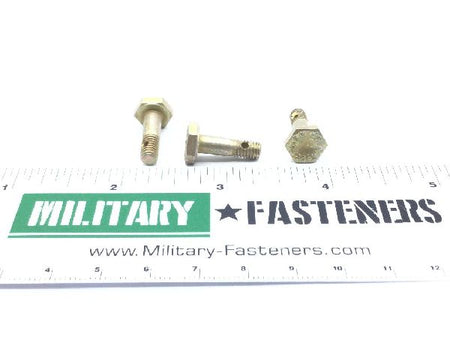

NAS6603-28 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp e4340 or steel comp 4340 or steel comp 8740

Surface Treatment

Class 2 federal specification single treatment response type qq-p-416

Thread Class

Fastener Length: Between 2.080 inches and 2.110 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 1.740 inches and 1.760 inches
Head Height: Between 0.110 inches and 0.125 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 81205-bacb30ne manufacturers standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.320 inches and 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
