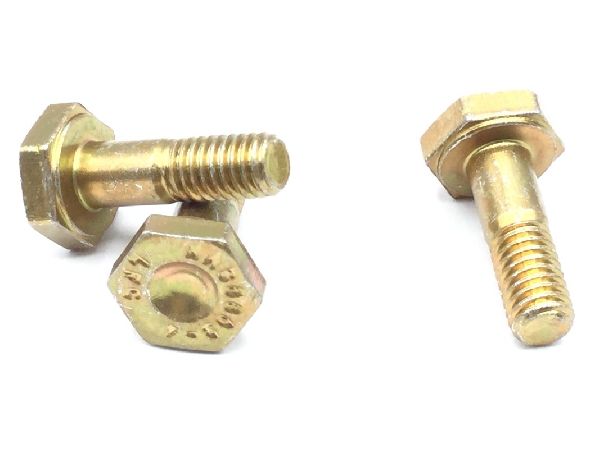

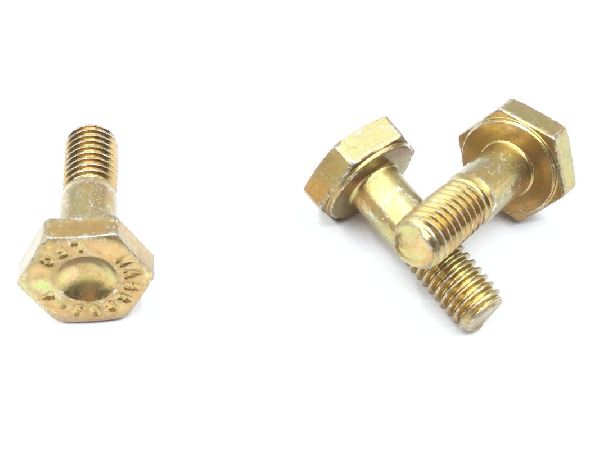

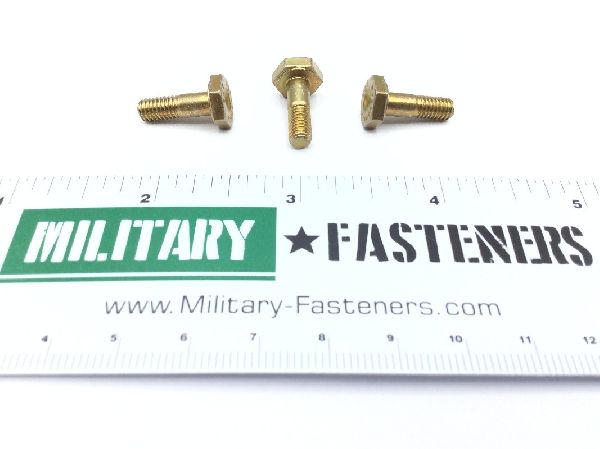

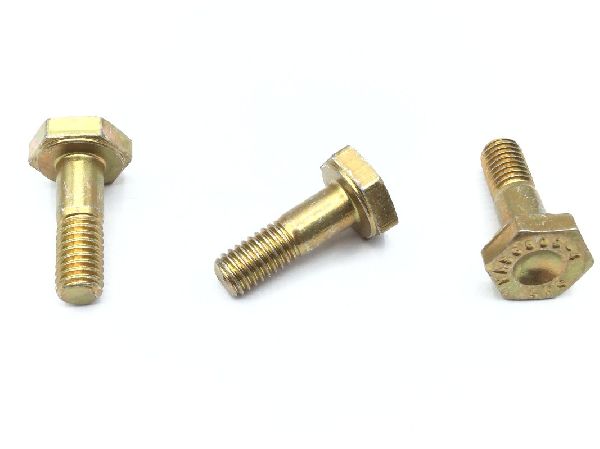

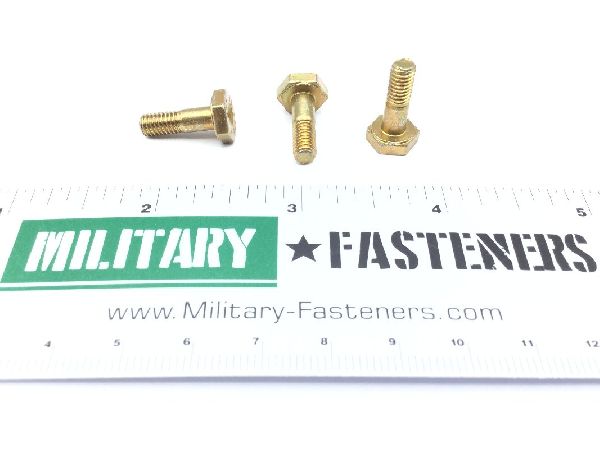

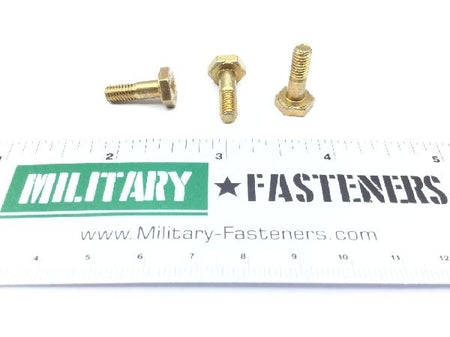

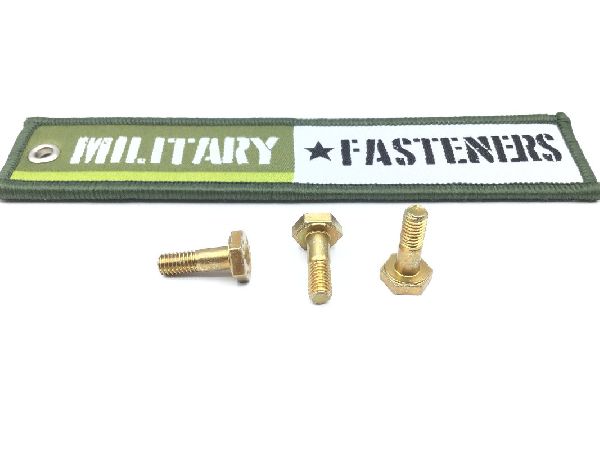

NAS6603-4 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.47

Units per Pack 25

Price per Pack $36.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $36.75

Add item to quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Criticality Code Justification: Feat
Fastener Length: Between 0.580 inches and 0.610 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.240 inches and 0.260 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 military specification 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Special Features: The shear bolt is a non-nuclear item but has close tolerance fit requirements
Specification Data: 80205-nas6603 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.320 inches and 0.370 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
